Chapter 1

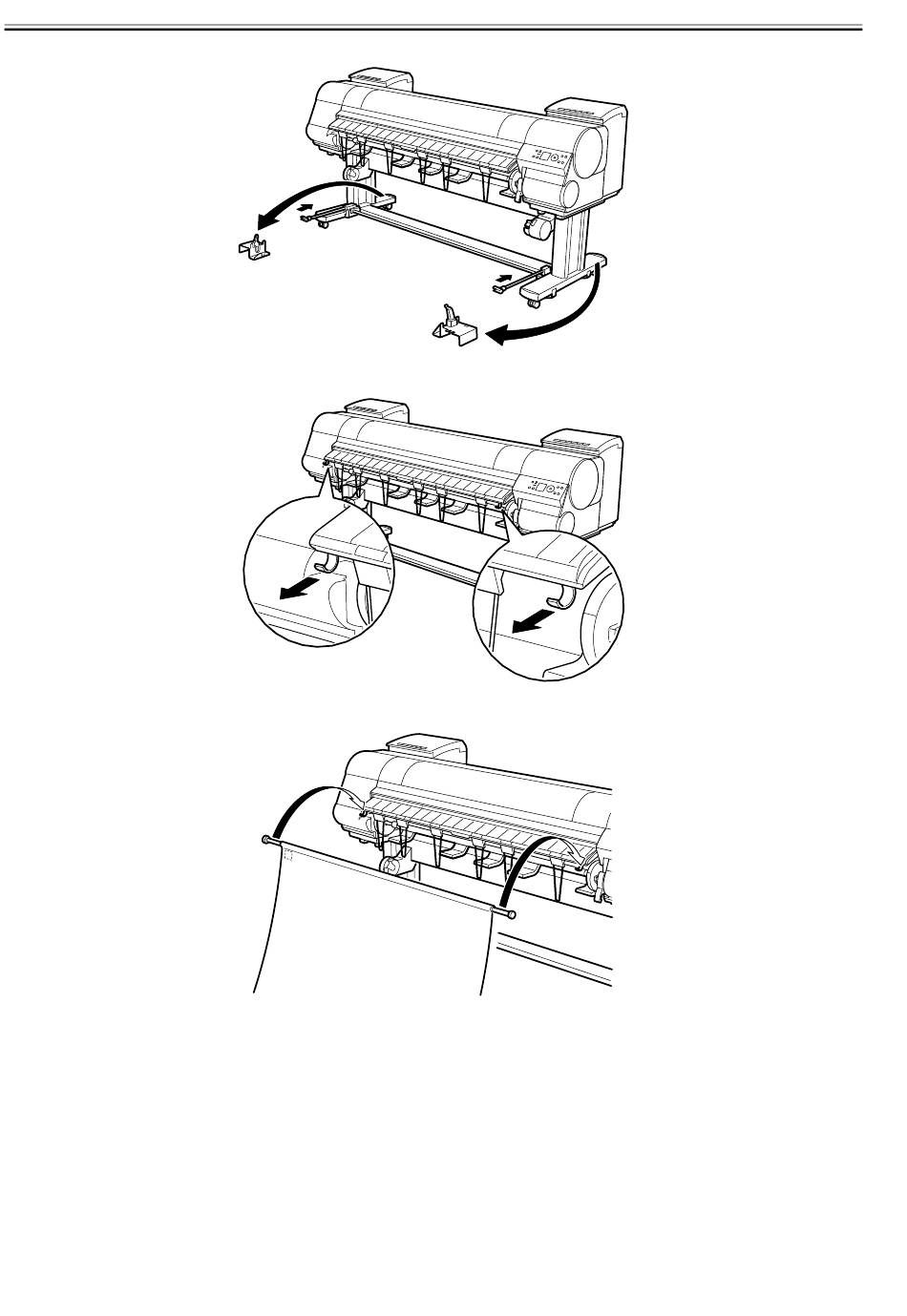

3) Store the left and right Basket Rods. Next, remove the Rod Holder Adapter, leaving the Rod Holder attached, and put it in front of the printer.
4) Pull out the Basket Hooks from the left and right side of the Ejection Guide.
5) Attach the Basket Rod to the Basket Hooks so that the white tag of the Basket Cloth is on the left side.
1-46
F-1-25
F-1-26
F-1-27
