Chapter 4

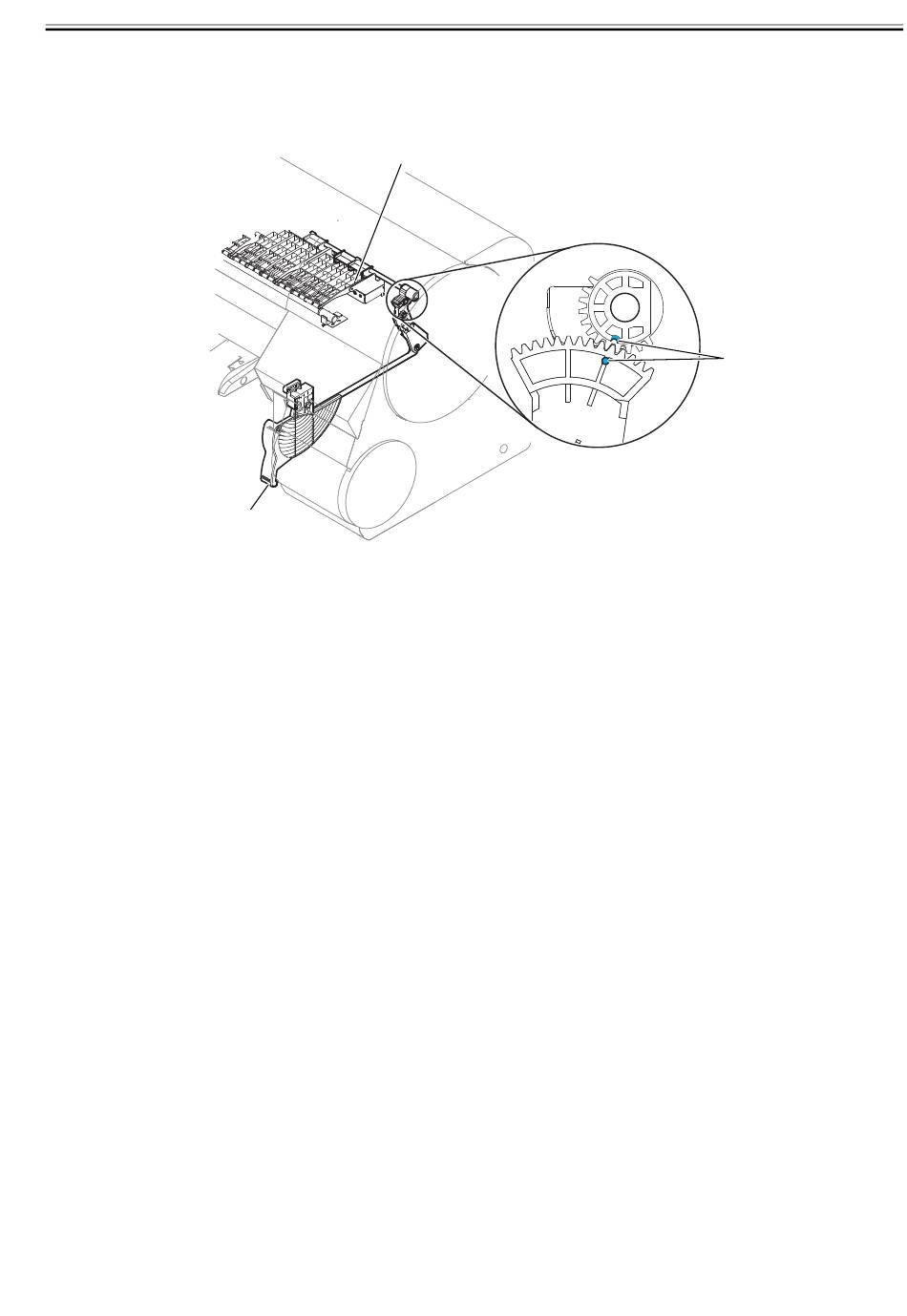

m) Release lever
Removing the release lever
1) To remove release lever [1], remove the purge unit and then remove the release lever. To do so, keep pinch roller [2] pressurized to ease the work of phase
alignment during gear installation.
Reinstalling the release lever
1) To install the release lever, align the gear of the release lever with mark [3] (phase) in the receiving gear.
[2]
[3]
[1]
F-4-23
4-13
