4.3.11 Linear Encoder

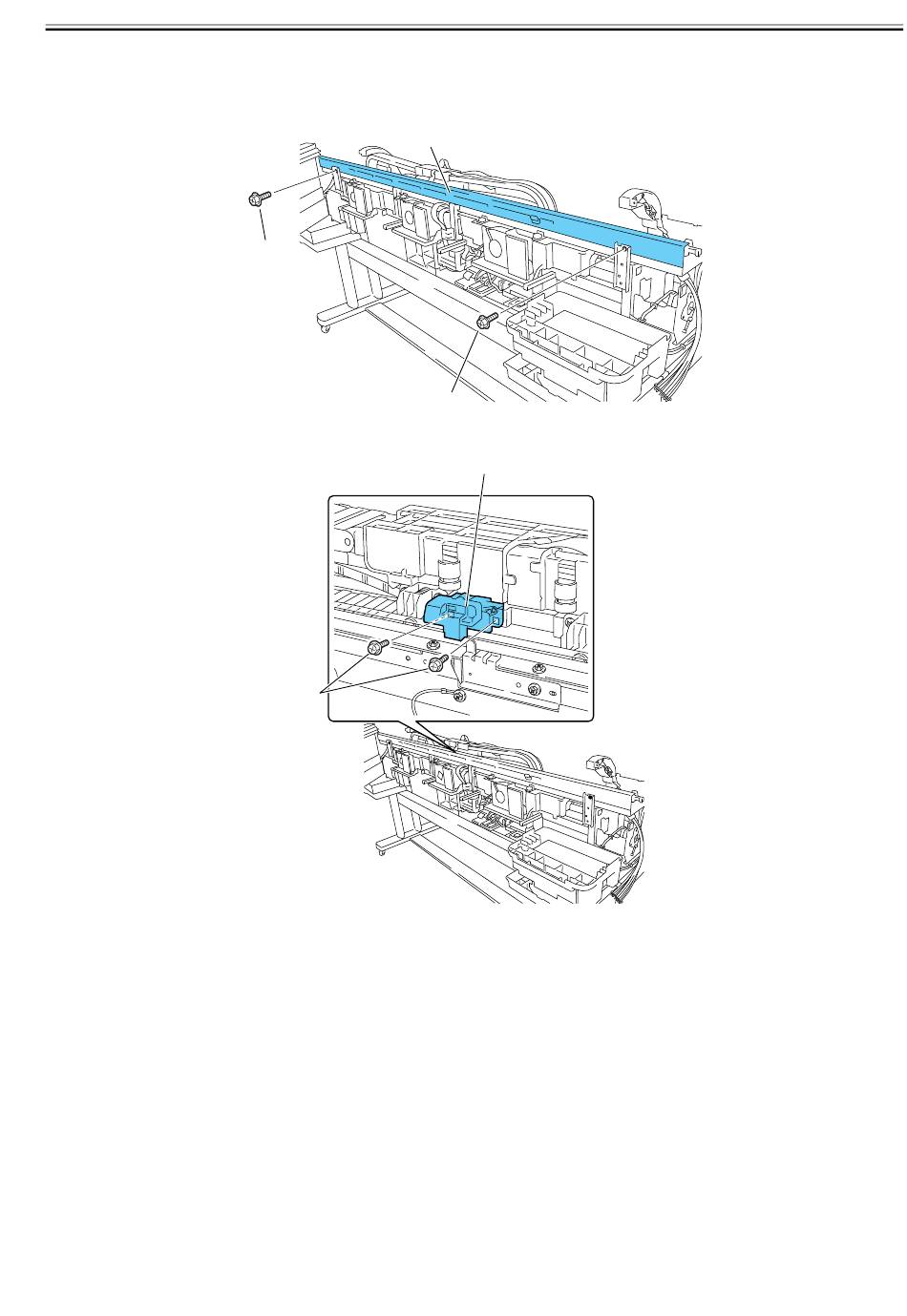

a) Removing the linear encoder
1) Move the carriage to above the platen.
2) Remove two screws [1] and upper rear stay [2].
3) Remove two screws [1] and linear encoder [2].
[2]
[1]
[1]
[1]
F-4-45
[2]
F-4-46
Chapter 4
0014-8985
4-27
