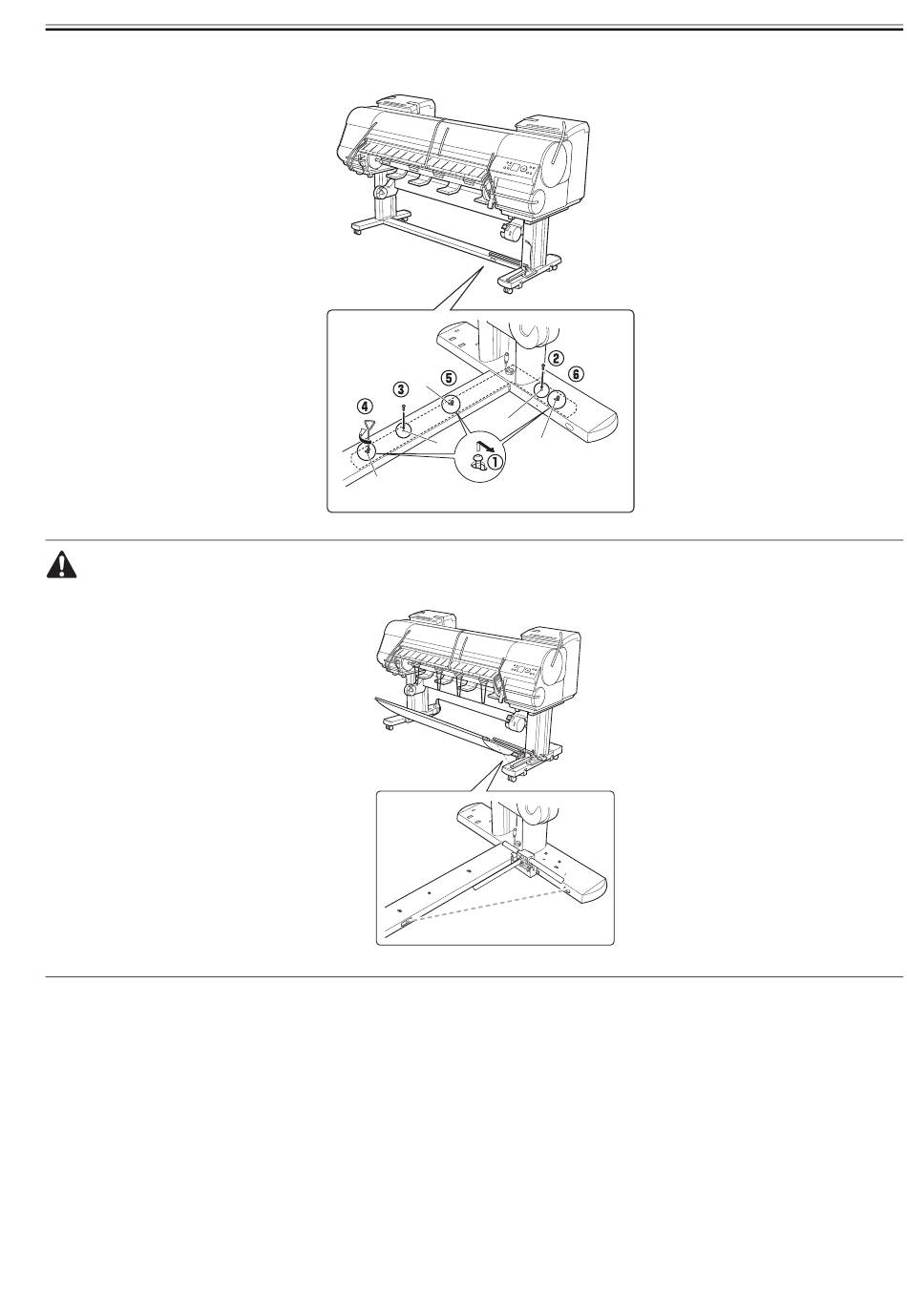

5) With the media take-up sensor unit against the underside of the bottom stand stay and the right stand leg, insert M4 hex screws in the three holes [1] and slide

the screws out of the way toward the narrow end of the protruding holes. Insert M4 hex screws in the small holes [2] as well. Than, tighten all five M4 hex screws

firmly in the order shown from (2) to (6).

Arrange the basket cloth and basket rod so they do not interfere with the media take-up sensor (indicated by the dotted line).

[1]

[2]

[1]

F-3-22

F-3-23
