Canon imagePROGRAF iPF8000S Service Manual page 149

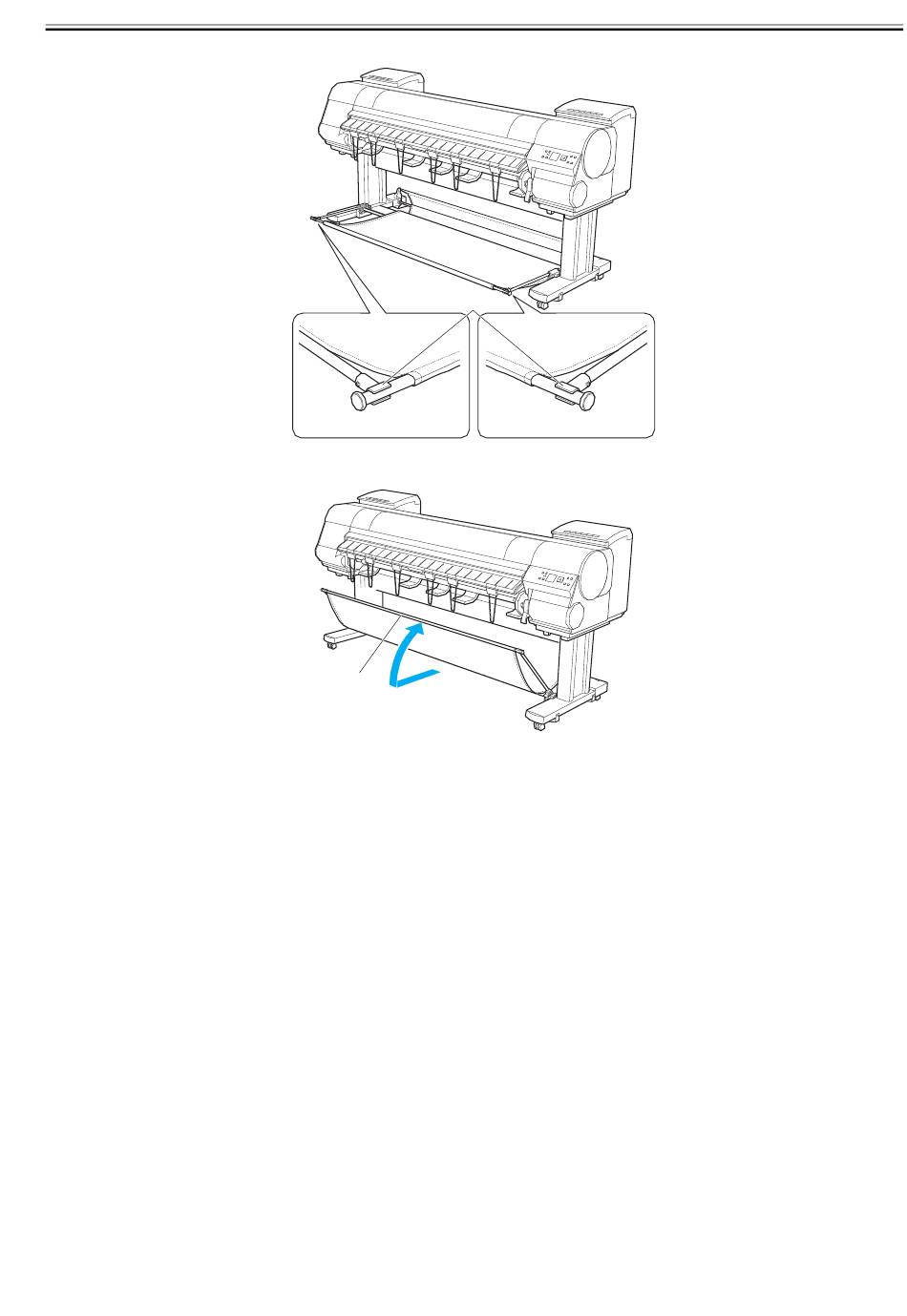

8) Attach the basket rod (at the front of the basket unit) to the tips [1] of the basket arm L and R.
9) Pull the basket rod [1] (at the front of the basket unit) all the way out and lift the rod to lock the rod in place.
[1]
F-3-34
[1]
F-3-35
Chapter 3
3-19
