Chapter 3

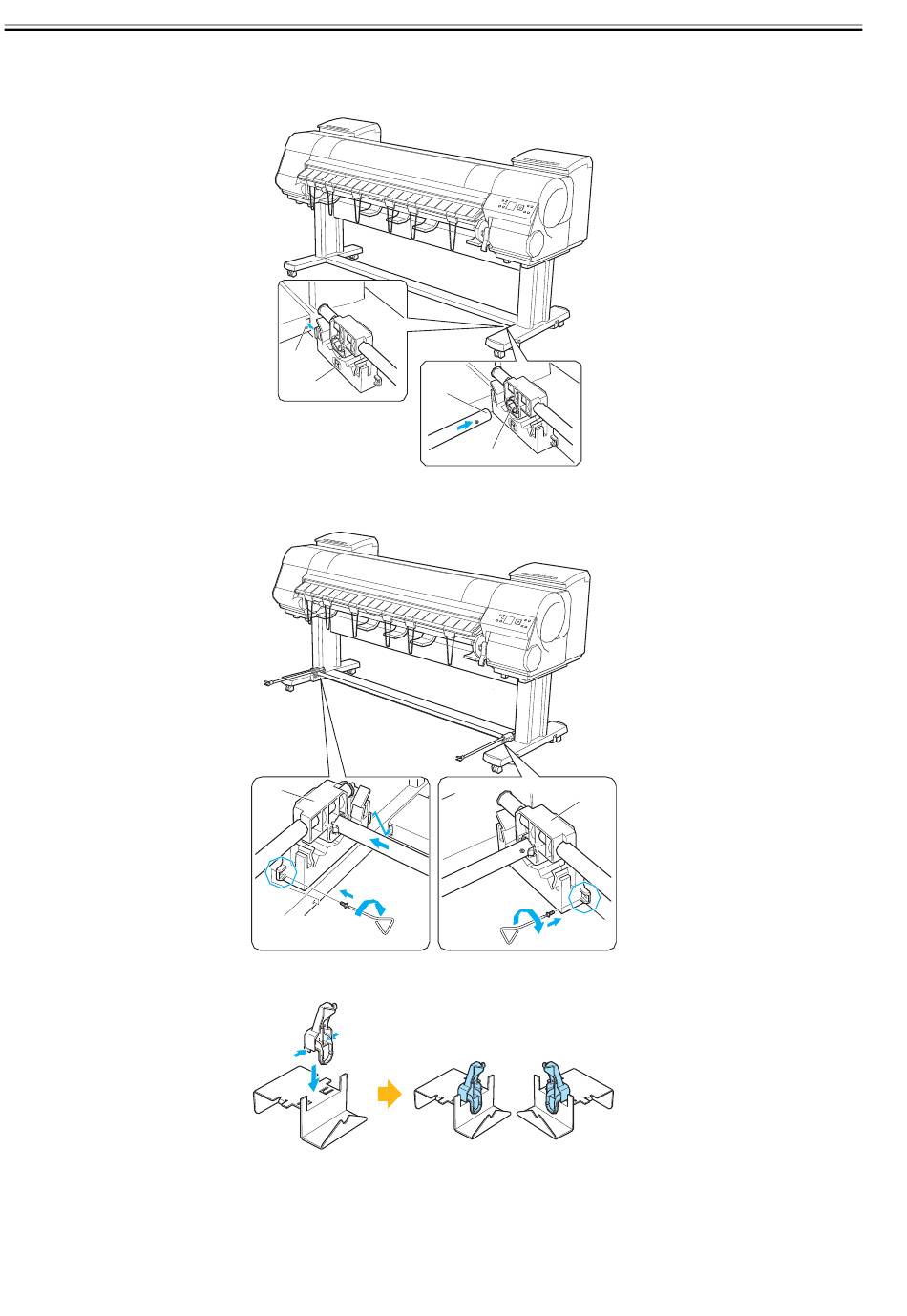

3.1.2.5 Installing the Basket

1) Insert the basket arm R [1] in the hole [2] on the right side of the bottom stand stay. Insert the right side [3] of the middle basket rod in the hole [4] of the basket
arm R.
2) Insert the left side of the middle basket rod to the basket arm L [1] [A], than push in the arm fully into the hole on the left side of the bottom stand stay [B]. Secure
the basket arm L [1] and R [2] using one M4 hex screw on each side [C].
3) Attach the rod holder to the rod holder adapter.
3-16
[2]
[1]
[3]
F-3-27
[1]
[B] [B]
[A]
[C]
F-3-28
F-3-29
[4]
[2] [1]
[C]
0014-8929
