EcoDesign Disclosures

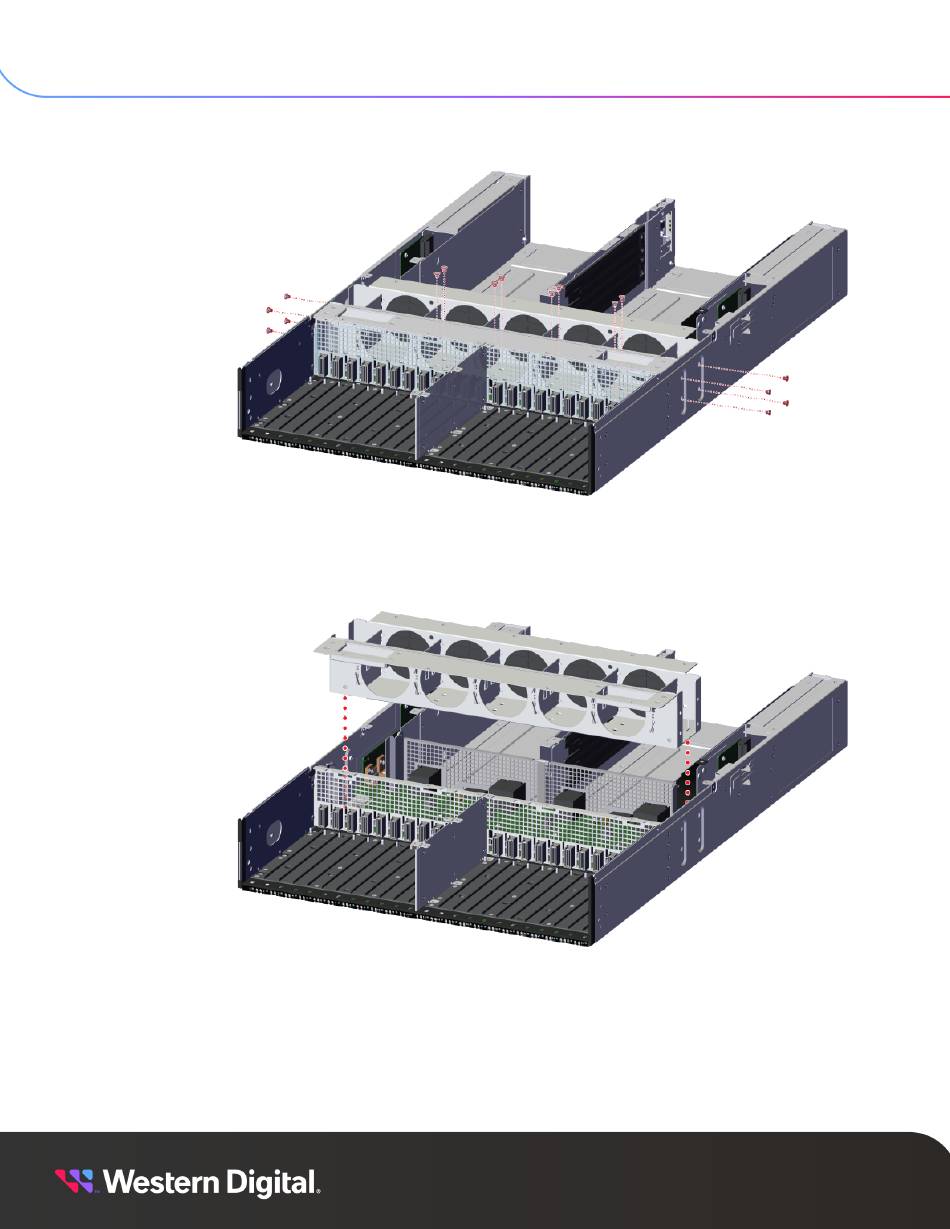

Figure 37: Fan Bracket Screw Locations
b. Lift the fan bracket to remove it from the Chassis:
Figure 38: Fan Bracket Removal
Step 17 :
Remove the IOM bulkhead.
a. Using a T7 Torx screwdriver, remove the two (2) screws from inside the bay for IO Module
(IOM) B:
1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
23
