EcoDesign Disclosures

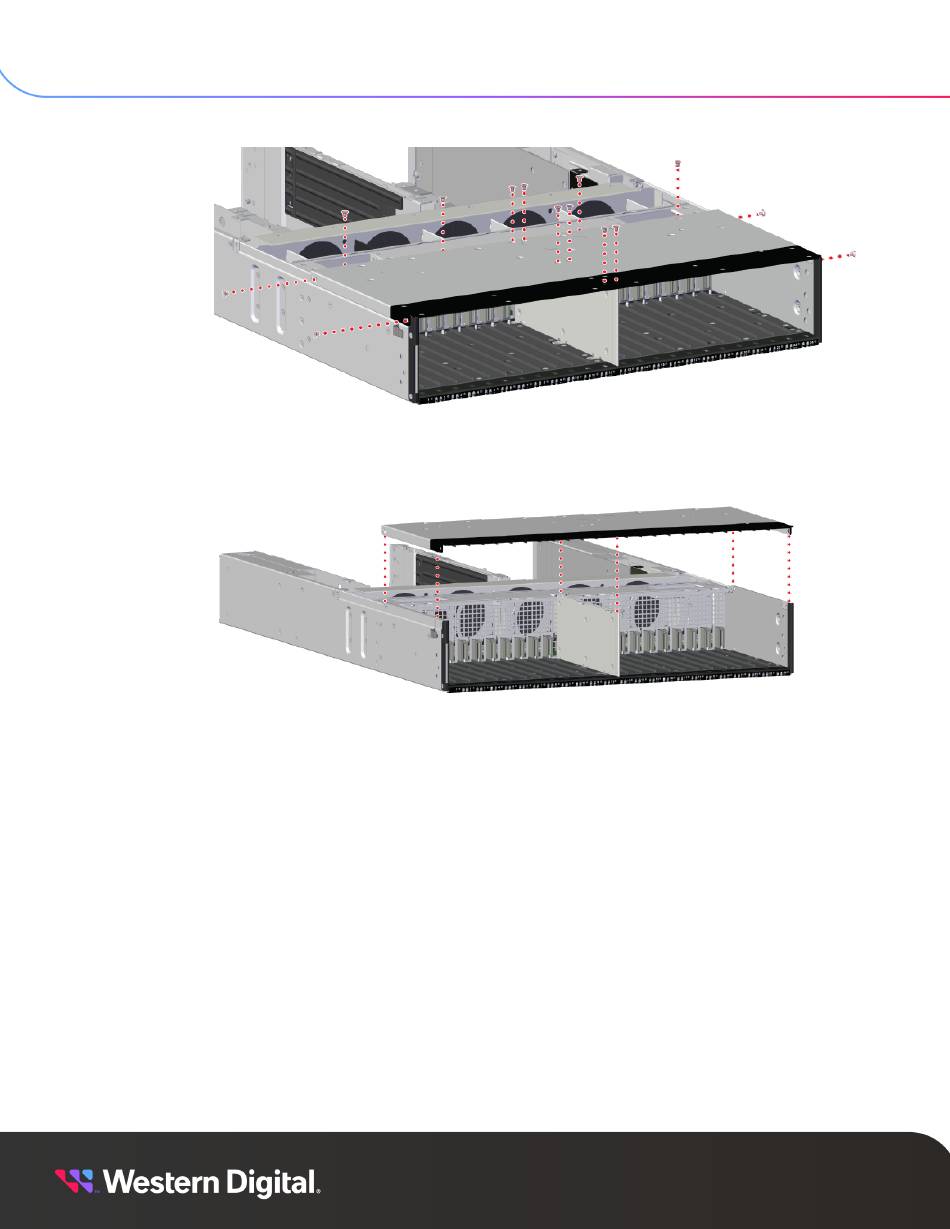

Figure 31: Top Cover Assembly Screw Locations
b. Lift the top cover assembly to remove it from the Chassis:
Figure 32: Top Cover Assembly Removal
Remove the rear system LED PCBA.
Step 15 :
a. The rear system LED PCBA is located behind an access panel on the center divider of the
IO Module (IOM) compartment. Using a T7 Torx screwdriver, remove the three (3) screws
holding the panel to the Chassis:
1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
