EcoDesign Disclosures
b. Carefully pull the Chassis out of the rack. The chassis will slide out of the rails until the
locking tabs on the side of the chassis engage and stop the chassis from being pulled out
further.
c. Depress the locking tabs on the sides of the chassis to allow it to be removed from the rails.

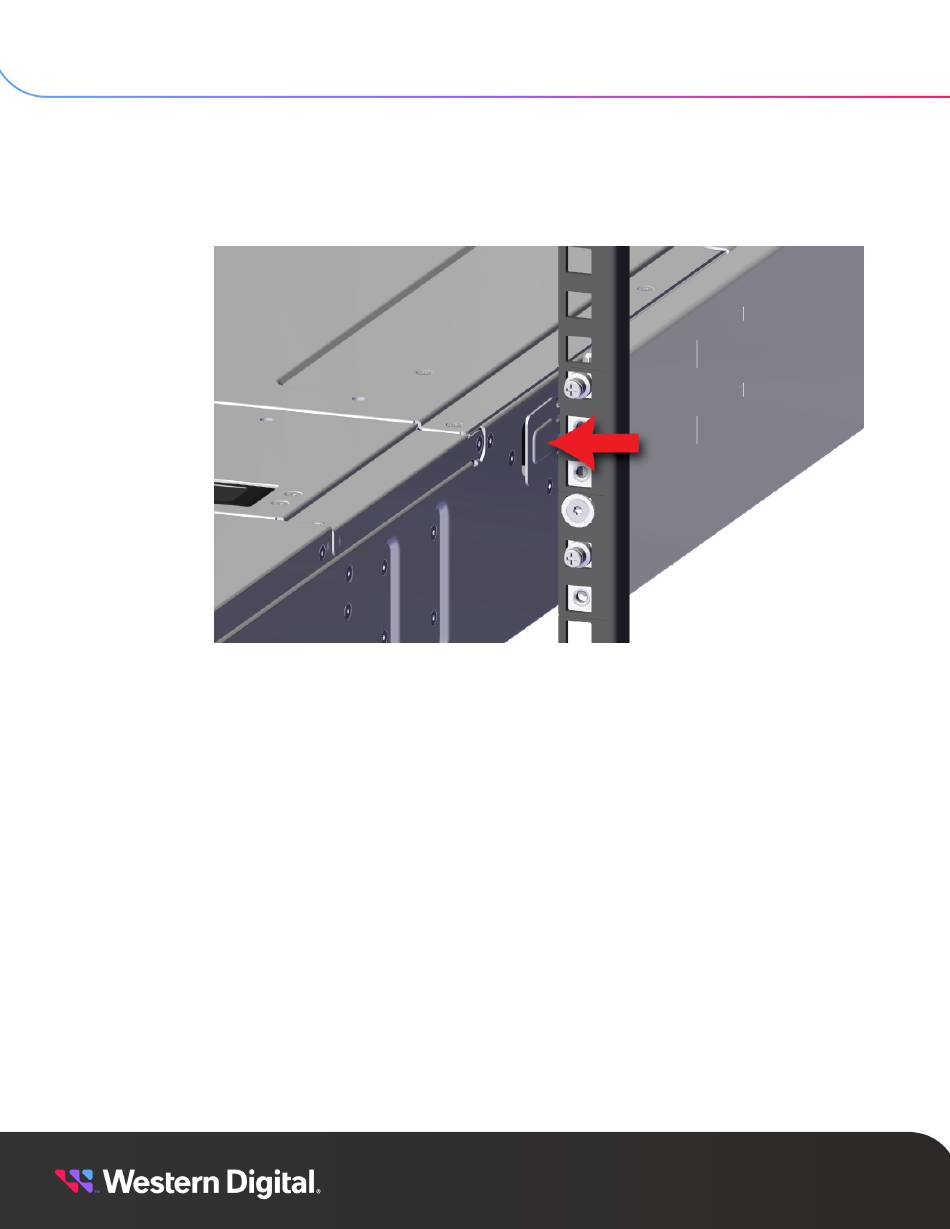

Figure 14: Locking Tabs
d. Continue sliding the chassis out of the rack and ensure extra care is taken to support the
weight of the Chassis when the Chassis is clear of the rack mount rails.
1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
11
