Hardware Installation and Reference Guide
7

Appendix

7.1

Connectors and Media

5000BASE-T/2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T port
The 5000BASE-T/2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T port supports five kinds
of adaptive speeds and supports the automatic MDI/MDIX crossover function under at
these five kinds of speeds.
Compliant with IEEE 802.3bz, the 5000BASE-T/2500BASE-T port requires at least Category
6 STP with a maximum distance of 100 meters. Category 6, 6A, and 7 STPs are
recommended.
Compliant with IEEE 802.3ab, the 1000BASE-T port requires 100-ohm Category 5/5e UTP
or STP with a maximum distance of 100 meters.
The 1000BASE-T port requires all four pairs of wires be connected for data transmission.
The following figure shows the four pairs of wires for the 1000BASE-T port.

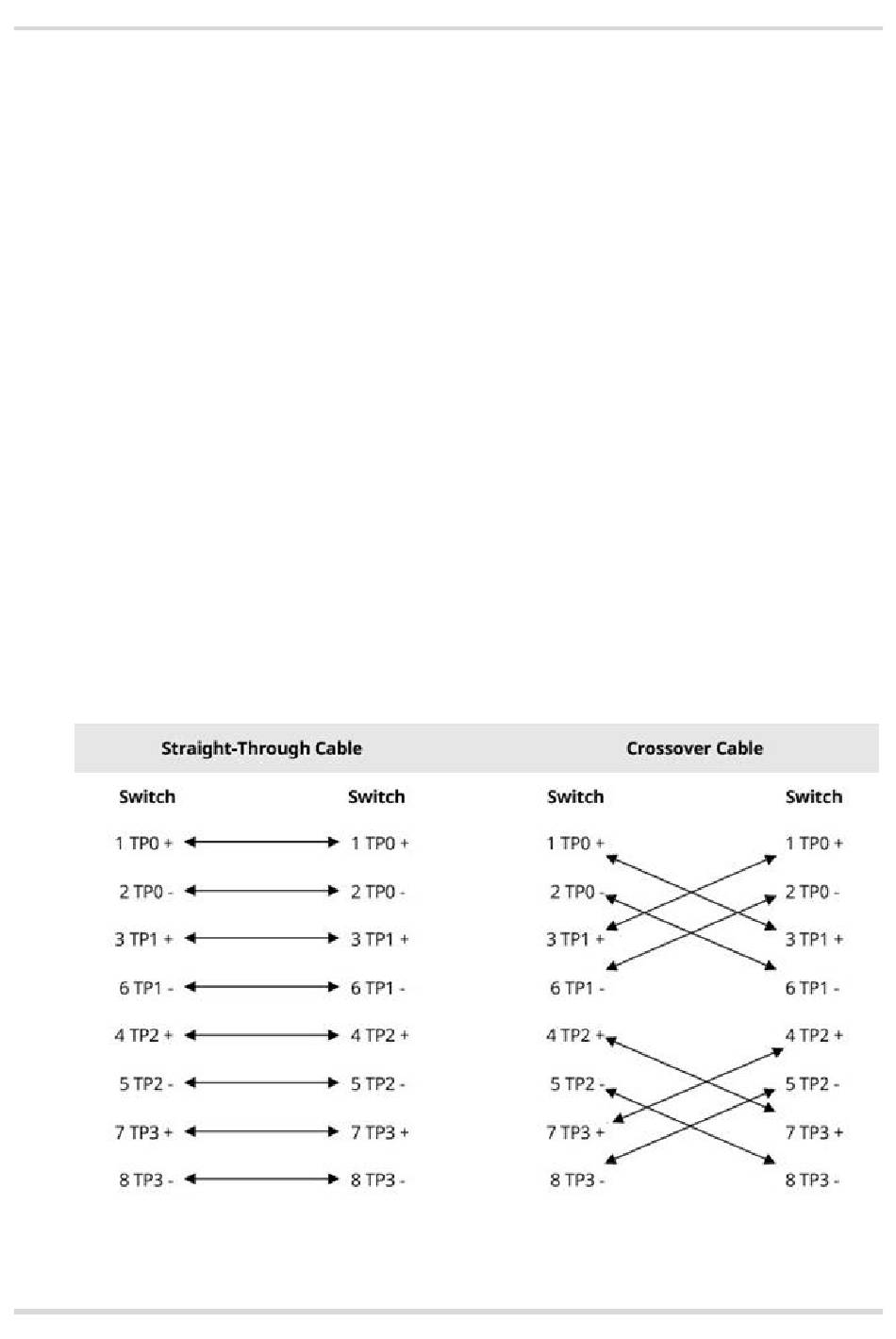

Figure 7-1
1000BASE-T Twisted Pair Connections
39
