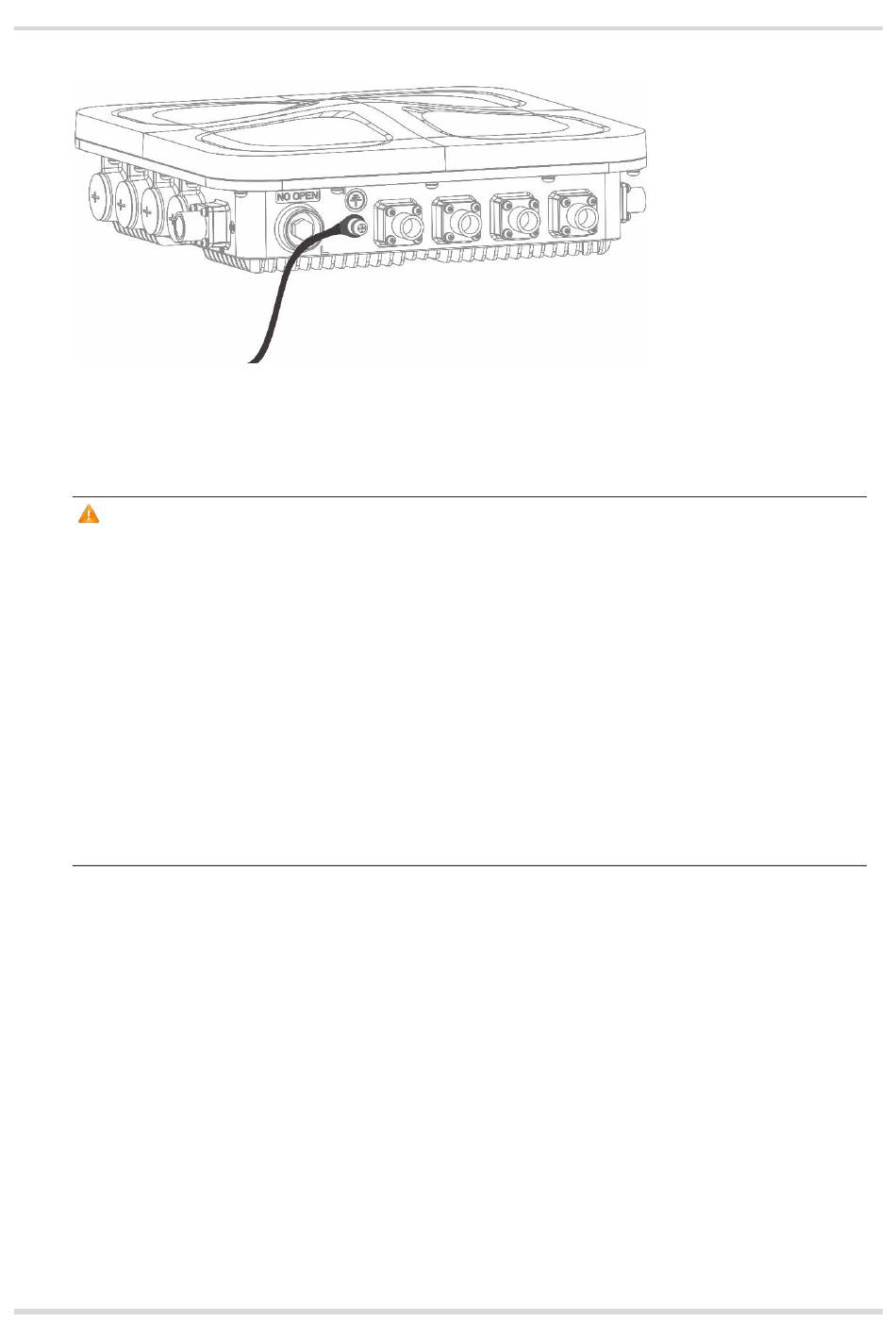

Figure 3-9 Connecting the Ground Cable
3.6.2

Connecting the Network Cable

Caution
 Ensure that the crystal connector of the network cable is properly inserted into the AP.
If not, the crystal connector may be damaged when waterproof PG connector is
installed.
 When removing the network cable, remove the waterproof PG connector and then the
crystal connector connected with the AP.
 Use a shielded network cable and ensure that the diameter of the network cable is
within the range of 6.6 mm to 8.6 mm.
 It is recommended that the network cable for power supply to external devices do not
exceed 15 m and the voltage at the PoE end is greater than 48 V. Alternatively, adopt
AC power supply.
(1) Based on the distance from the AP to the power supply terminal, cut the network cable
to a proper length and pass it through the support.
(2) Pass the network cable with a crystal connector through the waterproof PG connector
based on the sequence shown in the following figure.
