Installing the Device

3.4.1

Installing the Support for Wall-mounted Installation

Use four M6 expansion screws (hole of 105 mm × 65 mm) to fix the support on the wall
with the TOP label facing up.

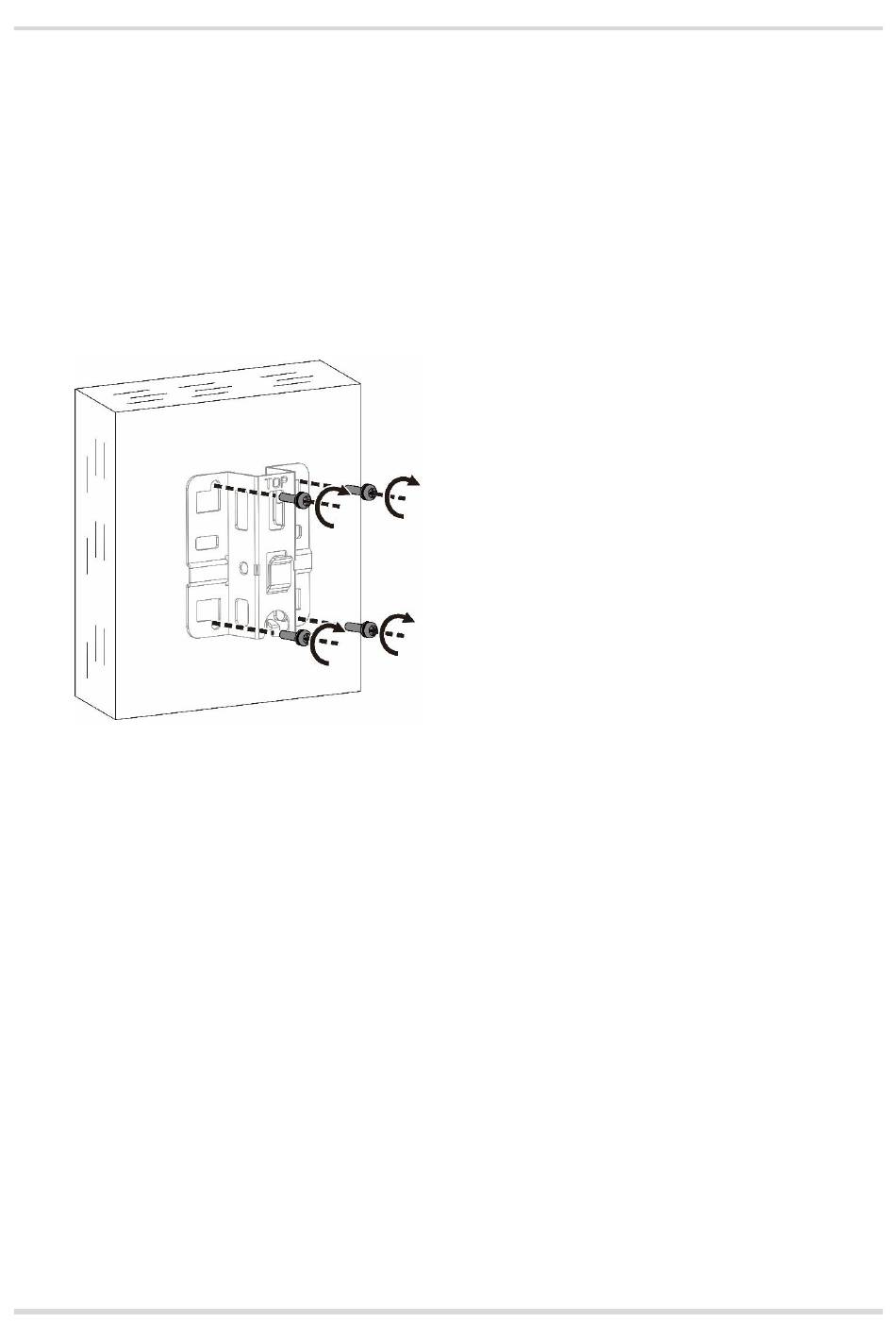

Figure 3-2 Installing the Support for Wall-mounted Installation
3.4.2

Installing the Support for Pole-mounted Installation

Pass two hooks through the opening groove of the support and install them on the pole
with the TOP label facing up.
