Hardware Installation and Reference Guide
7

Appendix

7.1

Connectors and Media

1000BASE-T/100BASE-TX/10BASE-T port

The 1000BASE-T/100BASE-TX/10BASE-T port is a 10/100/1000 Mbps auto-sensing port
that supports auto MDI/MDIX Crossover.
Compliant with IEEE 802.3ab, the 1000BASE-T port requires 100-ohm Category 5/5e UTP
or STP with a maximum distance of 100 meters.
The 1000BASE-T port requires all four pairs of wires be connected for data transmission.

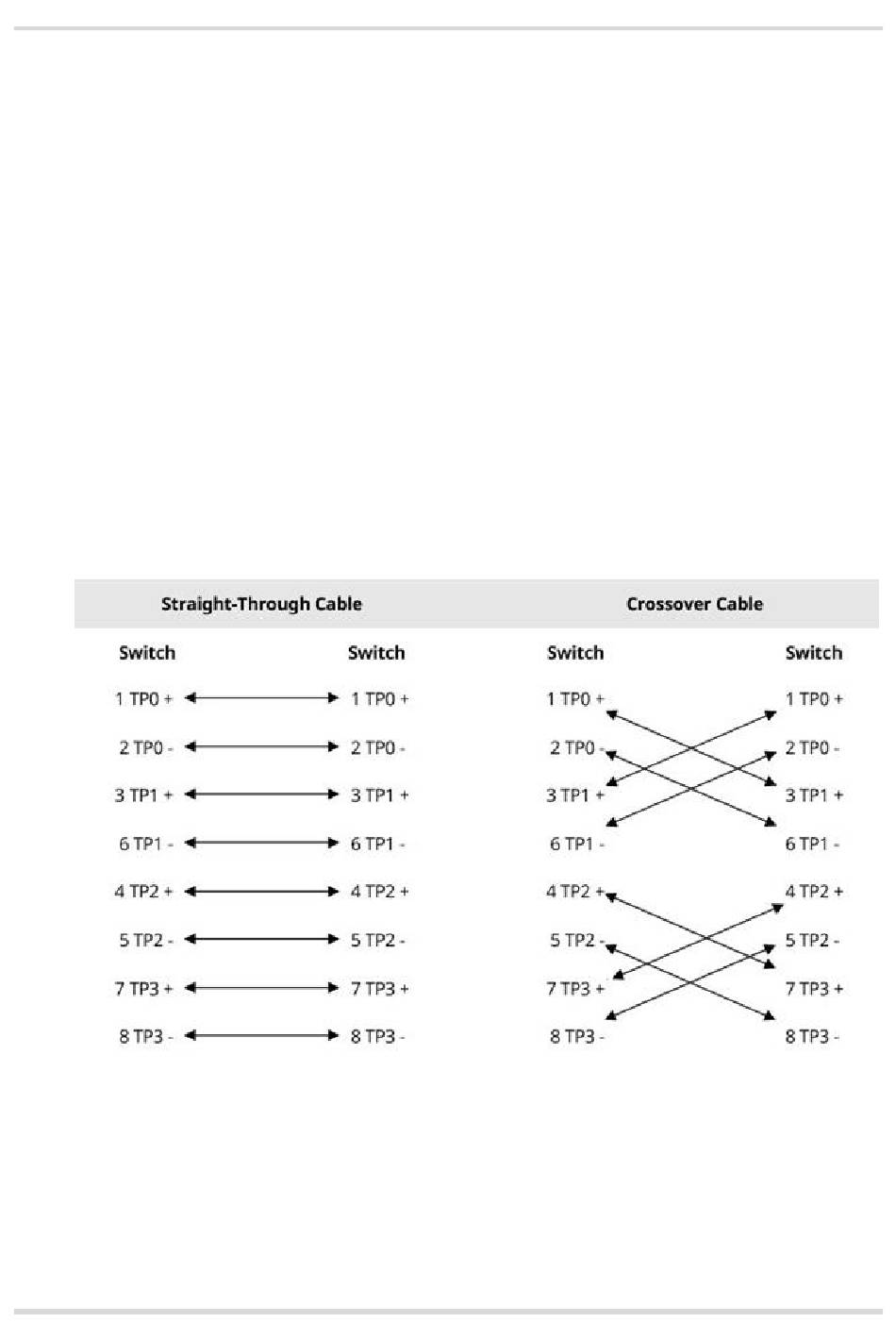

The following figure shows the four pairs of wires for the 1000BASE-T port.
Table 7-1 1000BASE-T Twisted Pair Connections
10BASE-T uses 100-ohm Category-3/4/5 UTP or STP, and 100BASE-TX uses 100-ohm Category-5 UTP or
STP for connections. Both support a maximum length of 100 meters. Both support a maximum length of
100 meters. The following table shows 100BASE-TX/10BASE-T pin assignments.
