Figure 3-10
(3) Insert the crystal connector of the network cable into the network port on the AP and
tighten the waterproof PG connector based on the sequence of parts B, C, D, and E.
The network cable is installed.
(4) Paint waterproof cement and wrap waterproof tapes on the PC connector to ensure
waterproof.
3.6.3

Connecting the Optical Fiber

Caution
The diameter of the actually used LC-LC optical fiber must be within the range of 2.5 mm
to 3.5 mm. A too thick or too thin cable cannot ensure the waterproof performance.
(1) Select an LC-LC optical fiber whose diameter is 2.7±0.2 mm and pass the optical fiber
through the waterproof connector based on the sequence shown in the following
figure.

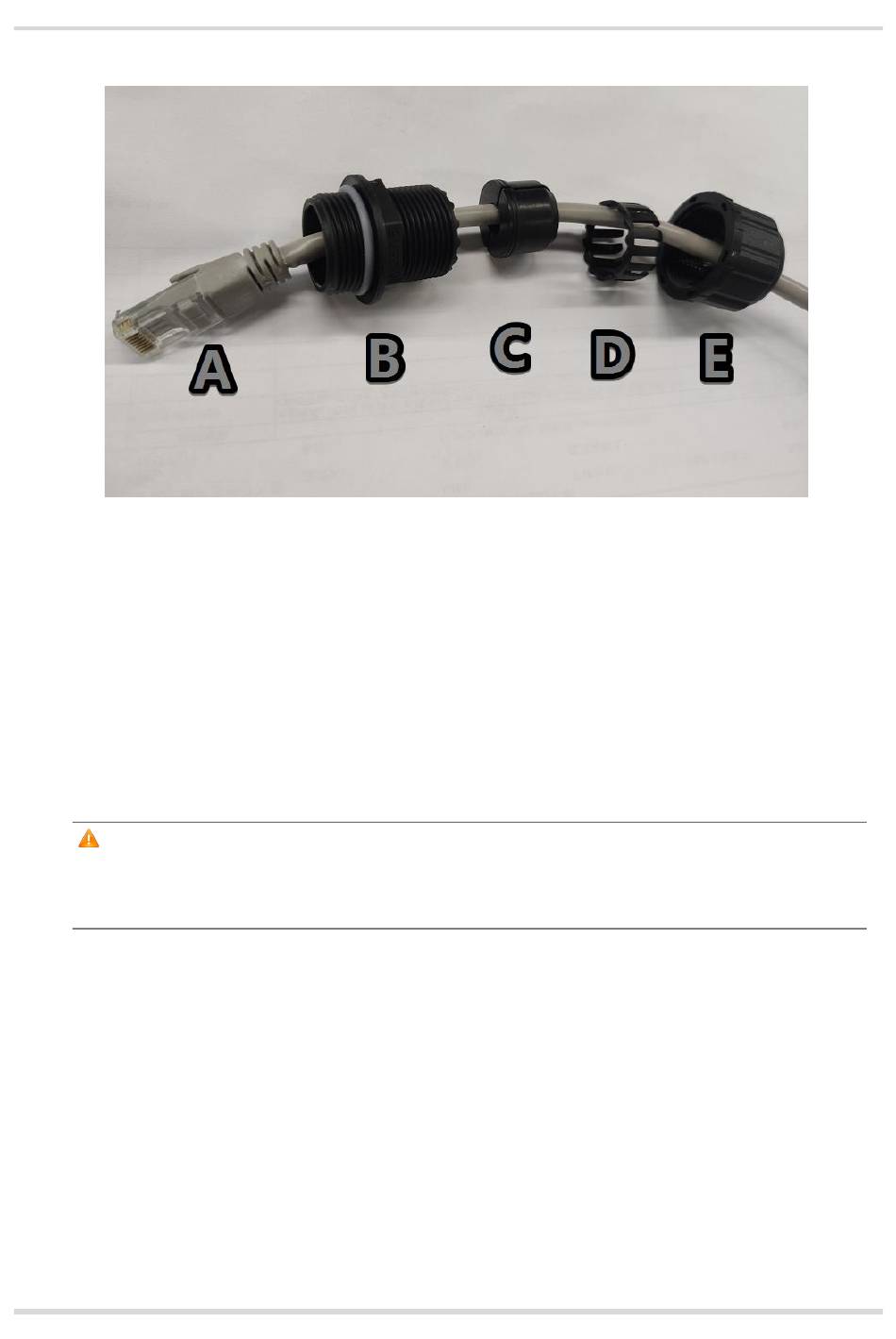

Passing the Network Cable Through the Waterproof PG Connector
