part should not touch heat sources, sharp corners, or sharp edges. If heat sources
cannot be avoided, high-temperature cables should be used.
When screw threads are used to fasten cable terminals, the bolt or screw must be
○
tightly fastened, and anti-loosening measures should be taken, as shown in
7-7.

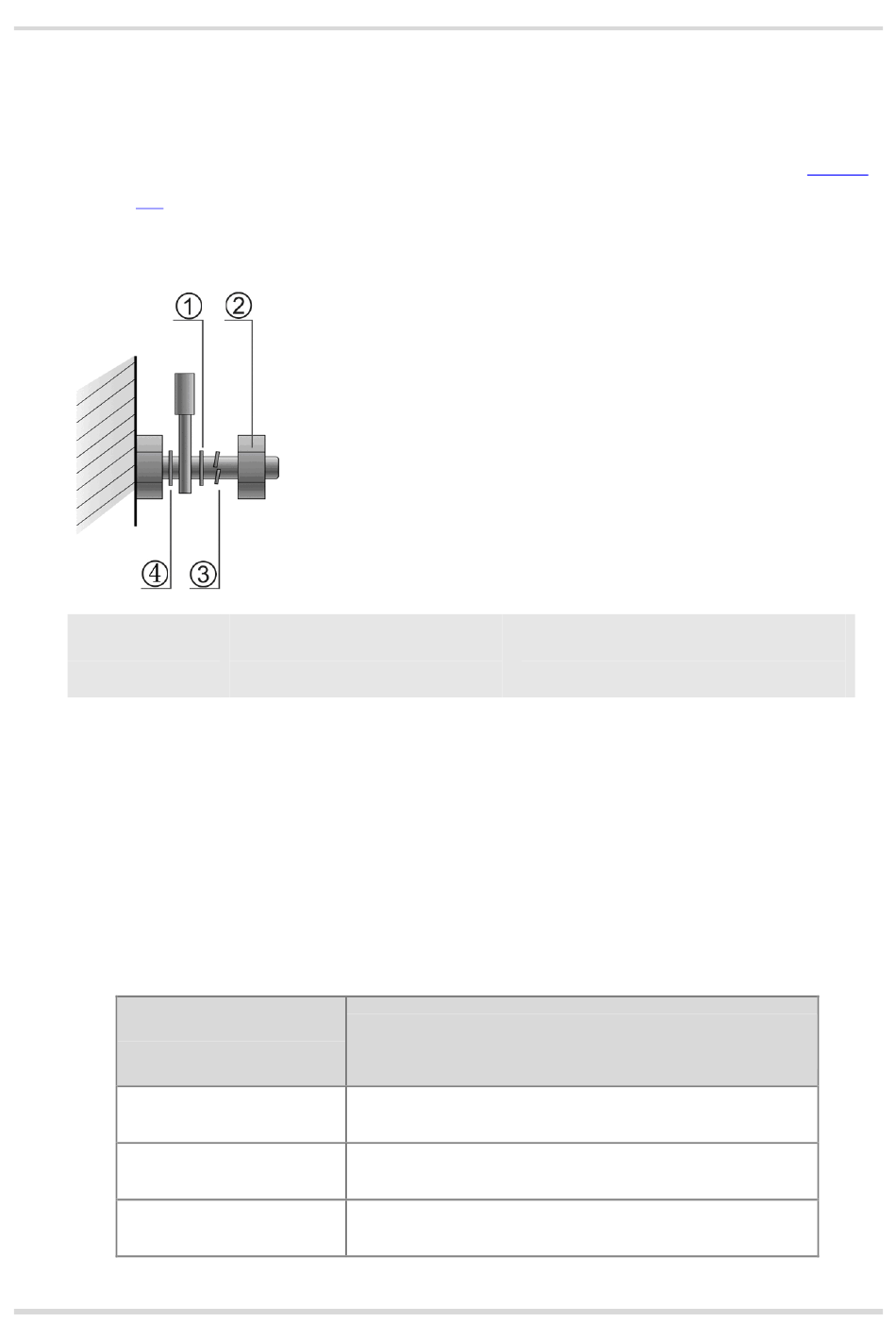

Figure 7-7 Fastening Cable Lugs
Description:
Hard power cords should be fastened in the terminal connection area to prevent
○
stress on terminal connection and cable.
Do not use self-tapping screws to fasten terminals.
○
Power cables of the same type and in the same cabling direction should be bundled
○
up into cable bunches, with cables in cable bunches clean and straight.
Bundle up cables using cable ties based on the following table.
○
Cable Bunch Diameter
(mm)
10
10–30
30
① Flat washer
② Nut
Distance Between Every Binding Point (mm)
80–150
150–200
200–300
45
③ Spring washer
④ Flat washer
