- Page 1 RG-AP130(L) Series Access Point Hardware Installation and Reference Guide V1.0...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: http://www.ruijienetworks.com/ Service Email: service_rj@ruijienetworks.com ...
-
Page 4: Product Overview

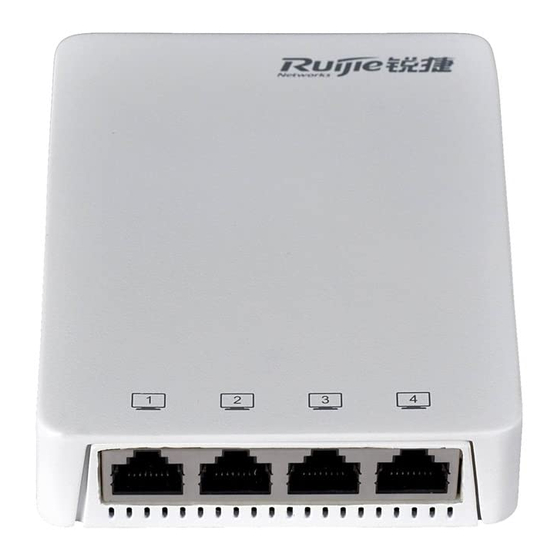

· 1 Product Overview Ruijie RG-AP130(L) Wall AP is designed for wireless deployment in hotels, offices, residential buildings and settings alike. The wall-mountable AP has the same size as a standard 86-type faceplate with integrated Ethernet and VoIP ports. Featuring a concise design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design. - Page 5 Hardware Installation and Reference Guide Product Overview Transmit Power · 1 dBm Adjustment Dimensions 116mm x 86mm x 42mm (W x D x H) Weight 0.23kg Front: Four 10/100Base-T LAN ports Side: 1 RJ-45 Voice/PoE pass-through port (RJ-11 combo) Service Ports Rear: One 10/100/1000Base-T WAN port 1 RJ-45 Voice/PoE pass-through port (RJ-11 combo)
-
Page 6: Product Image
Hardware Installation and Reference Guide Product Overview Rogue AP detection and countermeasure Support · Dynamic ACL assignment Support RADIUS Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP) Support IPv4 address Support IPv6 CAPWAP tunnel Static IP address or DHCP ICMPv6 Support IPv6 address... -
Page 7: Led Indicators
Hardware Installation and Reference Guide Product Overview · Note 1. Reset button 4. Keyhole 2. Lock Slot 5. Pass Through port on the side 3. Micro USB management port (Console) 1.3 LED Indicators Figure 1-3 Indicator on the AP State Frequency Meaning The AP is powered off. -
Page 8: Preparing For Installation
Rated current: 0.25A When powered through PoE, the AP can be used with Ruijie’s other products supporting 802.3af PoE. 1.5 Cooling Solution The AP adopts fanless design. Because it is installed in an 86-style faceplate on the wall, to guarantee airflow for proper ventilation, keep the device uncovered. -
Page 9: Temperature And Humidity
Hardware Installation and Reference Guide Preparing for Installation The installation site shall be selected according to network planning and features of communications equipment, and · considerations such as climate, hydrology, geology, earthquake, electric power, and transportation. 2.3 Temperature and Humidity Required temperature and humidity are as follows: ... -
Page 10: Installation Tools
Hardware Installation and Reference Guide Installing the Access Point another. Conducted interference often affects the power supply of the equipment, but can be controlled by a filter. · Radiated interference may affect any signal path in the equipment, and is difficult to shield. ... -
Page 11: Installation Flowchart
Hardware Installation and Reference Guide Installing the Access Point · 3.1 Installation Flowchart 3.2 Before You Begin To ensure normal operation and a prolonged useful life of the equipment, observe the following safety precautions: Install the device in a well-ventilated location. ... - Page 12 Hardware Installation and Reference Guide Installing the Access Point Do not open the enclosure when the AP is working. · Fasten the device tightly. 3.3 Installing the Access Point Disconnect the device before install or move it. Make sure that the screws are of fine quality. Be sure that the equipment is installed in a place where it is easy to be observed.
- Page 13 Hardware Installation and Reference Guide Installing the Access Point · Align screw holes on both sides of the device over those on the faceplate. And then tighten screws with a screwdriver. Figure 3-3 Tighten Screws with a Screwdriver Install the plate cover in the way as shown in the following figure. Figure 3-4 Install the Cover A white cover is provided for each AP.
-
Page 14: System Debugging
Hardware Installation and Reference Guide System Debugging · 4 System Debugging 4.1 Setting up a Debugging Environment Use PoE to power the AP. PoE power supply To use a PoE device, make sure the peer end supports the IEEE 802.3af PoE standard. Then, connect the Ethernet cable to the uplink port (WAN) on the AP. -
Page 15: System Reset
Hardware Installation and Reference Guide System Debugging 4.1.1.2 Checking after power-up · After powering up, it is recommended that you check the following items to ensure normal operation of the AP. The LED on a normally-working AP gets blinking green first. After 60s, the LED turns solid green. Figure 4-2 LED on the AP 4.1.2 Reset/Restore Default Settings The reset button is hidden in a hole and used by technical support personnel. -
Page 16: Monitoring And Maintenance
Hardware Installation and Reference Guide Monitoring and Maintenance · 5 Monitoring and Maintenance 5.1 Monitoring You can observe the LED to monitor the AP in operation. Fast blinking green followed by solid green: The AP is being initialized and is operational. ... -
Page 17: Troubleshooting Flowchart
Hardware Installation and Reference Guide Troubleshooting · 6 Troubleshooting 6.1 Troubleshooting Flowchart 6.2 Troubleshooting LED does not light up after the AP is powered on Verify that the power source is IEEE 802.11af compliant. And then verify that the cable is connected properly. Orange LED blinks after the Ethernet cable is connected Verify that the device at the other end of the Ethernet cable is working properly. -
Page 18: Appendix A Connectors And Media
Hardware Installation and Reference Guide Appendix A Connectors and Media · Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
