- Page 1 RG-AP680-O(V3) Wi-Fi 6 Dual-radio Access Point Scan QR Code For More Enquiry...
-

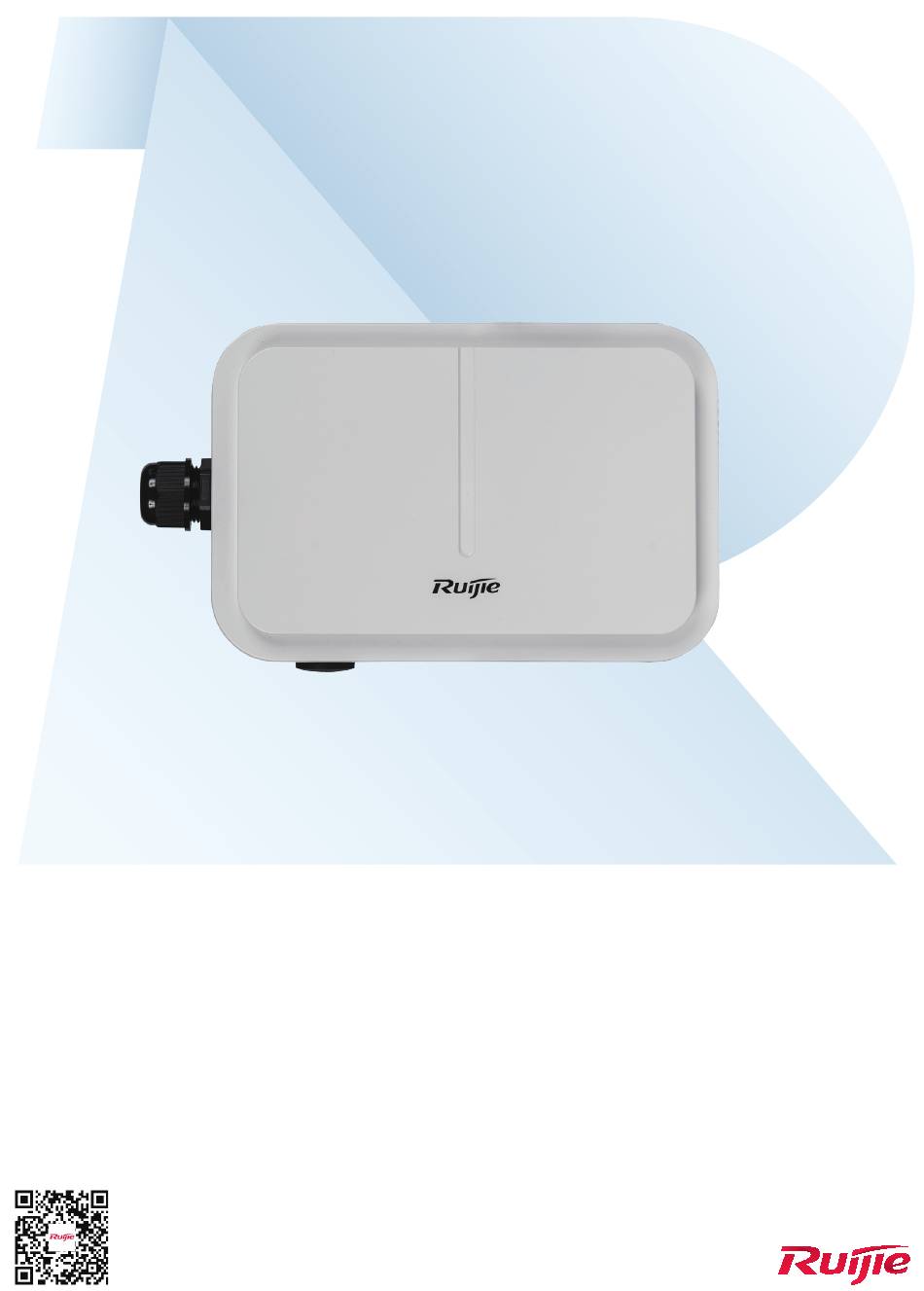

Page 2: Product Pictures
Product Pictures Product Overview The RG-AP680-O(V3) is a Wi-Fi 6 wireless access point that delivers dual radios, high performance, and enterprise- grade encryption. Its hybrid cloud management mode and high-density access design allow the RG-AP680-O(V3) to be flexibly deployed in high-quality outdoor network scenarios, including outdoor hotspots such as parks and streets in smart cities, sports field scenarios in the education industry, and scenarios related to energy and rail transportation industry. -
Page 3: Product Highlights
Product Highlights Ultra-High Flexible High Security Performance Networking and Reliability Ultra-High Performance ● IEEE 802.11k/v/r support and roaming stickiness optimization, achieving seamless user roaming ● Dual-band design (2.4 GHz + 5 GHz), four spatial streams, ● Rich IoT features: Bluetooth 5.1, and wireless locating 1024-Quadrature Amplitude Modulation (QAM) high- High Security and Reliability speed access, up to 2.976 Gbps peak data rate, and built-... -
Page 4: Product Features
Multi-scenario Adaptability Security and Scalability The RG-AP680-O(V3) is a dual-band outdoor wireless The RG-AP680-O(V3) stands out with its exceptional wireless access point designed for outdoor scenarios such as smart network security, RF control, mobile access, QoS guarantee, cities, higher education, general education, energy, and rail and seamless roaming. - Page 5 Solution Scalability Capabilities Ruijie WIS Cloud Management Network Solution (WIS for following items: short) provides full-lifecycle cloud management network ● Network basic information: device stability, device health, services covering network procurement, planning, deployment, user stability, network signal coverage, and network acceptance, and O&M.
-
Page 6: Product Specifications
Product Specifications Hardware Specifications Hardware Specifications RG-AP680-O(V3) Four spatial streams ● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams ● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams Channels: ● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz ●... - Page 7 Hardware Specifications RG-AP680-O(V3) Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) 802.11ax...
- Page 8 Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation. Radio Frequency Performance RG-AP680-O(V3) Max.
- Page 9 Radio Frequency Performance RG-AP680-O(V3) Max. Transmit Power per Max. Receive Sensitivity Frequency Band and Protocol Data Rate Transmit Chain per Receive Chain 2.4 GHz, 802.11g 54 Mbps 20 dBm –67 dBm MCS0 25 dBm –84 dBm 2.4 GHz, 802.11n (HT20)
- Page 10 Radio Frequency Performance RG-AP680-O(V3) Max. Transmit Power per Max. Receive Sensitivity Frequency Band and Protocol Data Rate Transmit Chain per Receive Chain MCS0 25 dBm –84 dBm 5 GHz, 802.11ax (HE20) MCS11 18 dBm –54 dBm MCS0 25 dBm –81 dBm 5 GHz, 802.11ax (HE40)
- Page 11 Software Specifications RG-AP680-O(V3) IPv4/IPv6 CAPWAP Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. CAPWAP An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC.
- Page 12 When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode. and cloud modes When the AP works in cloud mode, it can be managed through Ruijie Cloud. Value-added Software The following value-added software functions can be achieved with the WIS solution (used with RG-iData-WIS and wireless controller).
- Page 13 Value-added Software RG-AP680-O(V3) Network operation analysis, such as device stability and signal coverage Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average...
- Page 14 Certifications and Regulatory Compliance Certifications and Regulatory RG-AP680-O(V3) Compliance EN 50121-1:2017 – Railway EMC Regulatory compliance EN 50121-3-2 – Railway EMC Wi-Fi Alliance: ● 2.4 GHz,5 GHz Spectrum Capabilities ● Wi-Fi CERTIFIED a, b, g, n, ac, ax (6) ● WPA2™-Enterprise 2018-04 ●...
-
Page 15: Ordering Information
● Radio 1: 2.4 GHz: two spatial streams, 2x2 MU-MIMO, peak data rate of 574 Mbps ● Radio 2: 5 GHz: two spatial streams, 2x2 MU-MIMO, peak data rate of 2.4 Gbps RG-AP680-O(V3) 802.11a/b/g/n/ac/ax, switching between Fat, Fit, and cloud modes, and 802.3at/at PoE and local DC power... -
Page 16: Warranty
Note: The warranty terms are subject to the terms of different countries and distributors. More Information For more information about Ruijie Networks, visit the official Ruijie website or contact your local sales agency: ● Ruijie Networks official website: https://www.ruijienetworks.com/ ●...
