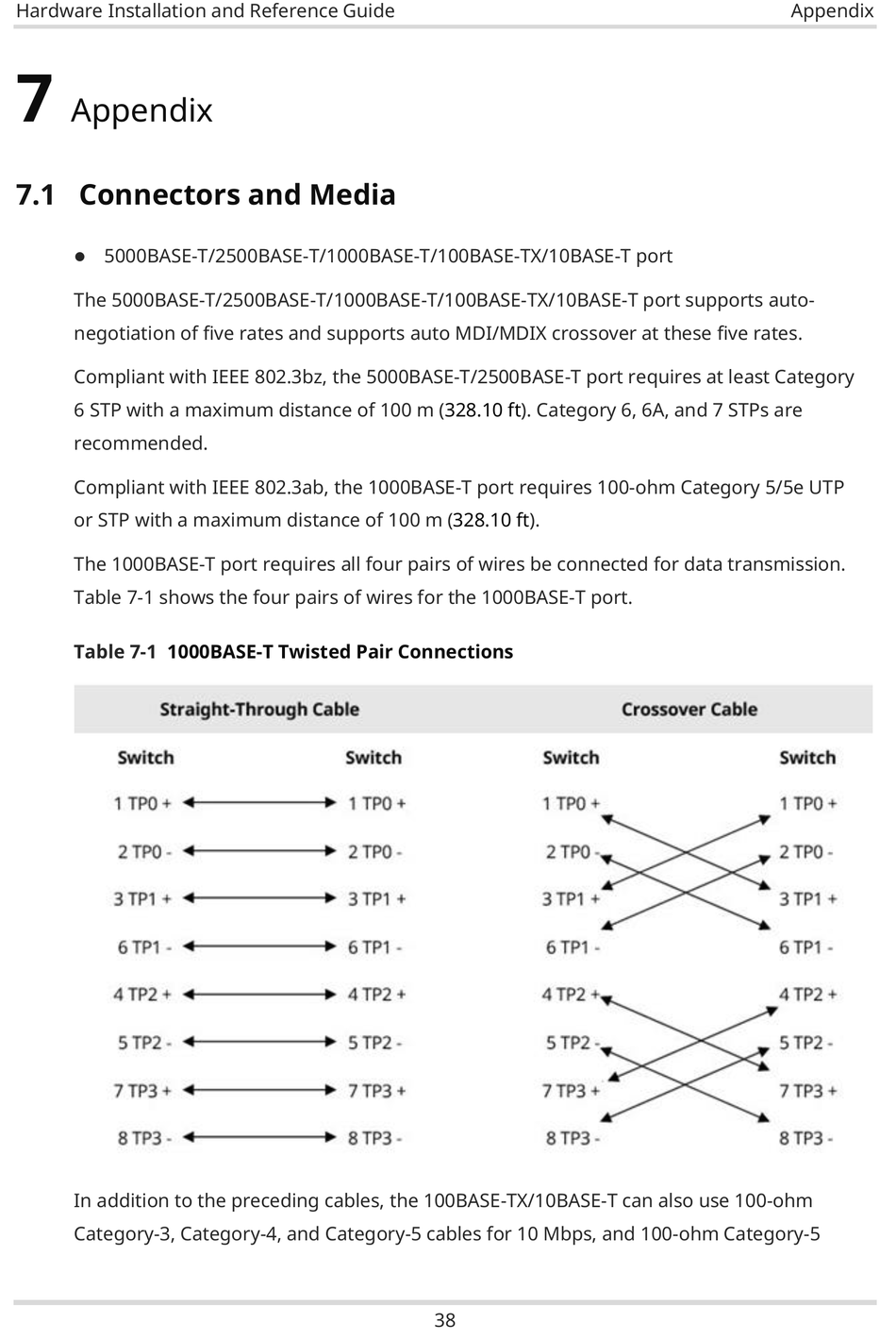

Appendix

7.1

Connectors and Media

5000BASE-T/2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T port

The 5000BASE-T/2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T port supports auto-
negotiation of five rates and supports auto MDI/MDIX crossover at these five rates.
Compliant with IEEE 802.3bz, the 5000BASE-T/2500BASE-T port requires at least Category
6 STP with a maximum distance of 100 m
recommended.
Compliant with IEEE 802.3ab, the 1000BASE-T port requires 100-ohm Category 5/5e UTP
or STP with a maximum distance of 100 m
The 1000BASE-T port requires all four pairs of wires be connected for data transmission.
Table 7-1 shows the four pairs of wires for the 1000BASE-T port.
Table 7-1 1000BASE-T Twisted Pair Connections
In addition to the preceding cables, the 100BASE-TX/10BASE-T can also use 100-ohm
Category-3, Category-4, and Category-5 cables for 10 Mbps, and 100-ohm Category-5
(328.10 ft). Category 6, 6A, and 7 STPs are
(328.10 ft).
