(3) Mount the device with the installation pole installed to the fixed support. Use hooks on
the installation pole to connect with the support, and tighten a M8 combined screw on
the left and right sides.

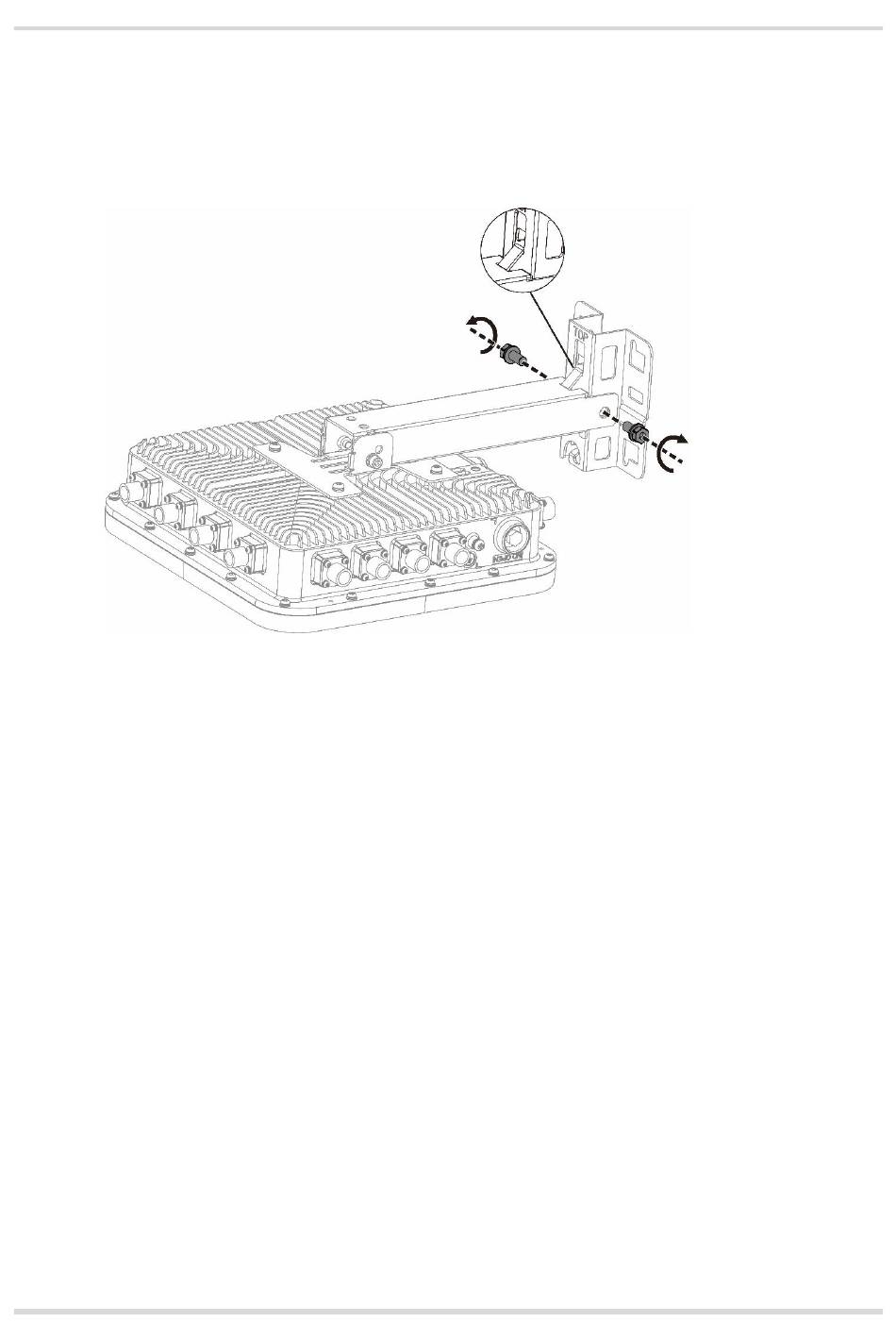

Figure 3-7 Connecting with the Support
3.5

Installing an Optical Module

Insert the selected optical module into the optical port on the device and ensure that the
optical module is properly installed.
