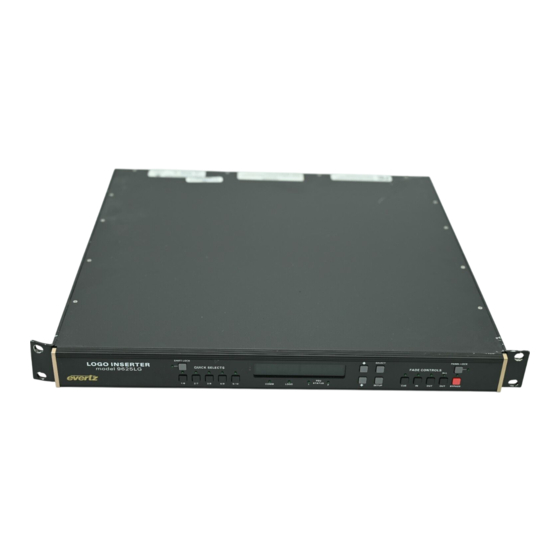

evertz 9625LG Instruction Manual

Logo inserters, media keyers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
© Copyright 2003, 2004, 2006
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario, Canada
L7L 5Z9
Phone:
905-335-3700
Sales Fax:
905-335-3573
Support Fax:
905-335-0909
Internet:
Sales: sales@evertz.com
Tech Support: service@evertz.com
Web Page:
Version 4.2 December 2006
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the 9625 Series Logo Inserters and Media Keyers.
Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the device.
All rights reserved. No part of this publication may be reproduced without the express written permission of
Evertz Microsystems Ltd. Copies of this guide can be ordered from your Evertz products dealer or from Evertz
Microsystems.
9625LG & HD9625LG Logo Inserters
9625LGA & HD9625LGA Media Keyers
Instruction Manual
http://www.evertz.com
&
Evertz

Advertisement

Table of Contents
loading

Related Manuals for evertz 9625LG

Summary of Contents for evertz 9625LG

  • Page 1 Version 4.2 December 2006 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 9625 Series Logo Inserters and Media Keyers. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the device.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface...
  • Page 5 Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
  • Page 6 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank REVISION HISTORY Revision 4.2...

  • Page 7: Table Of Contents

    9625LG Series Logo Inserters and Media Keyers Manual TABLE OF CONTENTS OVERVIEW ..........................1-1 1.1. OVERVIEW ......................... 1-1 1.2. HOW TO USE THIS MANUAL.................... 1-4 1.3. DEFINITIONS ........................1-5 INSTALLATION ........................... 2-1 2.1. REAR PANEL OVERVIEW ....................2-1 2.1.1. Digital Video Connections..................2-1 2.1.2.
  • Page 8 9625LG Series Logo Inserters and Media Keyers Manual 3.1.5.1. Fade Status Indicators ................3-4 3.1.5.2. Quick Select Status Indicators ..............3-5 3.1.5.3. Function Status Indicators................. 3-5 3.1.6. Electronics Unit Status Indicators ................3-5 3.1.7. Front Panel Display Functions ................. 3-6 3.2.
  • Page 9 4.3.1. Navigating The Setup Menu ..................4-6 OPTIONAL EAS DECODER INTERFACE (EAS OPTIONED UNITS ONLY) ....................5-1 5.1. CONNECTING THE 9625LG SERIES KEYER TO THE EAS DECODER ......5-1 5.1.1. Connecting The Serial Port..................5-1 5.1.2. Sage Decoder Configuration..................5-2 5.1.3.
  • Page 10 9625LG Series Logo Inserters and Media Keyers Manual 5.1.5. Connecting the GPI Tally Control ................5-4 5.2. CONFIGURING THE 9625LG SERIES KEYER FOR EAS..........5-4 5.2.1. Configuring the Serial Port..................5-4 5.2.2. Configuring the GPI Input ..................5-4 5.2.3. Configuring the EAS Controls .................. 5-4 5.3.
  • Page 11 Figure 2-8: Powering the General Purpose Output Opto Isolators from an External Power Supply..2-13 Figure 3-1: 9625LG - Front Panel Layout..................... 3-1 Figure 3-2: 9625LG with Compact Flash - Front Panel Layout ..............3-1 Figure 3-3: 9625LGA - Front Panel Layout ....................3-1 Figure 3-4: 9625LGA with Compact Flash - Front Panel Layout..............
  • Page 12 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank TABLE OF CONTENTS Page vi Revision 4.2...
  • Page 13 1.2. HOW TO USE THIS MANUAL.................... 1-4 1.3. DEFINITIONS ........................1-5 Figures Figure 1-1: Early “Non-Ref” 9625LG Logo Inserter Block Diagram ............. 1-3 Figure 1-2: Current 9625LG Series Logo Inserter Block Diagram ............... 1-3 Figure 1-3: 9625LGA Series Media Keyer Block Diagram ................1-4 OVERVIEW Revision 4.2...
  • Page 14 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank OVERVIEW Revision 4.2...

  • Page 15: Overview

    The 9625LG Series Keyers are available in versions to support both standard definition and high definition video. Throughout this manual the term 9625LG Series Keyers will be used to describe the common features of these keyers. The term 9625LG Logo Inserters will be used to describe the common features of the Logo Inserters and the term 9625LGA Media Keyers will be used to describe the common features of the Media Keyers.
  • Page 16 Includes embedded audio mixing with 4 AES pair de-embedding and re-embedding for voice- over and clip inserts • Audio bypass mode for passing Dolby E • Download logos and audio clips from a standard PC using Ethernet using Evertz Nomad™ or InstaLogo™ or Overture™ Software (included) EAS Option: • Emergency alert crawls •...

  • Page 17: Figure 1-1: Early "Non-Ref" 9625Lg Logo Inserter Block Diagram

    Preview Insert Output Front Panel Control Optional Remote Control External Control Unit Serial Control LTC Input Ethernet Figure 1-1: Early “Non-Ref” 9625LG Logo Inserter Block Diagram Bypass Bypass Bypass Protected Program B ypass Auto 12-bit Relay Output Serial Video Audio...

  • Page 18: How To Use This Manual

    Remote Panel Operation, Optional EAS Features, and Technical Description. The overview section contains a brief overview of the 9625LG Series Keyers operation and features and a glossary to define concepts and terms used throughout the remainder of the manual. We highly recommend taking the time to become familiar with the terms and concepts described here before proceeding into the rest of the manual.

  • Page 19: Definitions

    9625LG Series Logo Inserters and Media Keyers Manual Chapter 4 shows how to control the 9625LG Series Keyers using the Desktop Remote Control panels. Chapter 5 describes how to set up the 9625LG Series Keyers for use with an EAS decoder (EAS option required).
  • Page 20 9625LG Series Logo Inserters and Media Keyers Manual Composite analog: An encoded video signal such as NTSC or PAL video that includes horizontal and vertical synchronising information. Composite digital: A digitally encoded video signal, such as NTSC or PAL video that includes horizontal and vertical synchronising information.
  • Page 21 9625LG Series Logo Inserters and Media Keyers Manual LTC: See Linear Time Code NTSC: National Television Standards Committee established the television and video standard in use in the United States, Canada, Japan and several other countries. NTSC video consists of 525 horizontal lines at a field rate of approximately 60 fields per second. (Two fields equals one complete Frame).
  • Page 22 9625LG Series Logo Inserters and Media Keyers Manual TRS: Timing reference signals used in composite digital systems. (It is four words long). TRS-ID: Abbreviation for "Timing Reference Signal Identification". A reference signal used to maintain timing in composite digital systems. (It is four words long.)
  • Page 23 9625LG Series Logo Inserters and Media Keyers Manual CHAPTER 2 TABLE OF CONTENTS INSTALLATION ........................... 2-1 2.1. REAR PANEL OVERVIEW ....................2-1 2.1.1. Digital Video Connections..................2-1 2.1.2. Reference Video Connections ................. 2-2 2.1.3. AES AUDIO Connections (9625LGA and HD9625LGA only) ........2-2 2.1.4.

  • Page 24: Tables

    9625LG Series Logo Inserters and Media Keyers Manual Figures Figure 2-1: 9625LG Rear Panel ........................2-1 Figure 2-2: 9625LGA Rear Panel ........................2-1 Figure 2-3: Early HD9625LG Rear Panel ......................2-1 Figure 2-4: Keyer GPIO Opto Isolator Circuitry..................2-11 Figure 2-5:Powering the General Purpose Input Opto Isolators from the Unit .......... 2-12 Figure 2-6: Powering the General Purpose Input Opto Isolators from an External Power Supply ....

  • Page 25: Installation

    REF IN or COM D connector. Sections 2.1.1 to 2.1.8 describe the specific video, audio, and control signals that should be connected to the 9625LG Series Keyer units. Sections 2.2 to 2.9 describe how to connect them into your system.

  • Page 26: Reference Video Connections

    FILL will be a direct relay connection to the INPUT BNC. If you are using your 9625LG Series Keyer as a standard on-air device then set the Output Mode menu item to Pvw/Pgm. In this mode the input video is overlaid with the logo and then output on both the KEY and FILL BNCs.

  • Page 27: Linear Timecode

    UPGRADE RS232 (A) This 9 pin female 'D' connector provides an RS-232 serial interface for connection to a computer and is used for firmware upgrades to the 9625LG Series Keyer. The pin definitions are shown in Table 2-1. See section 6.2 for more information on upgrading firmware.

  • Page 28: Gpi/O Connections

    9625LG Series Logo Inserters and Media Keyers Manual The ports are also used to interface to the EAS Decoder (EAS optioned units) or optional temperature probe. These ports can be individually changed to run in either RS422 or RS232 mode by reconfiguring jumpers J19 or J20 on the 7700FC card inside the unit. The SERIAL CONTROL C port is controlled with jumper J19 and the COM D port is controlled with jumper J20.

  • Page 29: Ethernet Network Connections

    2.2. MOUNTING The 9625LG Series Keyers are equipped with rack mounting angles and fit into a standard 19 inches by 1.75 inches (483 mm x 45 mm) rack space. The optional rack mount Remote Control Panel (RCP) is equipped with rack mounting angles and fits into a standard 19 inches by 1.75 inches by 3.75 inches (483 mm x 45 mm x 150mm) rack space.

  • Page 30: Power Requirements

    2.3. POWER REQUIREMENTS Power requirements are 100 to 240 volts AC at 50 or 60 Hz. The 9625LG Series Keyer has universal power supplies that automatically sense the input voltage. Power should be applied by connecting a 3- wire grounding type power supply cord to the power entry module on the rear panel. The power cord should be minimum 18 AWG wire size;...

  • Page 31: Connecting The Video

    When the relay is active, the PROG output is directly connected to the INPUT BNC. If you are using your 9625LG Series Keyer as a standard on-air device then set the Output Mode menu to Pvw/Pgm. In this mode the input video is overlaid with the logo and then output on both the KEY and FILL BNCs.

  • Page 32: Video Timing Reference

    9625LG Series Logo Inserters and Media Keyers Manual In the Pvw/Key/Fill mode you must supply a valid video timing reference signal to the unit. You can provide either an analog video signal into the REF input BNC or a serial digital video signal to the INPUT BNC. The input signal must be running the same video standard as required by your downstream switcher or keyer.

  • Page 33: Connecting Voice Over Or Eas Audio

    “straight-through” with a RJ-45 connector at each end. Make the network connection by plugging one end of the cable into the RJ-45 receptacle of the 9625LG Series Keyer and the other end into a port of the supporting hub.

  • Page 34: Connecting The General Purpose Inputs And Outputs

    This gives you a good indication that the segment is wired correctly. The LED will BLINK when the 9625LG Series Keyer is sending or receiving data. The LED will be OFF if there is no valid connection.

  • Page 35: Figure 2-4: Keyer Gpio Opto Isolator Circuitry

    9625LG Series Logo Inserters and Media Keyers Manual this configuration the user can activate GPIs simply by connecting the GPI input pins to Ground (see Figure 2-5). This can be done with a button, switch, relay or an open collector transistor. In this configuration the GPIs will be internally pulled up to 3.3 volts.

  • Page 36: Figure 2-5:Powering The General Purpose Input Opto Isolators From The Unit

    9625LG Series Logo Inserters and Media Keyers Manual GP+3.3v + 3.3 Volts 500 Ω 1.8 k Ω Vext To Internal Circuit Power Chassis Ground Figure 2-5:Powering the General Purpose Input Opto Isolators from the Unit GP+3.3v + 3.3 Volts 1.8 k Ω...

  • Page 37: Figure 2-7: Powering The General Purpose Output Opto Isolators From The Unit

    9625LG Series Logo Inserters and Media Keyers Manual GP+3.3v + 3.3 Volts 500 Ω Power 10k Ω (external) From Internal Circuit Chassi Ground Figure 2-7: Powering the General Purpose Output Opto Isolators from the Unit GP+3.3v + 3.3 Volts 5-25 VDC 10k Ω...

  • Page 38: Connecting The Optional Temperature Probe

    3.8.1). 2.10. CONNECTING THE OPTIONAL TEMPERATURE PROBE The 9625LG Series Keyer is available with an optional temperature probe that is used to input data for display in a temperature logo. Consult the temperature probe manual for information on installing the temperature probe.

  • Page 39: Connecting The Optional Temperature Probe Via Ethernet (Com E)

    2.10.1. Connecting the Optional Temperature Probe Via Ethernet (Com E) Newer firmware for the 9625LG Series Keyers contains a new virtual serial port (COM E). This serial port is enabled on the Ethernet connector and requires a valid network connection to an Ethernet enabled device for functionality.
  • Page 40 9625LG Series Logo Inserters and Media Keyers Manual *** basic parameters for the Temperature Probe Hardware: Ethernet Autodetect IP addr - 0.0.0.0/DHCP/BOOTP/AutoIP, no gateway set DHCP device name : not set ***************** Security ***************** SNMP is enabled SNMP Community Name:...

  • Page 41: Table 2-10: Temperature Probe Extender Cable

    9625LG Series Logo Inserters and Media Keyers Manual 9625LG Series Keyer End Temperature Probe End 9 pin D Belden 9 pin D Male 9729 Female -------1a------ -------1b------ Rx Gnd ---drain 1---- Power +V -------2a------ Power +V Frame Shield ---drain 2----...
  • Page 42 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank INSTALLATION Revision 4.2...
  • Page 43 9625LG Series Logo Inserters and Media Keyers Manual CHAPTER 3 TABLE OF CONTENTS HOW TO OPERATE THE KEYER USING THE RACK MOUNT CONTROL PANEL................. 3-1 3.1. AN OVERVIEW OF KEY AND DISPLAY FUNCTIONS............3-1 3.1.1. Fade Button Group ....................3-2 3.1.2.
  • Page 44 9625LG Series Logo Inserters and Media Keyers Manual 3.7. MEDIA MANAGEMENT CONFIGURATION ITEMS ............3-19 3.7.1. Selecting the Source Media ................... 3-19 3.7.2. Selecting the Media File Name ................3-19 3.7.3. Selecting the Destination Media ................3-20 3.7.4. Copying a File from one Drive to Another.............. 3-20 3.7.5.
  • Page 45 Figures Figure 3-1: 9625LG - Front Panel Layout..................... 3-1 Figure 3-2: 9625LG with Compact Flash - Front Panel Layout ..............3-1 Figure 3-3: 9625LGA - Front Panel Layout ....................3-1 Figure 3-4: 9625LGA with Compact Flash - Front Panel Layout..............3-1 Figure 3-5: Overview of the Setup Menu ......................
  • Page 46 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank OPERATION Revision 4.2...

  • Page 47: How To Operate The Keyer Using The Rack Mount Control Panel

    9625LG Series Keyer electronics see section 2.4. When the 9625LG Series Keyer is fitted with the compact flash (+CF) option a different front panel is fitted on the main electronics unit. This front panel provides access to insert the compact flash memory device to allow you to quickly add or remove logos or audio clips to the system.

  • Page 48: Fade Button Group

    9625LG Series Logo Inserters and Media Keyers Manual The buttons are used to provide control of the 9625LG Series Keyer, to switch the various input sources, and to navigate the front panel Setup menu system, a quick and simple method of configuring the 9625LG Series Keyer for your application.

  • Page 49: The Quick Select Button Group

    9625LG Series Logo Inserters and Media Keyers Manual SELECT When you are not in the Setup Menu, this button controls whether the selected media item shown on the front panel display is present on the Program output buss. Scroll to the media item required using the &...

  • Page 50: Setup Button Group

    This button is used to enter Setup menu that is used to configure the operating modes of the 9625LG Series Keyer. (See section 3.3 for an overview of the Setup menu.) When you are in the Setup menu, this button is also used to back out of menu selections to the next higher menu level or to exit the Setup menu and return to normal panel operation.

  • Page 51: Quick Select Status Indicators

    COMM This LED is used to signal two types of communication to the 9625LG Series Keyer. When it is flashing On approximately every 1.5 seconds, that indicates that the control panel is communicating with the main microprocessor in the unit.

  • Page 52: Front Panel Display Functions

    The SETUP menu system uses the 16 digit alphanumeric display and provides a quick, intuitive method of configuring the 9625LG Series Keyer. These items are often only required to be set up at installation time, and do not pertain to the day-to-day operation of the unit. Figure 3-5 provides an overview of the Setup menu system.

  • Page 53: Figure 3-5: Overview Of The Setup Menu

    9625LG Series Logo Inserters and Media Keyers Manual Once you have made all the desired changes, press the SETUP button one or more times until you return to the top of the Menu tree and exit the Setup menu. Each of the menu items, with function explanations, are described in the following sections.

  • Page 54: Front Panel Setup Menu - Main Menu

    9625LG Series Logo Inserters and Media Keyers Manual 3.5. FRONT PANEL SETUP MENU – MAIN MENU The Front panel Setup menu is arranged in a layered structure that groups similar configuration items together. The following section provides a brief description of the first level of menus that appear when you enter the menu.

  • Page 55: General Configuration Items

    The GENERAL Setup menu is used to set up various items related to the overall operation of the 9625LG Series Keyer, such as Video standard, Time settings, Network info, COM port settings and firmware versions. Table 3-1 shows the items available in the GENERAL Setup menu. Sections 3.6.1 to 3.6.9 provide detailed information about each of the sub-menus.

  • Page 56: Configuring The Video Timing Reference

    3.6.3. Configuring the Real Time Clock The 9625LG Series Keyer contains a real time clock that is used to drive the clock display logos that can be placed on the screen. This battery backed up real time clock (known as RTC) free runs on an internal oscillator and can be set from the front panel.

  • Page 57: Displaying The Local Time

    When you set the hardware real time clock the UTC clock time will automatically be adjusted. When there is a valid LTC input to the 9625LG Series Keyer, the LTC time will overwrite the Real Time clock that has been entered.

  • Page 58: Setting The Time Zone Offset

    Standard time using this menu setting. If you want to automatically keep the time clock in the 9625LG Series Keyer in sync with the correct local time, connect a source of linear time code that contains local time to the LTC IN connector. See section 3.6.3.6...

  • Page 59: Setting The Ltc Date Format

    9625LG Series Logo Inserters and Media Keyers Manual 3.6.3.7. Setting the LTC Date Format GENERAL This menu item is used to select the format of the date encoded in the user bits of the LTC. For Skotel time code generators, choose Skotel. For all Time Setup other time code generators choose Auto.

  • Page 60: Synchronising The Real Time Clock To The Utc Time

    3.6.4. Setting Up the Network Addresses The Network Info sub-menus of the General Setup menu are used to configure the 9625LG Series Keyer for FTP uploads of logos and other media. In most cases you will only have to plug in your Ethernet cable and configure the network IP address (A) to contain an unused IP address in the valid range.

  • Page 61: Setting Up The Gateway

    The REMOTE PANEL (B) port is only available on remote control versions of the 9625LG Series Keyer and is used to connect the remote control panel. The SERIAL CONTROL (C) port, COM D port and COM E virtual port are programmable and can be used for a variety of functions.

  • Page 62: Protecting Line 21 Captions

    See your automation vendor for information about the protocols that are supported. Select AUTOMATION when you want to control the keyer using the Evertz automation protocol. This is the setting you should use when you are controlling the keyer from the Evertz MetaCast software.

  • Page 63: Setting The Output Mode

    3.6.9. Configuring the Up/Down Timers The 9625LG Series Keyers have the ability to insert a logo, which displays a count down or count up timer. The Up Down Timer menu is used to configure the timers that are used for this purpose. The following is a description of each of the sub-menus.
  • Page 64 These functions are used to view the commands that are being sent by the automation system. If you are having problems with a unit that is being controlled from automation, Evertz service personnel may ask you to provide a capture of the data being output on the serial port when the debug function is turned on.

  • Page 65: Media Management Configuration Items

    The 9625LG Series Keyer comes standard with a 128 MB internal flash memory for storing logos and other media files. This can be upgraded to 1 GB of internal flash memory. The 9625LG Series Keyer can also be fitted with a removable compact flash expansion drive that can be used with either 128 MB or 1 GB compact flash memory cards.

  • Page 66: Selecting The Destination Media

    9625LG Series Logo Inserters and Media Keyers Manual 3.7.3. Selecting the Destination Media MANAGE FILES This menu item is used to select the destination media drive that you are working with. Each media drive is identified by the serial number of the compact flash media that is currently in the drive.

  • Page 67: Preset Configuration Items

    3.8.1. Configuring the GPI Inputs The 9625LG Series Keyer is fitted with 8 general purpose inputs (GPIs) that can be configured to trigger 2 different actions for a specific media item - On Closure and On Open. For example, the On Closure event can be used to fade in a logo to the program output.
  • Page 68 9625LG Series Logo Inserters and Media Keyers Manual PRESET This menu item is used to select the action to occur when the GPI input is closed to ground. GPI Setup A CAction Select TOGGLE to change the state of the media file selected by the Logo A CAction:Toggle menu item.

  • Page 69: Configuring The Gpo Outputs

    9625LG Series Logo Inserters and Media Keyers Manual 3.8.2. Configuring the GPO Outputs The 9625 Series Keyers are fitted with 4 contact closure general purpose outputs (GPOs) that can be used as tallies for various functions. Use the pushbuttons to scroll through the list of available GPO's (A through D).

  • Page 70: Eas Configuration Items (Eas Optioned Units Only)

    EAS CONFIGURATION ITEMS (EAS OPTIONED UNITS ONLY) When the EAS option is added to the 9625LG Series Keyer, it has the ability to key Emergency Alert messages received from a Sage or TFT EAS Decoder over the program video and to insert the emergency audio over the program audio.

  • Page 71: Setting The Vertical Position Of Eas Crawl Display

    9625LG Series Logo Inserters and Media Keyers Manual 3.9.2. Setting the Vertical Position of EAS Crawl Display This menu item is used to set the vertical position of the EAS scrolling text message. The V value is the video line where the top of the scrolling message will be placed.

  • Page 72: Setting The Colours For The Eas Crawl Display

    9625LG Series Logo Inserters and Media Keyers Manual 3.9.6. Setting the Colours for the EAS Crawl Display There are three different levels of EAS messages – warning messages, watch messages and test messages. Each message typically has a different background and foreground colour associated with it so that the viewer will immediately know the severity of the EAS alert.

  • Page 73: Media Configuration Items

    9625LG Series Logo Inserters and Media Keyers Manual 3.10. MEDIA CONFIGURATION ITEMS The MEDIA Setup menu controls all the parameters for logos and audio clips. Table 3-5 shows the items available in the MEDIA Setup menu. Sections 3.10.1 to 3.10.9 provide detailed information about each of the sub-menus.

  • Page 74: Setting The Logo Horizontal Position

    9625LG Series Logo Inserters and Media Keyers Manual 3.10.1. Setting the Logo Horizontal Position MEDIA This menu item is used to set the horizontal position for the current logo. The position is referenced to the left edge of the logo. The range of values depends on video standard in use.

  • Page 75: Setting The Logo Display Time

    3.10.7. Crawl Logo Configuration Items (Crawl Optioned Units Only) When the Crawl (CWL) option is added to the 9625LG Series Keyer, it has the ability to key scrolling text messages over the program video. In order to set up the crawl logo and enter the text for the crawl logo you will need to use the Nomad™...

  • Page 76: Setting The Crawl Logo Repeat Count

    9625LG Series Logo Inserters and Media Keyers Manual 3.10.7.2. Setting the Crawl Logo Repeat Count MEDIA This menu item is used to set the number of times the text will scroll across Repeat the screen. Repeat:0 If you set the Repeat control to 0 the text will scroll continuously.

  • Page 77: Setting The Crawl Logo Colours

    Nomad™ or Overture™ software. The playlist file (EKP) is sent by Nomad™ or Overture™ to the 9625LGA Series Media Keyer. See the Nomad™ section of the Evertz Keyer Toolkit manual or refer to the Overture™ manual for more information on preparing playlists.

  • Page 78: Playlist Configuration Items (Media Keyer Units Only)

    If the firmware version installed in your unit is less than 2.0 please upgrade to the latest version which is posted on the Evertz website. See section 6.2 for instruction on upgrading the firmware in your unit. The HTML page also allows you to configure the unit to acquire METAR data for use with temperature logos.
  • Page 79 9625LG Series Logo Inserters and Media Keyers Manual 3.11.1 HTML Audio Setup Page (Media Keyers only) When you access the Audio Setup page, a screen similar to the one below will be displayed: Layer: This represents the output audio channel for both the AES outputs and the embedded audio out.
  • Page 80 9625LG Series Logo Inserters and Media Keyers Manual Black: This column is used to configure the audio, which is to be used when the 9625 Series Keyer is outputting black. The black function is only accessible via automation commands. Input: This column is used to configure the audio, which is to be used when the 9625 Series Keyer is passing the video, which is connected to the INPUT BNC connector.
  • Page 81 9625LG Series Logo Inserters and Media Keyers Manual AEMB1M - mono mix of group 1 channels 1 + 2 of embedded audio on the input video AEMB2M - mono mix of group 1 channels 3 + 4 of embedded audio on the input video...
  • Page 82 9625LG Series Logo Inserters and Media Keyers Manual 3.11.3 METAR Setup Page METAR is widely used in the aviation industry to obtain meteorological data from airports. The 9625 Series Keyers can extract the temperature from the data and use it for temperature logos. Use of this feature requires a connection to the Internet.
  • Page 83 9625LG Series Logo Inserters and Media Keyers Manual represents which specific GPI trigger the script will react to. GPI triggers range from A to H. Close shows that the script will run when the GPI is in a closed state.
  • Page 84 9625LG Series Logo Inserters and Media Keyers Manual The script can also direct the actions of channels coming from the device. object bus_setup ("1") { object channel ("1L") { source = "AES1L" gain = 0 router = "1" } In this case, the script is telling the channel “1L” of input 1 that both it’s sources will come from the discrete input 1L of ABO 1 side A and the gain on will be 0.
  • Page 85 9625LG Series Logo Inserters and Media Keyers Manual object channel ("4L") { source = "AES4L" gain = 0 router = "12"} The values for the router property are "1", "2", ..., "12", "none". One router property is needed for each channel pair (the latter one overwrites the first if different router values are specified for both left and right channels).
  • Page 86 9625LG Series Logo Inserters and Media Keyers Manual mode offset threshold gain nonpcm line21_protect b_blanking Individual object constructs object bus_setup (“bus names”) object channel (“channel names”) source = “audio_source_name” gain = “gain_db” router = “1”, …, “12”, “none” nonpcm = “1” or “0”...
  • Page 87 9625LG Series Logo Inserters and Media Keyers Manual pvw_source = “bus_name” key_source = “bus_name” fill_source = “bus_name” Note: values for bus_name are the same as for object bus_setup. key_source and fill_source are not implemented in current version object transition() type = “transition type”...
  • Page 88 9625LG Series Logo Inserters and Media Keyers Manual object misc () line21_protect = “1” or “0” b_blanking = “1” or “0” Note: “1” to enable line 21 protect or b_blanking. Scenario Samples SAP programming This means audio must always be present on channel audio channel 3 (group 1 Pair 2 channel 1) Default operation is mono mix of 1 &...
  • Page 89 9625LG Series Logo Inserters and Media Keyers Manual # Logo commands cmd media_all_out() cmd media_in("trouble") GPI_H_Open – file name: gpi-h-open # Logo commands cmd media_all_out() The Logo Layer must be enabled for logos and audio clips to playout on the desired output bus of DSK-LGA and SW units.
  • Page 90 9625LG Series Logo Inserters and Media Keyers Manual cmd voiceover_disable() insert appropriate VO audio source selection code here When the voiceover is disengaged, the audio that was active will still be active as the background source selections are not affected, however the voiceovers will be off.
  • Page 91 9625LG Series Logo Inserters and Media Keyers Manual CHAPTER 4 TABLE OF CONTENTS HOW TO OPERATE THE KEYER USING THE DESKTOP CONTROL PANEL................4-1 4.1. AN OVERVIEW OF KEY AND DISPLAY FUNCTIONS............4-2 4.1.1. Fade Button Group ....................4-2 4.1.2. The Quick Select Button Group ................4-3 4.1.3.
  • Page 92 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank DESKTOP CONTROL PANEL Revision 4.2...

  • Page 93: How To Operate The Keyer Using The Desktop Control Panel

    HOW TO OPERATE THE KEYER USING THE DESKTOP CONTROL PANEL The 9625LG Series Keyers are available as a 1RU chassis with a separate desktop remote control panel. This chapter describes the operation of the 9625LG Series Keyer using the desktop remote control panel.

  • Page 94: An Overview Of Key And Display Functions

    The illuminated buttons will light up to indicate that their controlled function is active. The buttons are used to provide control of the 9625LG Series Keyer unit, and to navigate the front panel Setup menu system. The Front panel Setup Menu system is a quick and simple method of configuring the Keyer for your application.

  • Page 95: The Quick Select Button Group

    9625LG Series Logo Inserters and Media Keyers Manual media item allows it to be viewed on the preview output buss before it is faded in. If the LED is illuminated, the media item has been cued. Cued animations are loaded into memory and paused on the first frame of the animation until the Fade In command is received.

  • Page 96: The Function Button Group

    (Also, see section 3.2) When the 9625LG Series Keyer is not in one of the Setup menus, the SHAFT ENCODER knob is used to select logos and audio clips that are stored in the file system. When the desired logo or audio clip is shown on the display, press the SELECT button to fade in the logo or play the audio clip.

  • Page 97: Setup Button Group

    When you are not in the Setup menu, this button is also used to fade logos in and out on the selected output buss. 4.1.6. Control Panel Status Indicators The illuminated buttons show operational status of the 9625LG Series Keyer at a glance. When they are On they indicate that the function associated with the button is active. LOGO, KEYER This LED (labelled LOGO on Logo Inserters and KEYER on Media Keyers) indicates that at least one media item is faded in and available on the Program output buss.

  • Page 98: An Overview Of The Setup Menu System

    The SETUP menu system uses the 16 digit alphanumeric display and provides a quick, intuitive method of configuring the 9625LG Series Keyer. These items are often only required to be set up at installation time, and do not pertain to the day-to-day operation of the unit. Figure 3-5 provides an overview of the Setup menu system.
  • Page 99 TABLE OF CONTENTS OPTIONAL EAS DECODER INTERFACE (EAS OPTIONED UNITS ONLY) ....................5-1 5.1. CONNECTING THE 9625LG SERIES KEYER TO THE EAS DECODER......5-1 5.1.1. Connecting The Serial Port..................5-1 5.1.2. Sage Decoder Configuration..................5-2 5.1.3. TFT Decoder Configuration ..................5-3 5.1.4.
  • Page 100 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank Revision 4.2...

  • Page 101: Optional Eas Decoder Interface (Eas Optioned Units Only)

    9625LG Series Logo Inserters and Media Keyers Manual OPTIONAL EAS DECODER INTERFACE (EAS OPTIONED UNITS ONLY) The 9625LG Series Keyer with the EAS option fitted is the perfect solution for on-air insertion of channel branding bugs and Emergency Alert System messages. The 9625LG Series Keyer is designed to receive Emergency Alert System message data and audio from a Sage or TFT EAS decoder unit and insert it over the program video and audio.

  • Page 102: Sage Decoder Configuration

    RS232 cable into the COM 2 port of the Sage decoder. If this port is already in use, you may use the COM 6 port. The Sage port must be configured to output the type of data that the 9625LG Series Keyer unit is expecting. To do this, follow these steps on the Sage unit.

  • Page 103: Tft Decoder Configuration

    The TFT unit has a number of communications ports on the rear of the unit marked as COM 1 to COM 3 and J103 and J104. The baud rate is fixed at 9600 within the 9625LG Series Keyer and it is configured to communicate using the Alternate TFT I/F for Trilithic EAS Sytems ALT1 option.

  • Page 104: Connecting The Gpi Tally Control

    The EAS decoders give out a tally control to indicate when an EAS alert message is being broadcast. This tally output must be connected to one of the GPI inputs on the 9625LG Series Keyer to signal it to ‘duck insert’ the emergency audio into the program audio. For the sake of simplicity in this description connect the tally output from the decoder to the GPI A input on the 9625LG Series Keyer.

  • Page 105: Testing The System

    9625LG Series Keyer. Double check that you have configured the correct CG Interface Type and that the serial cable is valid and connected to the correct ports. Check the Evertz Web site at www.evertz.com for any new firmware releases for the 9625LG Series Keyer.
  • Page 106 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank Revision 4.2...
  • Page 107 9625LG Series Logo Inserters and Media Keyers Manual CHAPTER 6 TABLE OF CONTENTS TECHNICAL DESCRIPTION ....................... 6-1 6.1. SPECIFICATIONS....................... 6-1 6.1.1. Video Specifications (9625LG and 9625LGA) ............6-1 6.1.1.1. Standard Definition Serial Digital Video Input ........... 6-1 6.1.1.2. Standard Definition Serial Digital Video Outputs........6-1 6.1.2.
  • Page 108 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank TECHNICAL DESCRIPTION Revision 4.2...

  • Page 109: Technical Description

    9625LG Series Logo Inserters and Media Keyers Manual TECHNICAL DESCRIPTION 6.1. SPECIFICATIONS 6.1.1. Video Specifications (9625LG and 9625LGA) 6.1.1.1. Standard Definition Serial Digital Video Input Standard: 270 Mb/sec Serial digital component SMPTE 259M standards supported shown in Table 2-6, software selectable...

  • Page 110: Video Reference (Not Available On Early Hd9625Lg Units)

    9625LG Series Logo Inserters and Media Keyers Manual Wide Band Jitter: < 0.2 UI 6.1.3. Video Reference (Not available on early HD9625LG Units) Source: Menu Selectable from Input Video or Reference Input Type: Auto Detect depends on video format NTSC or PAL Colour Black 1 V p-p Connector: BNC per IEC 60169-8 Amendment 2.

  • Page 111: Control

    9625LG Series Logo Inserters and Media Keyers Manual 6.1.6. Control Upgrade 232 Port: 9 pin female “D”, RS-232 57600 baud, 8 bits, no parity firmware upgrade Remote Panel Port: 9 pin female “D”, RS-422 9600 baud, 8 bits, no parity Remote control panel interface (only available on RCP or DCP versions) Serial Control Port: 9 pin female “D”, RS-232/422 8 bits, no parity, baud rate depends on protocol...

  • Page 112: Upgrading The Firmware - Rs232 Serial Port

    UPGRADING THE FIRMWARE – RS232 Serial Port 6.2.1. Overview The firmware in the 9625LG Series Keyer is contained on a FLASH EPROM. From time to time firmware updates will be provided to add additional features to the unit. The firmware update can be initiated using either the front panel or the terminal program method.

  • Page 113: Initiating Firmware Upgrade Mode From The Terminal Program

    9625LG Series Logo Inserters and Media Keyers Manual When you press the SELECT button the keyer unit will be placed in programming mode and its serial port is opened to communicate with the terminal software program. The following message will appear on the terminal screen EVERTZ 7700FC BOOT MONITOR MON8240 1.1 BUILD 9...

  • Page 114: Uploading The New Firmware

    Noise induced into the Serial Upgrade cable. 6.2.6. Completing the Upgrade 17. If you initiated the upload from the menu system, the 9625LG Series Keyer will reboot automatically. If you initiated the upgrade using the terminal program then type the word “boot”, without quotes, and hit the <ENTER>...

  • Page 115: Servicing Instructions

    9625LG Series Logo Inserters and Media Keyers Manual 6.4. SERVICING INSTRUCTIONS CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce risk of electric shock do not perform any servicing instructions in this section of the manual unless you are qualified to do so.
  • Page 116 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank TECHNICAL DESCRIPTION Revision 4.2...
  • Page 117 9625LG Series Logo Inserters and Media Keyers Manual CHAPTER 7 TABLE OF CONTENTS TROUBLESHOOTING THE 9625LG SERIES KEYER ............... 7-1 Tables Table 7-1: Error Messages ........................... 7-4 TROUBLESHOOTING Revision 4.2...
  • Page 118 9625LG Series Logo Inserters and Media Keyers Manual This page left intentionally blank TROUBLESHOOTING Revision 4.2...

  • Page 119: Troubleshooting The 9625Lg Series Keyer

    9625LG Series Logo Inserters and Media Keyers Manual Troubleshooting the 9625LG Series Keyer If an error occurs while using the 9625LG Series Keyer, consult the following table for more information. provides a complete list of error messages with corresponding error descriptions.
  • Page 120 9625LG Series Logo Inserters and Media Keyers Manual "No buffers" No buffer space available. An operation on a socket was not performed because the system lacked sufficient buffer space. "Host unreachable" No route to host. A socket operation was attempted to an unreachable host.
  • Page 121 9625LG Series Logo Inserters and Media Keyers Manual "Address not available" Cannot assign requested address. Normally results from an attempt to create a socket with an address not on this machine. "Would block" Operation would block. An operation which would cause a process to block was attempted on an object in nonblocking mode "No protocol option"...

  • Page 122: Table 7-1: Error Messages

    9625LG Series Logo Inserters and Media Keyers Manual "Not a directory" Not a directory. A nondirectory was specified where a directory is required, such as in a path prefix or as an argument to chdir() "Is a directory" Is a directory. An attempt to open a directory for writing.

  • Page 123: Index

    9625LG Series Logo Inserters and Media Keyers Manual INDEX Connecting the GPIs....... 2-10 Connecting the GPOs ......2-10 Connecting the Linear Time Code... 2-9 AES ALT IN ..........2-2 Connecting the video AES PREV OUT.......... 2-2 Gen Lock Reference........ 2-8 AES PROG IN..........
  • Page 124 9625LG Series Logo Inserters and Media Keyers Manual SELECT........... 4-3 Desktop Control panel operation Gen Lock Reference Overview..........4-5 Connections..........2-8 Displaying Logos GENERAL Menu Basic operation ........3-6 Overview..........3-9 Actions when the GPI Closes ....3-21 Overview..........3-21 Colours ..........
  • Page 125 9625LG Series Logo Inserters and Media Keyers Manual Crawl Rate ..........3-29 Menus Crawl Repeat ......... 3-30 Navigation ..........3-6 DCP LED ..........4-5 Overview..........3-6 Fade In Time.......... 3-28 EAS............ 3-24 Fade Out Time........3-29 GENERAL..........3-9 FG Opacity..........3-30 LOGO..........
  • Page 126 9625LG Series Logo Inserters and Media Keyers Manual Specifications..........6-1 AES Audio ..........6-2 QUICK SELECT Control ............. 6-3 LED............3-5 Dimensions..........6-3 Quick Select Controls ......3-3, 4-3 Electrical ..........6-3 SHIFT LOCK........3-3, 4-4 Embedded Audio ........6-2 EMI/RFI ........... 6-3 GPI ............

This manual is also suitable for:

Hd9625lg9625lgaHd9625lga

Table of Contents
