EXFO FTB-2 Quick Reference Manual

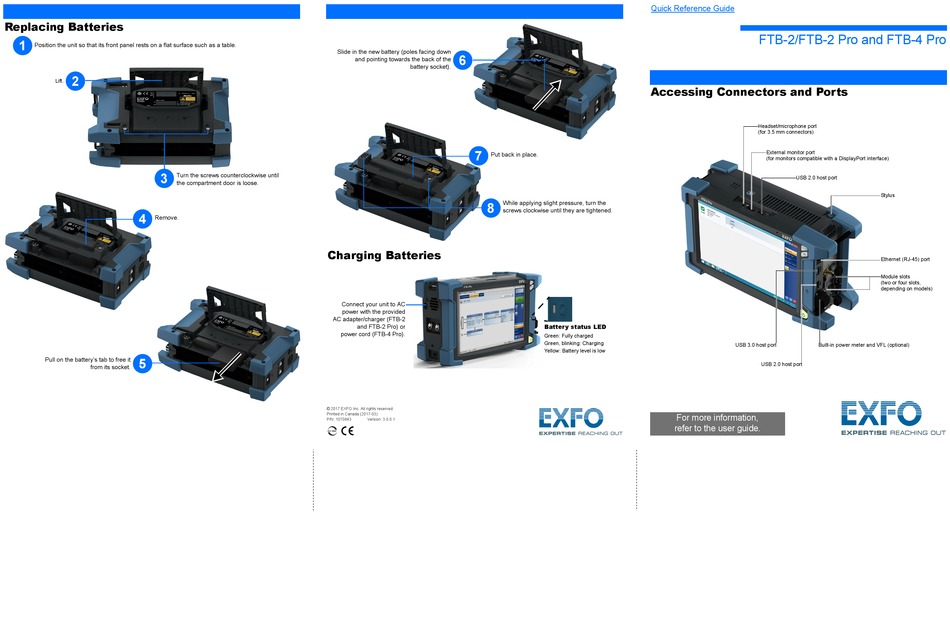

Replacing Batteries
1
Position the unit so that its front panel rests on a flat surface such as a table.
2
Lift.
3
Turn the screws counterclockwise until
the compartment door is loose.
4
Remove.
Pull on the battery's tab to free it 5
from its socket.
Slide in the new battery (poles facing down
6
and pointing towards the back of the
battery socket).
7
Put back in place.
While applying slight pressure, turn the
8
screws clockwise until they are tightened.
Charging Batteries
Connect your unit to AC
power with the provided
AC adapter/charger (FTB-2
and FTB-2 Pro) or
power cord (FTB-4 Pro).
© 2017 EXFO Inc. All rights reserved.
Printed in Canada (2017-03)
P/N: 1070843 Version: 3.0.0.1

Quick Reference Guide
Accessing Connectors and Ports
Battery status LED
Green: Fully charged
Green, blinking: Charging
Yellow: Battery level is low
For more information,
refer to the user guide.

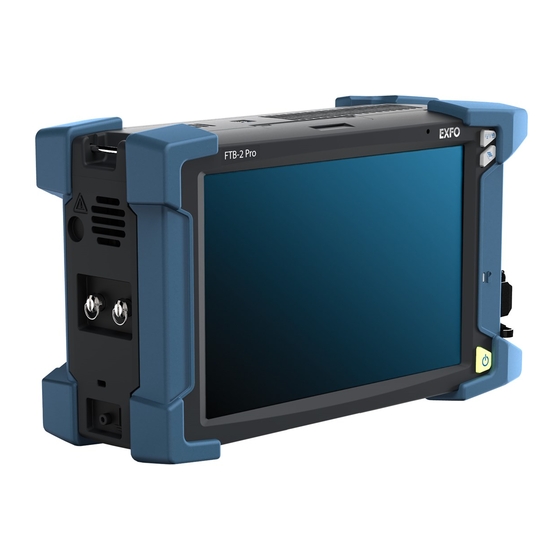

FTB-2/FTB-2 Pro and FTB-4 Pro
Headset/microphone port
(for 3.5 mm connectors)
External monitor port
(for monitors compatible with a DisplayPort interface)
USB 2.0 host port
Stylus
Ethernet (RJ-45) port
Module slots
(two or four slots,
depending on models)
USB 3.0 host port Built-in power meter and VFL (optional)
USB 2.0 host port
