FC 300 Instruction Manual
5 line readouts, 4 line readouts or Smart Logic Control.
Use
[Status]
for selecting the mode of display or for changing back to Display mode from either the Quick Menu
mode, the Main Menu mode or Alarm mode. Also use the [Status] key to toggle single or double readout mode.
[Quick Menus]
allows quick access to different Quick Menus such as:
My personal menu
-
Quick setup
-
Changes made
-
Loggings
-
Use
[Quick Menus]
for programming the parameters belonging to the Quick Menu. It is possible
to switch directly between Quick Menu mode and Main Menu mode.
[Main Menu]
is used for programming all parameters.
It is possible to switch directly between Main Menu mode and Quick Menu mode.
Parameter shortcut can be carried out by pressing down the
The parameter shortcut allows direct access to any parameter.
[Alarm log]
displays an Alarm list of the five latest alarms (numbered A1-A5). To obtain additional details
about an alarm, use the arrow keys to maneuver to the alarm number and press [OK]. You will now receive
information about the condition of your adjustable frequency drive right before entering the alarm mode.

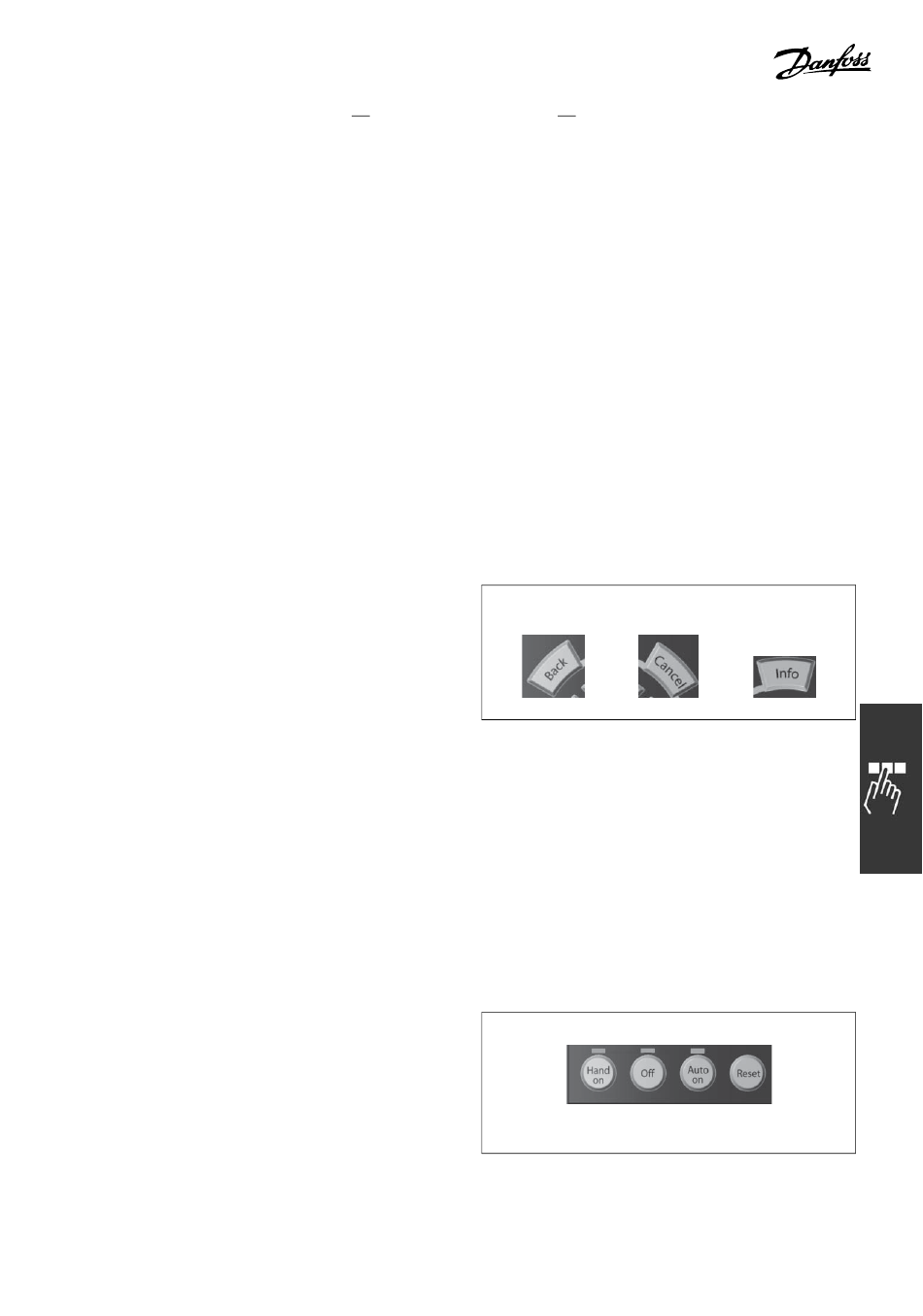

[Back]
takes you to the previous step or layer
in the navigation structure.
[Cancel]
annuls your last change or command as
long as the display has not been changed.
[Info]
supplies information about a command,
parameter, or function in any display window. [Info]
provides detailed information whenever
help is needed.
Exit info mode by pressing either [Info],
[Back], or [Cancel].
Navigation Keys
The four navigation arrows are used to navigate between the different choices available in
Menus],
[Main Menu]
[OK]
is used for choosing a parameter marked by the cursor and for enabling the change of a parameter.
Local Control Keys
for local control are found
at the bottom of the control panel.
How to Program
and
[Alarm
log]. Use the keys to move the cursor.
MG.33.A4.22 - VLT is a registered Danfoss trademark
[Main Menu]
key for 3 seconds.
[Quick
130BP046.10
37
