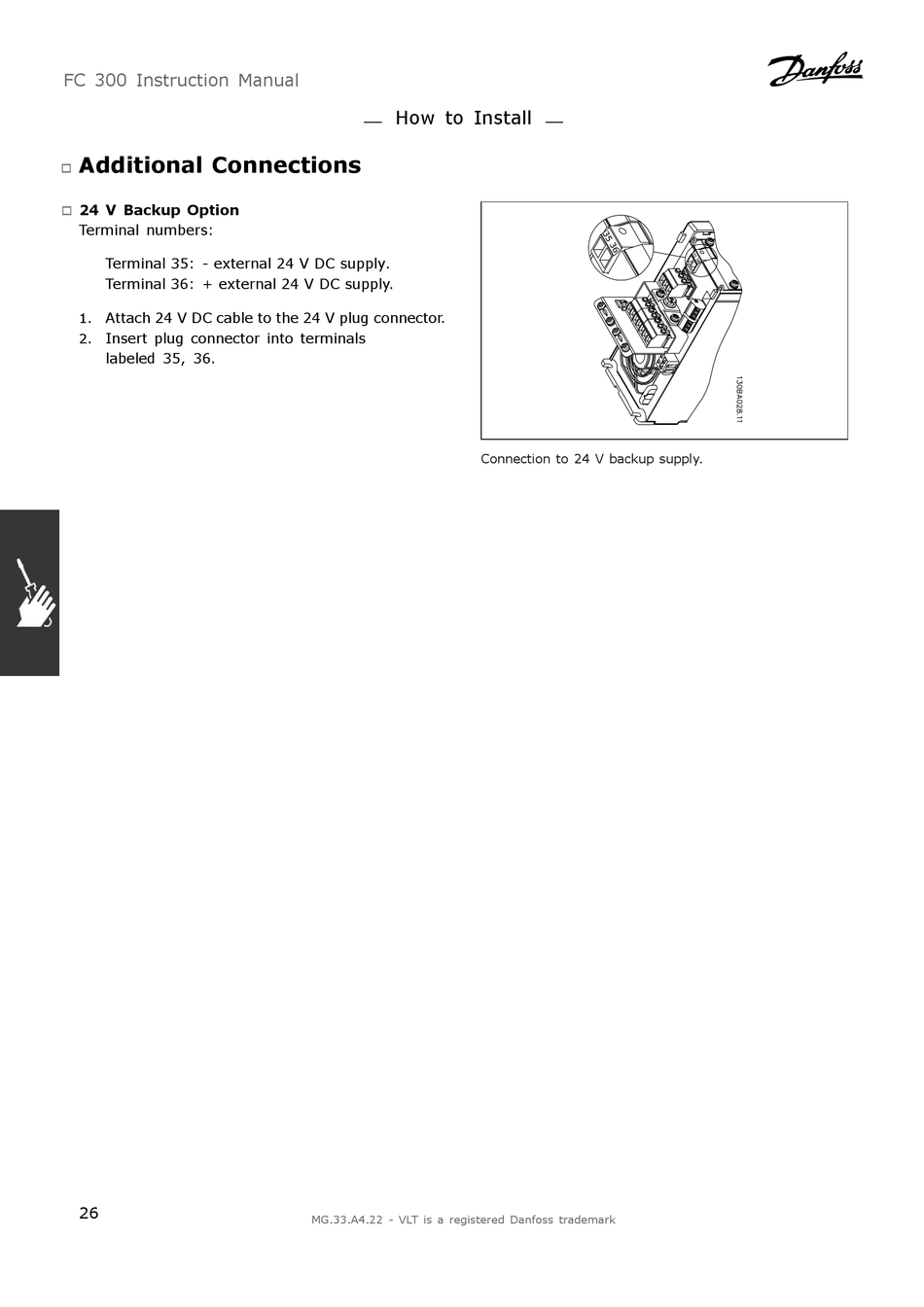

FC 300 Instruction Manual
Additional Connections
"
24 V Backup Option
"
Terminal numbers:
Terminal 35: - external 24 V DC supply.
Terminal 36: + external 24 V DC supply.
1.
Attach 24 V DC cable to the 24 V plug connector.
Insert plug connector into terminals
2.
labeled 35, 36.
26
How to Install
Connection to 24 V backup supply.
MG.33.A4.22 - VLT is a registered Danfoss trademark
