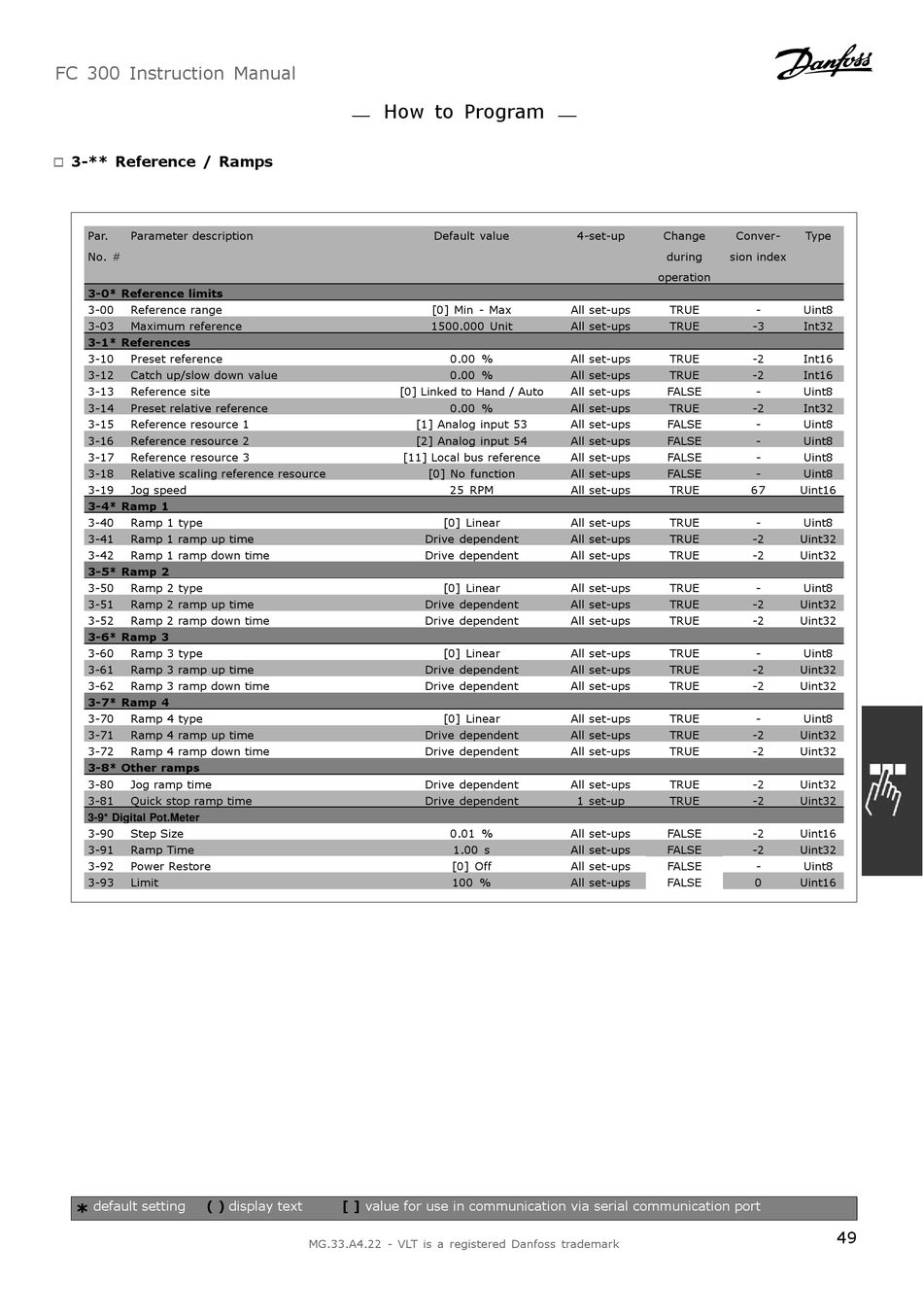

Danfoss FC 302 Instruction Manual page 49

FC 300 Instruction Manual
3-** Reference / Ramps
"
Par. Parameter description
No. #
3-0* Reference limits
3-00 Reference range
3-03 Maximum reference
3-1* References
3-10 Preset reference
3-12 Catch up/slow down value
3-13 Reference site
3-14 Preset relative reference
3-15 Reference resource 1
3-16 Reference resource 2
3-17 Reference resource 3
3-18 Relative scaling reference resource
3-19 Jog speed
3-4* Ramp 1
3-40 Ramp 1 type
3-41 Ramp 1 ramp up time
3-42 Ramp 1 ramp down time
3-5* Ramp 2
3-50 Ramp 2 type
3-51 Ramp 2 ramp up time
3-52 Ramp 2 ramp down time
3-6* Ramp 3
3-60 Ramp 3 type
3-61 Ramp 3 ramp up time
3-62 Ramp 3 ramp down time
3-7* Ramp 4
3-70 Ramp 4 type
3-71 Ramp 4 ramp up time
3-72 Ramp 4 ramp down time
3-8* Other ramps
3-80 Jog ramp time
3-81 Quick stop ramp time
3-9* Digital Pot.Meter
3-90 Step Size
3-91 Ramp Time
3-92 Power Restore
3-93 Limit
* default setting ( )
How to Program
[0] Linked to Hand / Auto
[11] Local bus reference
display text [ ] value for use in communication via serial communication port
MG.33.A4.22 - VLT is a registered Danfoss trademark
Default value 4-set-up
[0] Min - Max All set-ups
1500.000 Unit All set-ups
0.00 % All set-ups
0.00 % All set-ups
All set-ups
0.00 % All set-ups
[1] Analog input 53 All set-ups
[2] Analog input 54 All set-ups
All set-ups
[0] No function All set-ups
25 RPM All set-ups
[0] Linear All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
[0] Linear All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
[0] Linear All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
[0] Linear All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
Drive dependent 1 set-up
0.01 % All set-ups
1.00 s All set-ups
[0] Off All set-ups
100 % All set-ups
Change Conver- Type
during sion index
operation
TRUE - Uint8
TRUE -3 Int32
TRUE -2 Int16
TRUE -2 Int16
FALSE - Uint8
TRUE -2 Int32
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
TRUE 67 Uint16
TRUE - Uint8
TRUE -2 Uint32
TRUE -2 Uint32
TRUE - Uint8
TRUE -2 Uint32
TRUE -2 Uint32
TRUE - Uint8
TRUE -2 Uint32
TRUE -2 Uint32
TRUE - Uint8
TRUE -2 Uint32
TRUE -2 Uint32
TRUE -2 Uint32
TRUE -2 Uint32
FALSE -2 Uint16
FALSE -2 Uint32
FALSE - Uint8
FALSE 0 Uint16
