FC 300 Instruction Manual
NOTE
To remove the cable from the terminal:
1. Insert a screwdriver in the square hole.
Pull out the cable.
2.

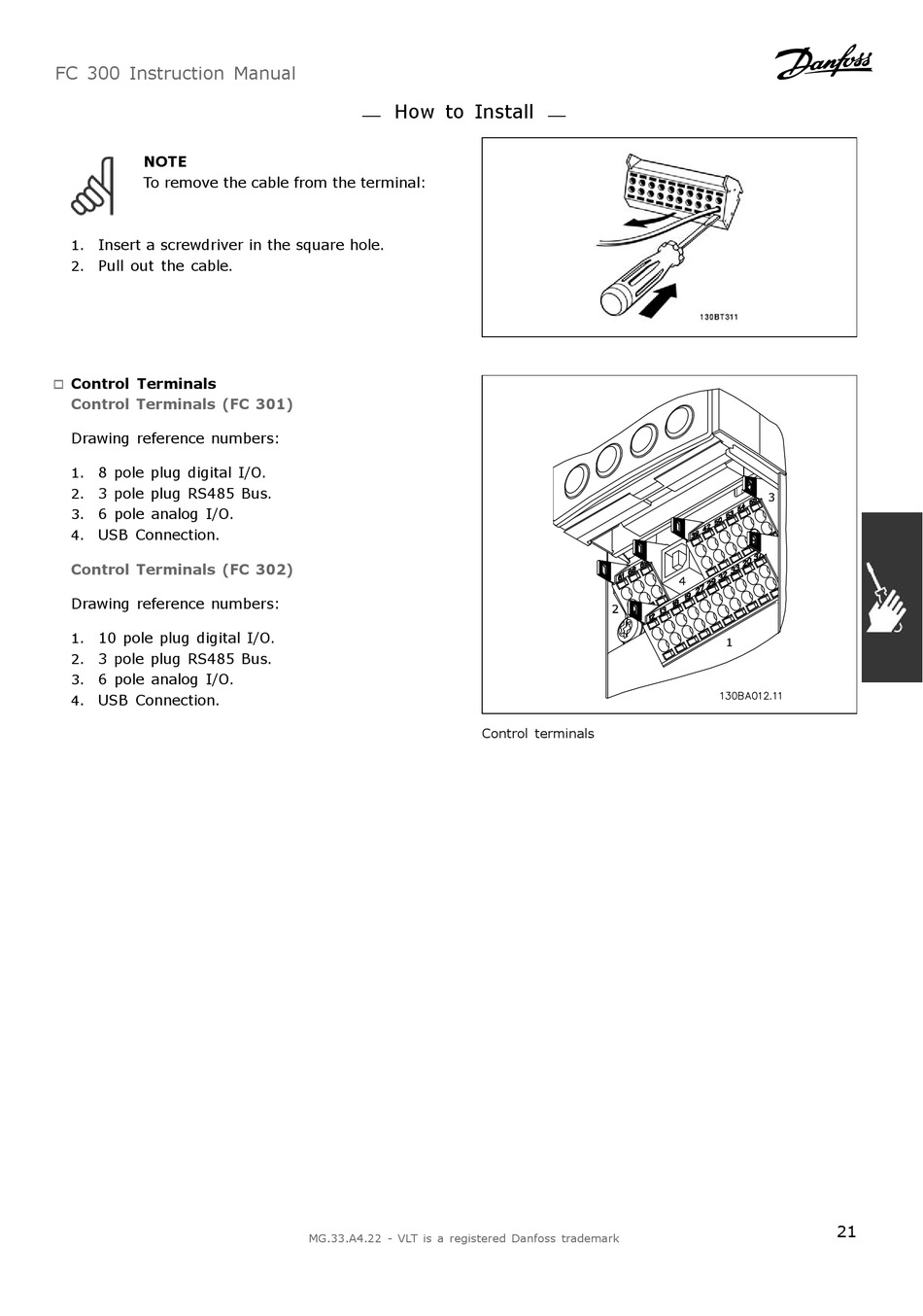

Control Terminals

"
Control Terminals (FC 301)
Drawing reference numbers:
8 pole plug digital I/O.
1.
2. 3 pole plug RS485 Bus.
3. 6 pole analog I/O.
USB Connection.
4.
Control Terminals (FC 302)
Drawing reference numbers:
10 pole plug digital I/O.
1.
3 pole plug RS485 Bus.
2.
6 pole analog I/O.
3.
4. USB Connection.
How to Install
Control terminals
MG.33.A4.22 - VLT is a registered Danfoss trademark
21
