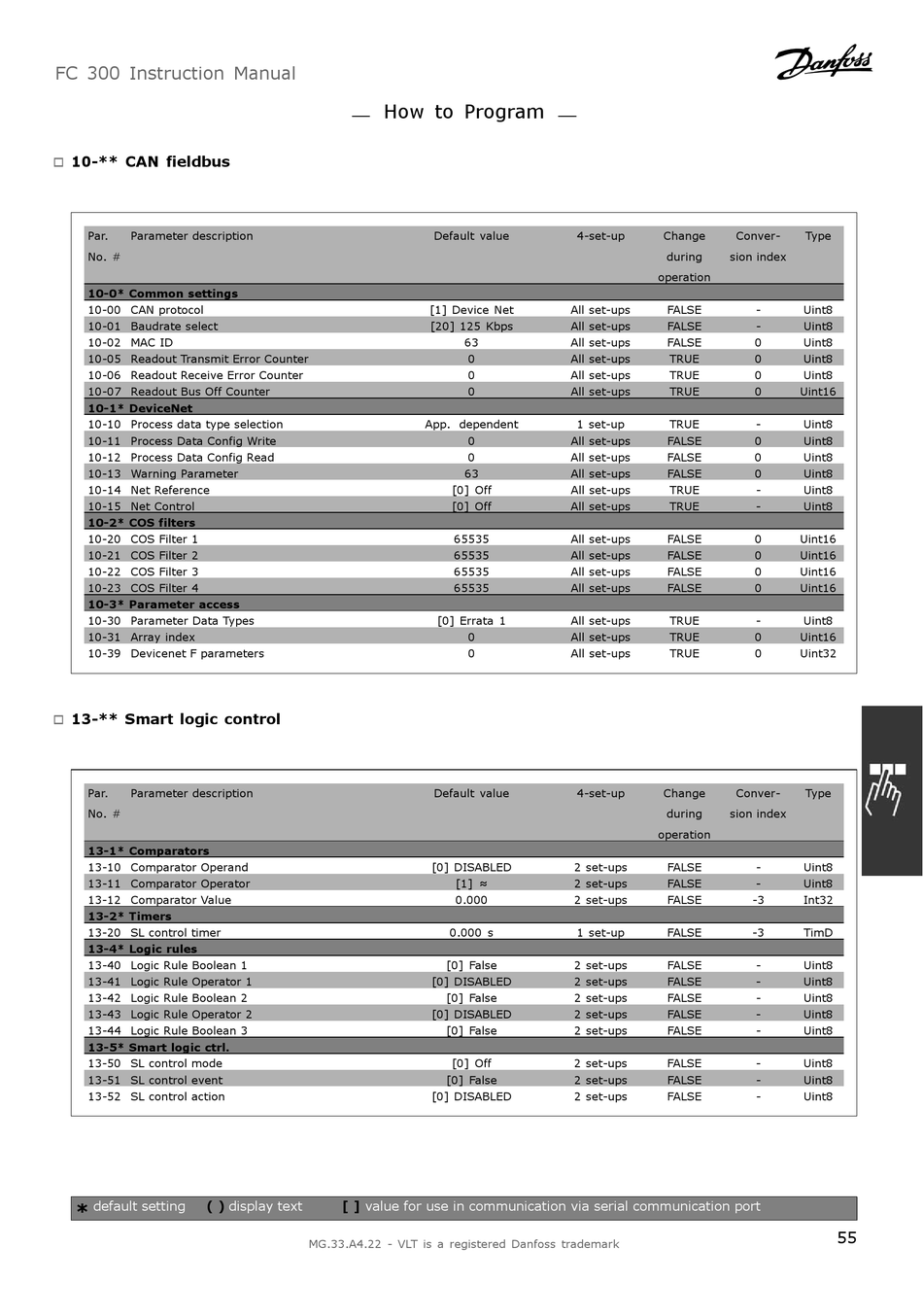

Danfoss FC 302 Instruction Manual page 55

FC 300 Instruction Manual
10-** CAN fieldbus
"
Par. Parameter description
No. #
10-0* Common settings
10-00 CAN protocol
10-01 Baudrate select
10-02 MAC ID
10-05 Readout Transmit Error Counter
10-06 Readout Receive Error Counter
10-07 Readout Bus Off Counter
10-1* DeviceNet
10-10 Process data type selection
10-11 Process Data Config Write
10-12 Process Data Config Read
10-13 Warning Parameter
10-14 Net Reference
10-15 Net Control
10-2* COS filters
10-20 COS Filter 1
10-21 COS Filter 2
10-22 COS Filter 3
10-23 COS Filter 4
10-3* Parameter access
10-30 Parameter Data Types
10-31 Array index
10-39 Devicenet F parameters
13-** Smart logic control
"
Par. Parameter description
No. #
13-1* Comparators
13-10 Comparator Operand
13-11 Comparator Operator
13-12 Comparator Value
13-2* Timers
13-20 SL control timer
13-4* Logic rules
13-40 Logic Rule Boolean 1
13-41 Logic Rule Operator 1
13-42 Logic Rule Boolean 2
13-43 Logic Rule Operator 2
13-44 Logic Rule Boolean 3
13-5* Smart logic ctrl.
13-50 SL control mode
13-51 SL control event
13-52 SL control action
* default setting ( )
How to Program
display text [ ] value for use in communication via serial communication port
MG.33.A4.22 - VLT is a registered Danfoss trademark
Default value 4-set-up
[1] Device Net All set-ups
[20] 125 Kbps All set-ups
63 All set-ups
0 All set-ups
0 All set-ups
0 All set-ups
App. dependent 1 set-up
0 All set-ups
0 All set-ups
63 All set-ups
[0] Off All set-ups
[0] Off All set-ups
65535 All set-ups
65535 All set-ups
65535 All set-ups
65535 All set-ups
[0] Errata 1 All set-ups
0 All set-ups
0 All set-ups
Default value 4-set-up
[0] DISABLED 2 set-ups
[1] ≈ 2 set-ups
0.000 2 set-ups
0.000 s 1 set-up
[0] False 2 set-ups
[0] DISABLED 2 set-ups
[0] False 2 set-ups
[0] DISABLED 2 set-ups
[0] False 2 set-ups
[0] Off 2 set-ups
[0] False 2 set-ups
[0] DISABLED 2 set-ups
Change Conver- Type
during sion index
operation
FALSE - Uint8
FALSE - Uint8
FALSE 0 Uint8
TRUE 0 Uint8
TRUE 0 Uint8
TRUE 0 Uint16
TRUE - Uint8
FALSE 0 Uint8
FALSE 0 Uint8
FALSE 0 Uint8
TRUE - Uint8
TRUE - Uint8
FALSE 0 Uint16
FALSE 0 Uint16
FALSE 0 Uint16
FALSE 0 Uint16
TRUE - Uint8
TRUE 0 Uint16
TRUE 0 Uint32
Change Conver- Type
during sion index
operation
FALSE - Uint8
FALSE - Uint8
FALSE -3 Int32
FALSE -3 TimD
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
FALSE - Uint8
