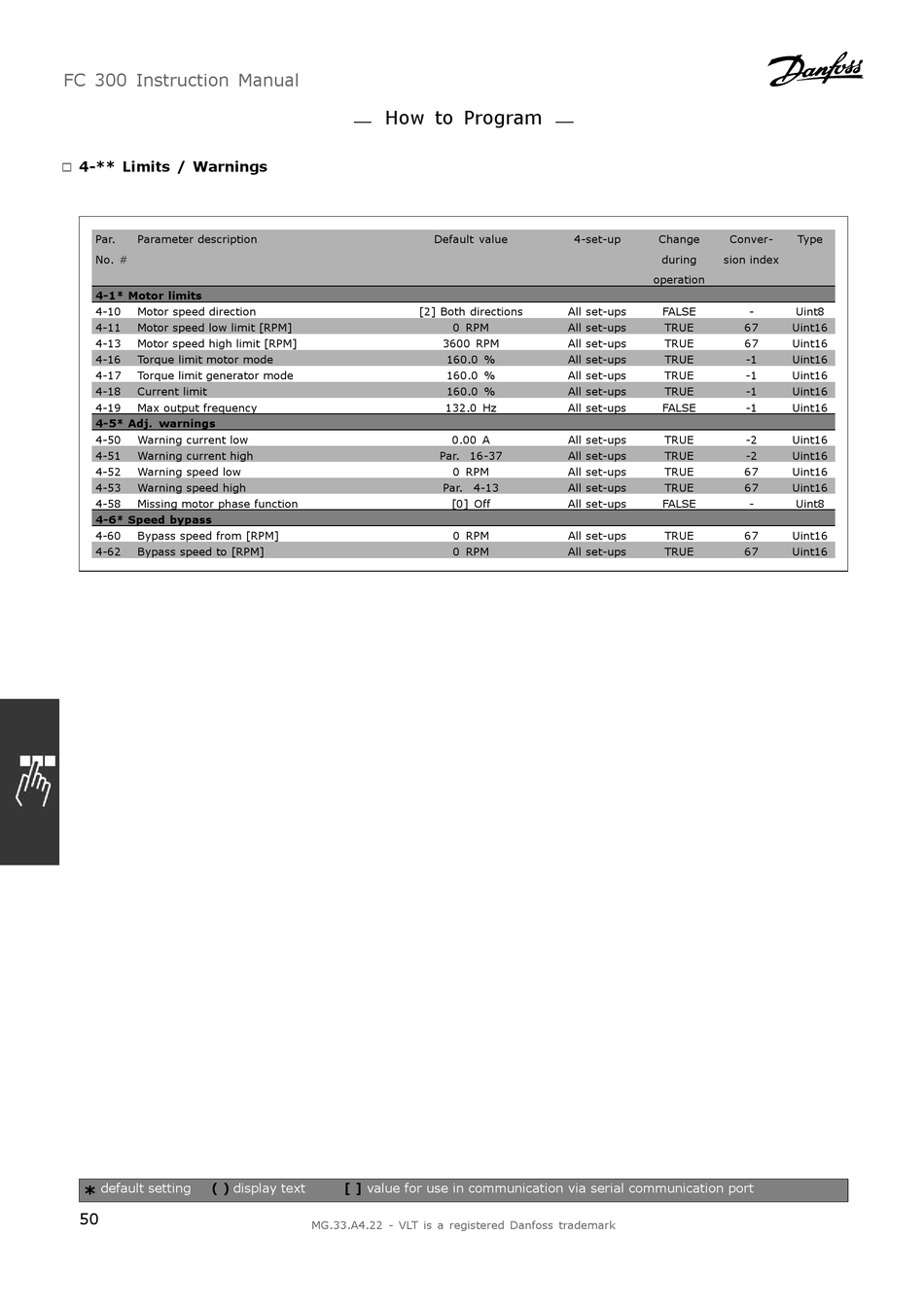

Danfoss FC 302 Instruction Manual page 50

FC 300 Instruction Manual
4-** Limits / Warnings
"
Par. Parameter description
No. #
4-1* Motor limits
4-10 Motor speed direction
4-11 Motor speed low limit [RPM]
4-13 Motor speed high limit [RPM]
4-16 Torque limit motor mode
4-17 Torque limit generator mode
4-18 Current limit
4-19 Max output frequency
4-5* Adj. warnings
4-50 Warning current low
4-51 Warning current high
4-52 Warning speed low
4-53 Warning speed high
4-58 Missing motor phase function
4-6* Speed bypass
4-60 Bypass speed from [RPM]
4-62 Bypass speed to [RPM]
default setting ( ) display text
*
50
How to Program
Default value
[2] Both directions
0 RPM
3600 RPM
160.0 %
160.0 %
160.0 %
132.0 Hz
0.00 A
Par. 16-37
0 RPM
Par. 4-13
[0] Off
0 RPM
0 RPM
[ ] value for use in communication via serial communication port
MG.33.A4.22 - VLT is a registered Danfoss trademark
4-set-up Change Conver-
during sion index
operation
All set-ups FALSE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups FALSE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups FALSE
All set-ups TRUE
All set-ups TRUE
Type
- Uint8
67 Uint16
67 Uint16
-1 Uint16
-1 Uint16
-1 Uint16
-1 Uint16
-2 Uint16
-2 Uint16
67 Uint16
67 Uint16
- Uint8
67 Uint16
67 Uint16
