Danfoss FC 302 Instruction Manual page 62

FC 300 Instruction Manual
Voltage level, logic '0' NPN
Voltage level, logic '1' NPN
Maximum voltage on input ................................................................................................... 28 V DC
Input resistance, R ...................................................................................................... approx. 4 kΩ
i
Safe stop Terminal 37
Terminal 37 is fixed PNP logic
Voltage level .................................................................................................................. 0 - 24 V DC
Voltage level, logic'0' PNP .................................................................................................... < 4 V DC
Voltage level, logic'1' PNP ................................................................................................... >15 V DC
Nominal input current at 24 V ........................................................................................... 50 mA rms
Nominal input current at 15 V ........................................................................................... 80 mA rms
Input capacitance .................................................................................................................. 400 nF
All digital inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
1) Terminals 27 and 29 can also be programmed as output.
2) Except safe stop input Terminal 37.
3) Terminal 37 is only available in FC 302. It can only be used as safe stop input. Terminal 37 is suitable
for category 3 installations according to EN 954-1 (safe stop according to category 0 EN 60204-1) as
required by the EU Machinery Directive 98/37/EC. Terminal 37 and the Safe Stop function are designed in
conformance with EN 60204-1, EN 50178, EN 61800-2, EN 61800-3, and EN 954-1. For correct and safe
use of the Safe Stop function, follow the related information and instructions in the Design Guide.
Analog inputs:
Number of analog inputs ................................................................................................................ 2
Terminal number ................................................................................................................... 53, 54
Modes ................................................................................................................. Voltage or current
Mode select .......................................................................................... Switch S201 and switch S202
Voltage mode .............................................................................. Switch S201/switch S202 = OFF (U)
Voltage level .......................................................... FC 301: 0 to + 10 / FC 302: -10 to +10 V (scalable)
Input resistance, R .................................................................................................... Approx. 10 kΩ
i
Max. voltage ........................................................................................................................ ± 20 V
Current mode ................................................................................ Switch S201/switch S202 = ON (I)
Current level ................................................................................................. 0/4 to 20 mA (scalable)
Input resistance, R .................................................................................................... Approx. 200 Ω
i
Max. current ........................................................................................................................ 30 mA
Resolution for analog inputs ......................................................................................... 10 bit (+ sign)
Accuracy of analog inputs ......................................................................... Max. error 0.5% of full scale
Band width ....................................................................................... FC 301: 20 Hz / FC 302: 100 Hz

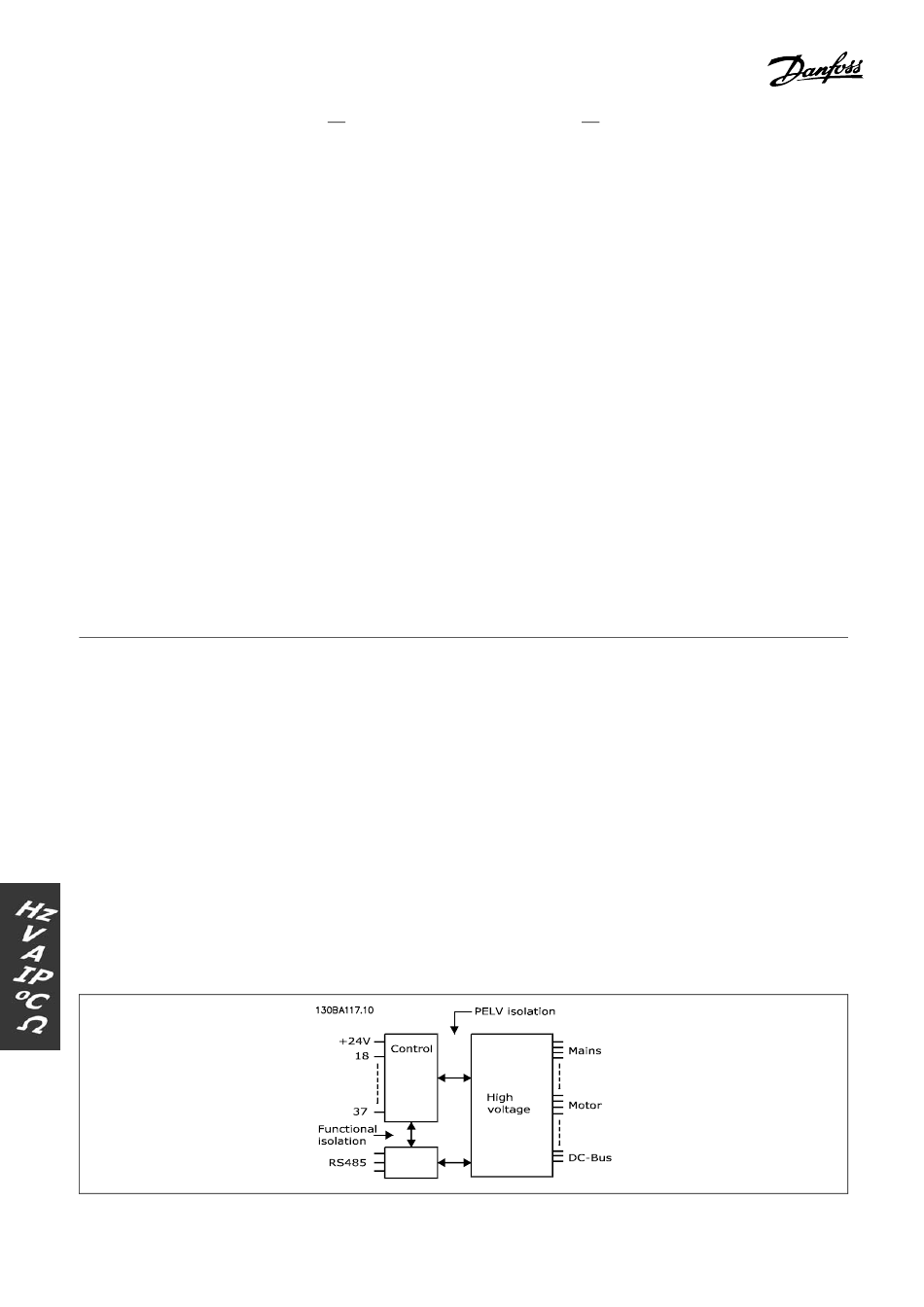

The analog inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
62
General Specifications
2) ............................................................................................ > 19 V DC
2) ............................................................................................. < 14 V DC
2) :
MG.33.A4.22 - VLT is a registered Danfoss trademark
