FC 300 Instruction Manual

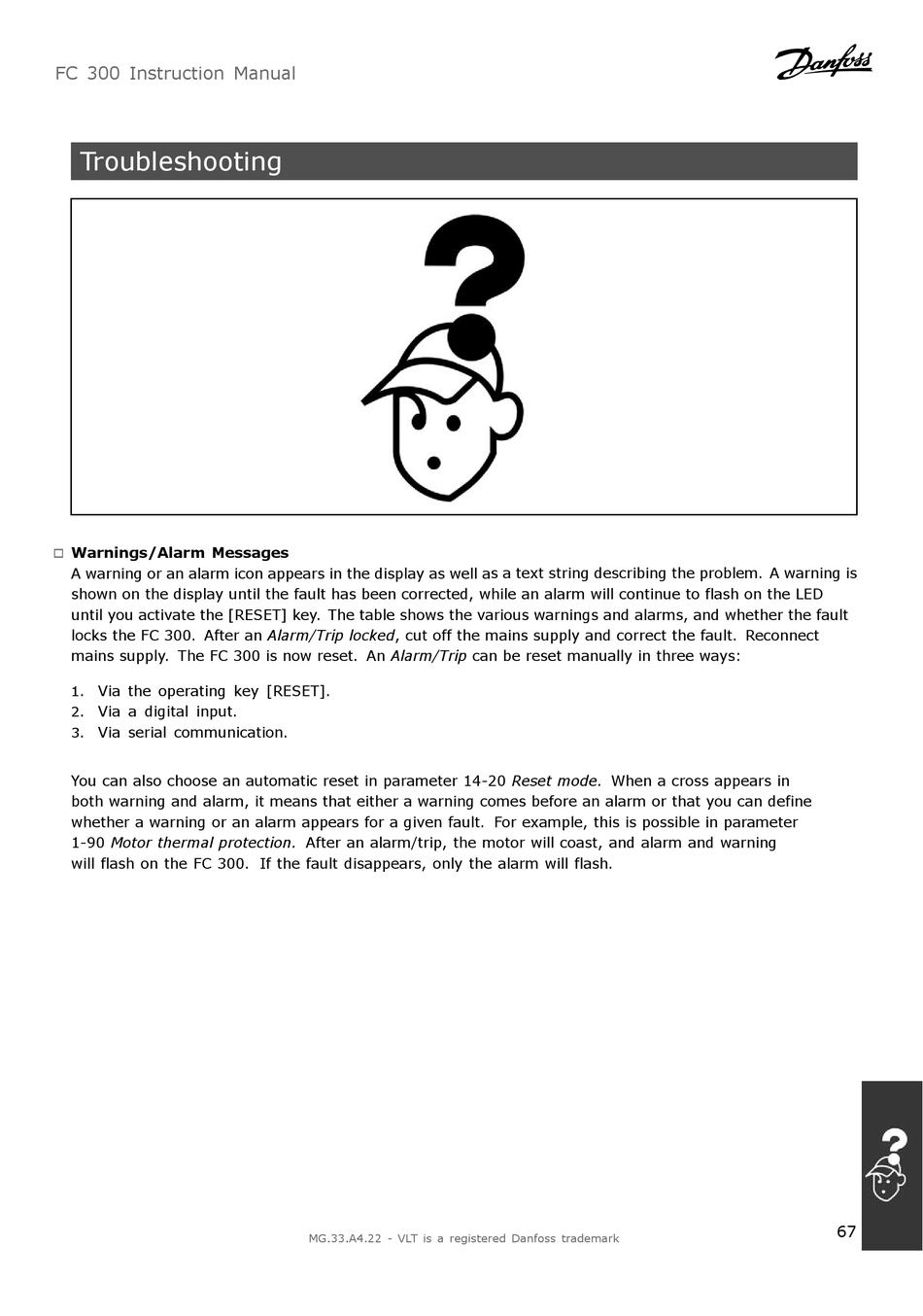

Troubleshooting

Warnings/Alarm Messages

"
A warning or an alarm icon appears in the display as well as a text string describing the problem. A warning is
shown on the display until the fault has been corrected, while an alarm will continue to flash on the LED
until you activate the [RESET] key. The table shows the various warnings and alarms, and whether the fault
locks the FC 300. After an Alarm/Trip locked, cut off the mains supply and correct the fault. Reconnect
mains supply. The FC 300 is now reset. An Alarm/Trip can be reset manually in three ways:
Via the operating key [RESET].
1.
Via a digital input.
2.
3. Via serial communication.
You can also choose an automatic reset in parameter 14-20 Reset mode. When a cross appears in
both warning and alarm, it means that either a warning comes before an alarm or that you can define
whether a warning or an alarm appears for a given fault. For example, this is possible in parameter
1-90 Motor thermal protection. After an alarm/trip, the motor will coast, and alarm and warning
will flash on the FC 300. If the fault disappears, only the alarm will flash.
MG.33.A4.22 - VLT is a registered Danfoss trademark
67
