Push-button 55 / Plus 55 [BE-TA55xx.x2]

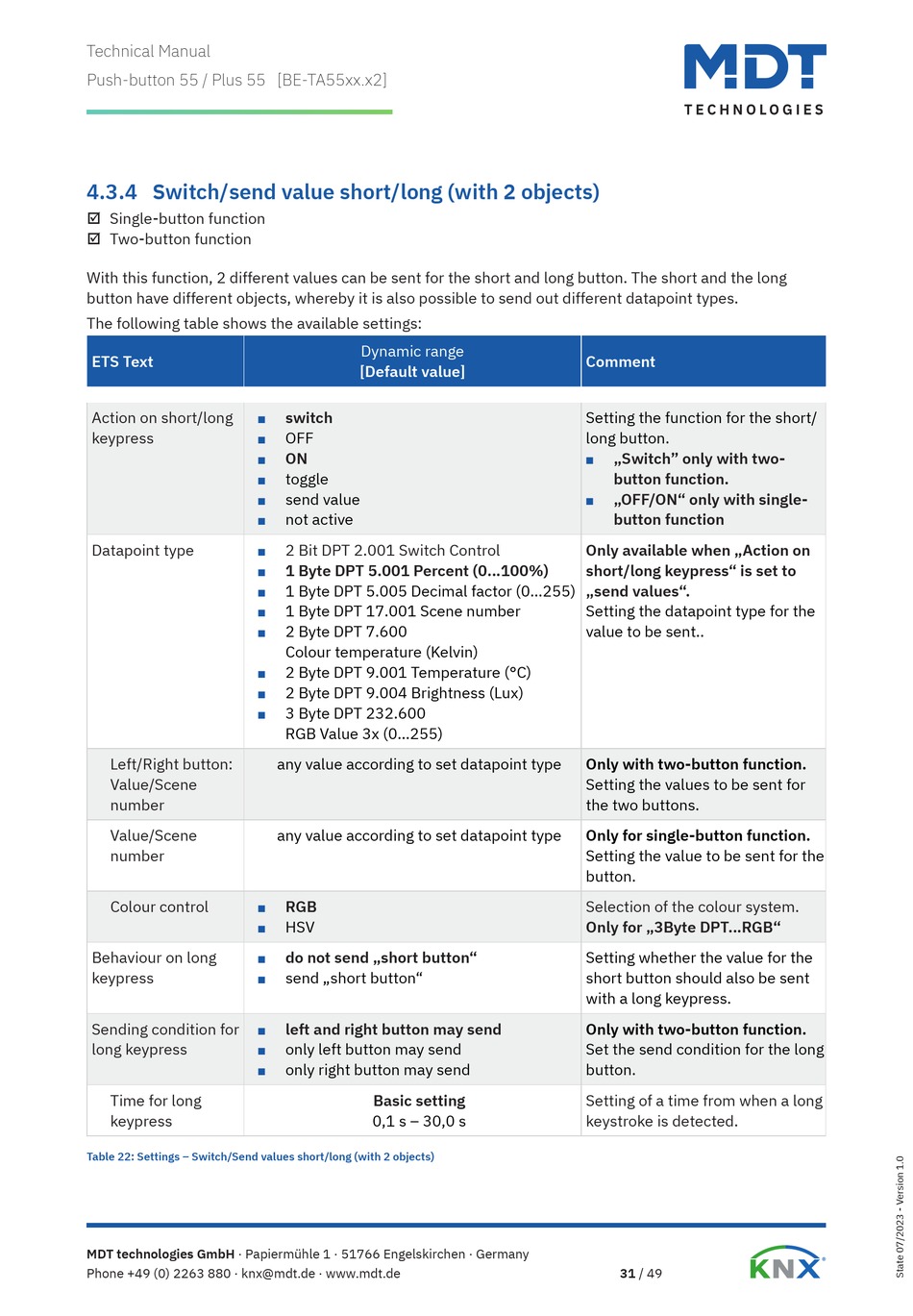

4.3.4 Switch/send value short/long (with 2 objects)

; Single-button function
; Two-button function
With this function, 2 different values can be sent for the short and long button. The short and the long
button have different objects, whereby it is also possible to send out different datapoint types.
The following table shows the available settings:
ETS Text
Action on short/long
■
keypress
■
■
■
■
■
Datapoint type
■
■
■
■
■
■
■
■
Left/Right button:
Value/Scene
number
Value/Scene
number
Colour control
■
■
Behaviour on long
■
keypress
■
Sending condition for
■
long keypress
■
■
Time for long
keypress
Table 22: Settings – Switch/Send values short/long (with 2 objects)
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
switch
OFF
ON
toggle
send value
not active
2 Bit DPT 2.001 Switch Control
1 Byte DPT 5.001 Percent (0...100%)
1 Byte DPT 5.005 Decimal factor (0...255)
1 Byte DPT 17.001 Scene number
2 Byte DPT 7.600
Colour temperature (Kelvin)
2 Byte DPT 9.001 Temperature (°C)
2 Byte DPT 9.004 Brightness (Lux)
3 Byte DPT 232.600
RGB Value 3x (0...255)
any value according to set datapoint type
any value according to set datapoint type
RGB
HSV
do not send „short button"
send „short button"
left and right button may send
only left button may send
only right button may send
Basic setting
0,1 s – 30,0 s
Comment
Setting the function for the short/
long button.
„Switch" only with two-
■
button function.
„OFF/ON" only with single-
■
button function
Only available when „Action on
short/long keypress" is set to
„send values".
Setting the datapoint type for the
value to be sent..
Only with two-button function.
Setting the values to be sent for
the two buttons.
Only for single-button function.
Setting the value to be sent for the
button.
Selection of the colour system.
Only for „3Byte DPT...RGB"
Setting whether the value for the
short button should also be sent
with a long keypress.
Only with two-button function.
Set the send condition for the long
button.
Setting of a time from when a long
keystroke is detected.
31 / 49
