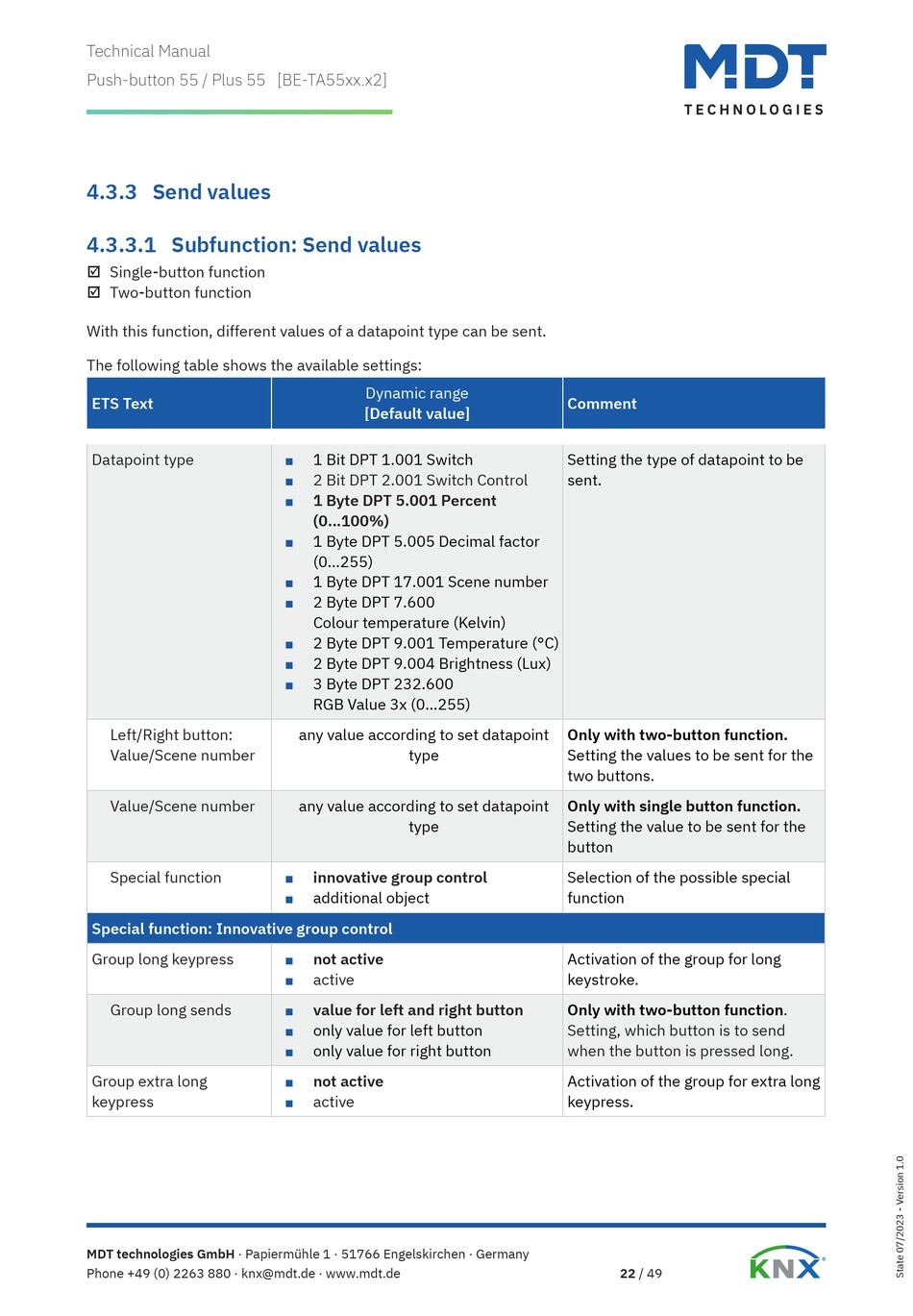

4.3.3 Send values

4.3.3.1 Subfunction: Send values

; Single-button function
; Two-button function
With this function, different values of a datapoint type can be sent.
The following table shows the available settings:
ETS Text
Datapoint type
Left/Right button:
Value/Scene number
Value/Scene number
Special function
Special function: Innovative group control
Group long keypress
Group long sends
Group extra long
keypress
