Technical Manual
Push-button 55 / Plus 55 [BE-TA55xx.x2]

4.3 Button functions

4.3.1 Identical parameter

4.3.1.1 Lock object

The lock object can be activated for grouped buttons as well as for single buttons. If the lock object is
active, a communication object is displayed for the respective button or button pair. Depending on the
device type, up to 8 lock objects can be activated.
If the disable object is assigned a logical "1", the corresponding button is "locked" and can therefore no
longer be switched. A "0" cancels the lock.
The following table shows the associated communication objects:
Number Name / Object function
9 T1: – Lock object
Table 8: Identical communication object – Lock object

4.3.1.2 Button/Object description

A text field is available for each button or button pair for free labelling:

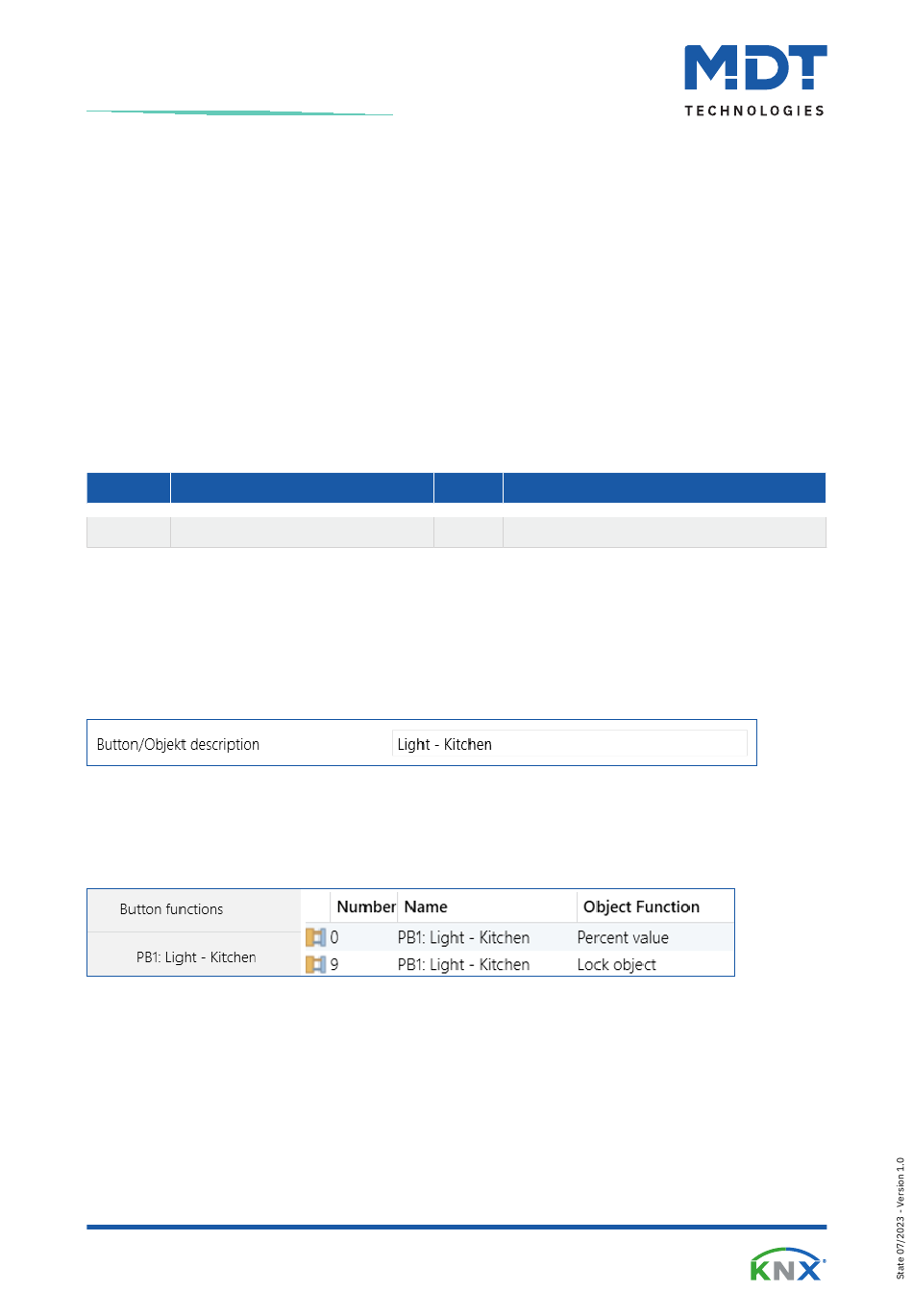

Figure 3: Identical parameter – Text field: Button/Object description
A text with up to 30 characters can be stored for the field.
The text entered in "Button/Object description" appears both in the menu behind the corresponding
functions and with the communication objects of the functions:
Figure 4: Button/Object description
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Length Usage
1 Bit Locks the button function
