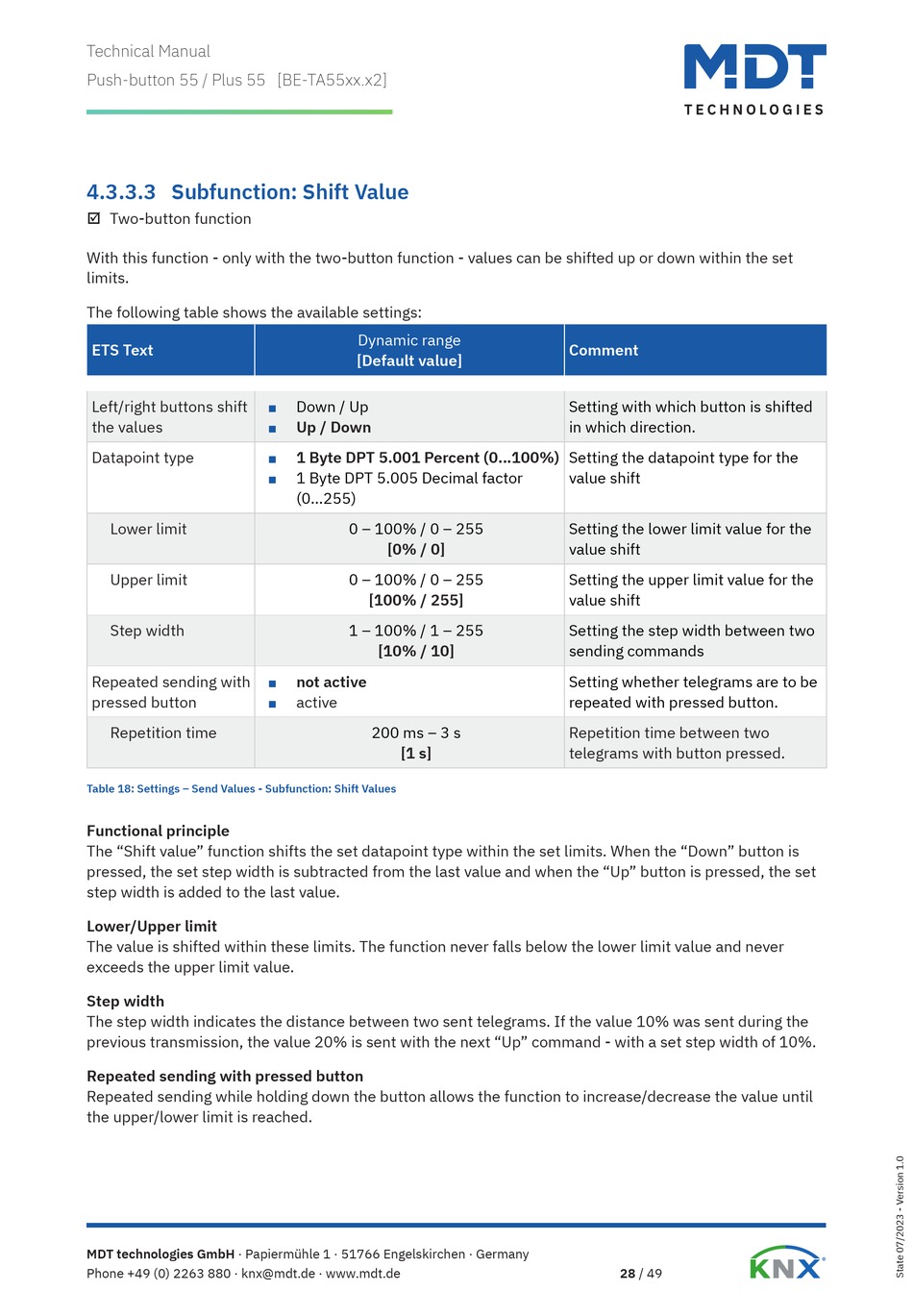

4.3.3.3 Subfunction: Shift Value

; Two-button function
With this function - only with the two-button function - values can be shifted up or down within the set
limits.
The following table shows the available settings:
ETS Text
Left/right buttons shift
the values
Datapoint type
Lower limit
Upper limit
Step width
Repeated sending with
pressed button
Repetition time
Table 18: Settings – Send Values - Subfunction: Shift Values
Functional principle
The "Shift value" function shifts the set datapoint type within the set limits. When the "Down" button is
pressed, the set step width is subtracted from the last value and when the "Up" button is pressed, the set
step width is added to the last value.
Lower/Upper limit
The value is shifted within these limits. The function never falls below the lower limit value and never
exceeds the upper limit value.
Step width
The step width indicates the distance between two sent telegrams. If the value 10% was sent during the
previous transmission, the value 20% is sent with the next "Up" command - with a set step width of 10%.
Repeated sending with pressed button
Repeated sending while holding down the button allows the function to increase/decrease the value until
the upper/lower limit is reached.
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
Down / Up
■
Up / Down
■
1 Byte DPT 5.001 Percent (0...100%)
■
1 Byte DPT 5.005 Decimal factor
■
(0...255)
0 – 100% / 0 – 255
[0% / 0]
0 – 100% / 0 – 255
[100% / 255]
1 – 100% / 1 – 255
[10% / 10]
not active
■
active
■
200 ms – 3 s
[1 s]
Comment
Setting with which button is shifted
in which direction.
Setting the datapoint type for the
value shift
Setting the lower limit value for the
value shift
Setting the upper limit value for the
value shift
Setting the step width between two
sending commands
Setting whether telegrams are to be
repeated with pressed button.
Repetition time between two
telegrams with button pressed.
