Subfunction: Toggle; Subfunction: Send State - MDT Push Button 55 Technical Manual

Technical Manual
Push-button 55 / Plus 55 [BE-TA55xx.x2]

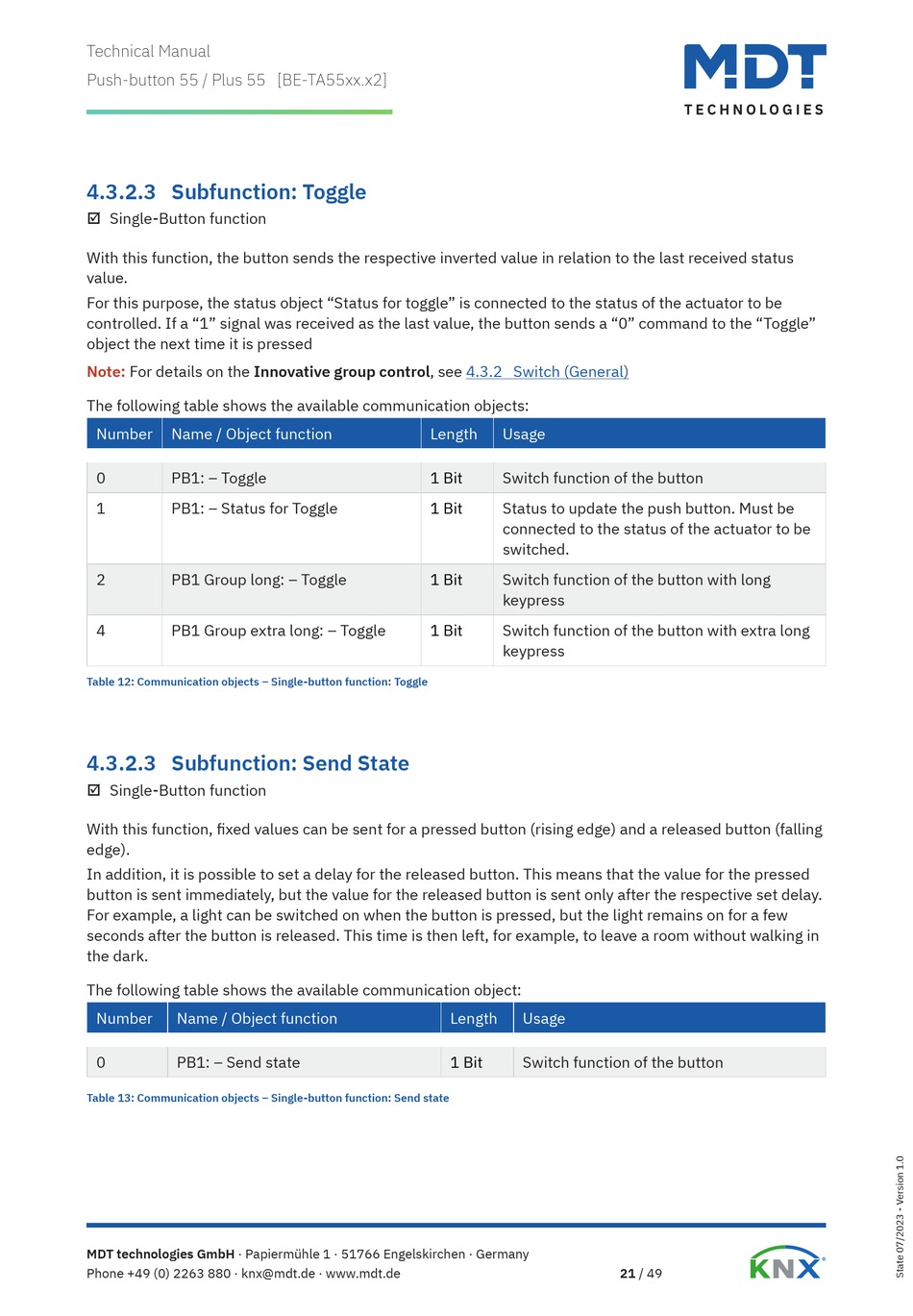

4.3.2.3 Subfunction: Toggle

; Single-Button function
With this function, the button sends the respective inverted value in relation to the last received status
value.
For this purpose, the status object "Status for toggle" is connected to the status of the actuator to be
controlled. If a "1" signal was received as the last value, the button sends a "0" command to the "Toggle"
object the next time it is pressed
Note: For details on the Innovative group control, see
The following table shows the available communication objects:
Number Name / Object function
0 PB1: – Toggle
1 PB1: – Status for Toggle
2 PB1 Group long: – Toggle
4 PB1 Group extra long: – Toggle
Table 12: Communication objects – Single-button function: Toggle

4.3.2.3 Subfunction: Send State

; Single-Button function
With this function, fixed values can be sent for a pressed button (rising edge) and a released button (falling
edge).
In addition, it is possible to set a delay for the released button. This means that the value for the pressed
button is sent immediately, but the value for the released button is sent only after the respective set delay.
For example, a light can be switched on when the button is pressed, but the light remains on for a few
seconds after the button is released. This time is then left, for example, to leave a room without walking in
the dark.
The following table shows the available communication object:
Number Name / Object function
0 PB1: – Send state
Table 13: Communication objects – Single-button function: Send state
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
4.3.2 Switch (General)
Length Usage
1 Bit Switch function of the button
1 Bit Status to update the push button. Must be
connected to the status of the actuator to be
switched.
1 Bit Switch function of the button with long
keypress
1 Bit Switch function of the button with extra long
keypress
Length Usage
1 Bit Switch function of the button
21 / 49
