Push-button 55 / Plus 55 [BE-TA55xx.x2]

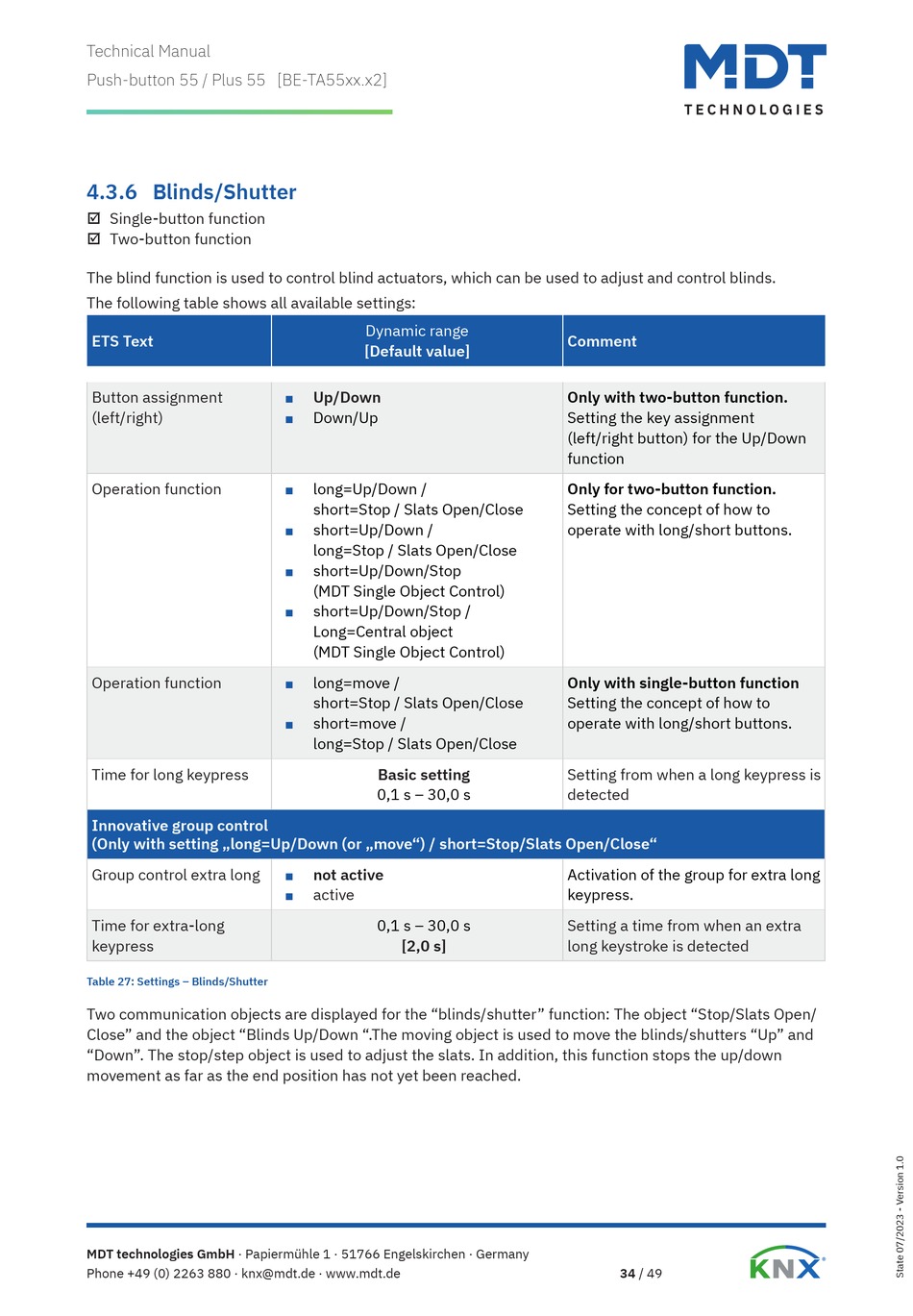

4.3.6 Blinds/Shutter

; Single-button function
; Two-button function
The blind function is used to control blind actuators, which can be used to adjust and control blinds.
The following table shows all available settings:
ETS Text
Button assignment
(left/right)
Operation function
Operation function
Time for long keypress
Innovative group control
(Only with setting „long=Up/Down (or „move") / short=Stop/Slats Open/Close"
Group control extra long
Time for extra-long
keypress
Table 27: Settings – Blinds/Shutter
Two communication objects are displayed for the "blinds/shutter" function: The object "Stop/Slats Open/
Close" and the object "Blinds Up/Down ".The moving object is used to move the blinds/shutters "Up" and
"Down". The stop/step object is used to adjust the slats. In addition, this function stops the up/down
movement as far as the end position has not yet been reached.
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
Up/Down
■
Down/Up
■
long=Up/Down /
■
short=Stop / Slats Open/Close
short=Up/Down /
■
long=Stop / Slats Open/Close
short=Up/Down/Stop
■
(MDT Single Object Control)
short=Up/Down/Stop /
■
Long=Central object
(MDT Single Object Control)
long=move /
■
short=Stop / Slats Open/Close
short=move /
■
long=Stop / Slats Open/Close
Basic setting
0,1 s – 30,0 s
not active
■
active
■
0,1 s – 30,0 s
[2,0 s]
Comment
Only with two-button function.
Setting the key assignment
(left/right button) for the Up/Down
function
Only for two-button function.
Setting the concept of how to
operate with long/short buttons.
Only with single-button function
Setting the concept of how to
operate with long/short buttons.
Setting from when a long keypress is
detected
Activation of the group for extra long
keypress.
Setting a time from when an extra
long keystroke is detected
