Technical Manual
Push-button 55 / Plus 55 [BE-TA55xx.x2]

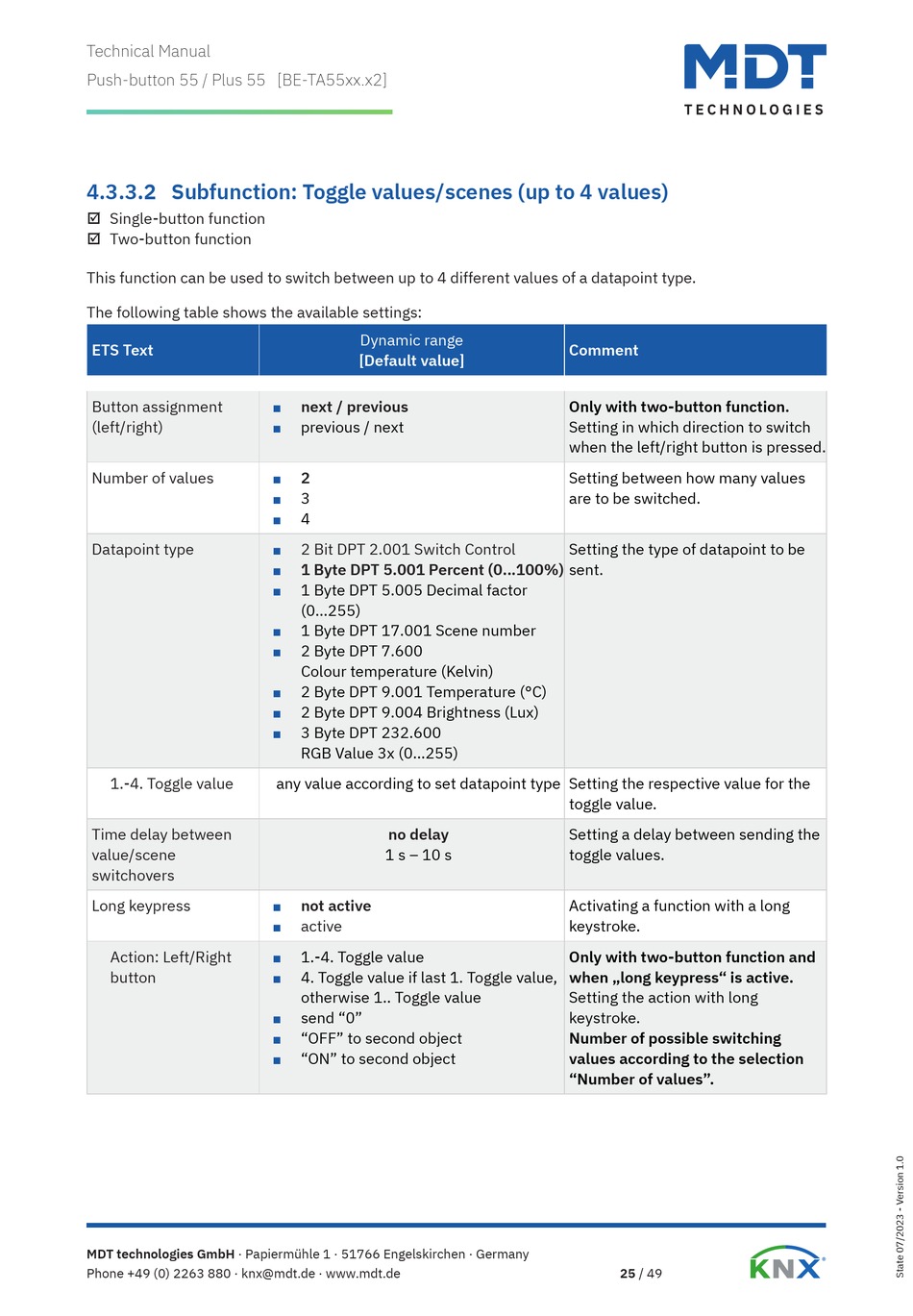

4.3.3.2 Subfunction: Toggle values/scenes (up to 4 values)

; Single-button function
; Two-button function
This function can be used to switch between up to 4 different values of a datapoint type.
The following table shows the available settings:
ETS Text
Button assignment
(left/right)
Number of values
Datapoint type
1.-4. Toggle value
Time delay between
value/scene
switchovers
Long keypress
Action: Left/Right
button
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
next / previous
■
previous / next
■
2
■
3
■
4
■
2 Bit DPT 2.001 Switch Control
■
1 Byte DPT 5.001 Percent (0...100%)
■
1 Byte DPT 5.005 Decimal factor
■
(0...255)
1 Byte DPT 17.001 Scene number
■
2 Byte DPT 7.600
■
Colour temperature (Kelvin)
2 Byte DPT 9.001 Temperature (°C)
■
2 Byte DPT 9.004 Brightness (Lux)
■
3 Byte DPT 232.600
■
RGB Value 3x (0...255)
any value according to set datapoint type Setting the respective value for the
no delay
1 s – 10 s
not active
■
active
■
1.-4. Toggle value
■
4. Toggle value if last 1. Toggle value,
■
otherwise 1.. Toggle value
send "0"
■
"OFF" to second object
■
"ON" to second object
■
Comment
Only with two-button function.
Setting in which direction to switch
when the left/right button is pressed.
Setting between how many values
are to be switched.
Setting the type of datapoint to be
sent.
toggle value.
Setting a delay between sending the
toggle values.
Activating a function with a long
keystroke.
Only with two-button function and
when „long keypress" is active.
Setting the action with long
keystroke.
Number of possible switching
values according to the selection
"Number of values".
25 / 49
