Push-button 55 / Plus 55 [BE-TA55xx.x2]

4.3.2 Switch (General)

; Single-button function
; Two-button function

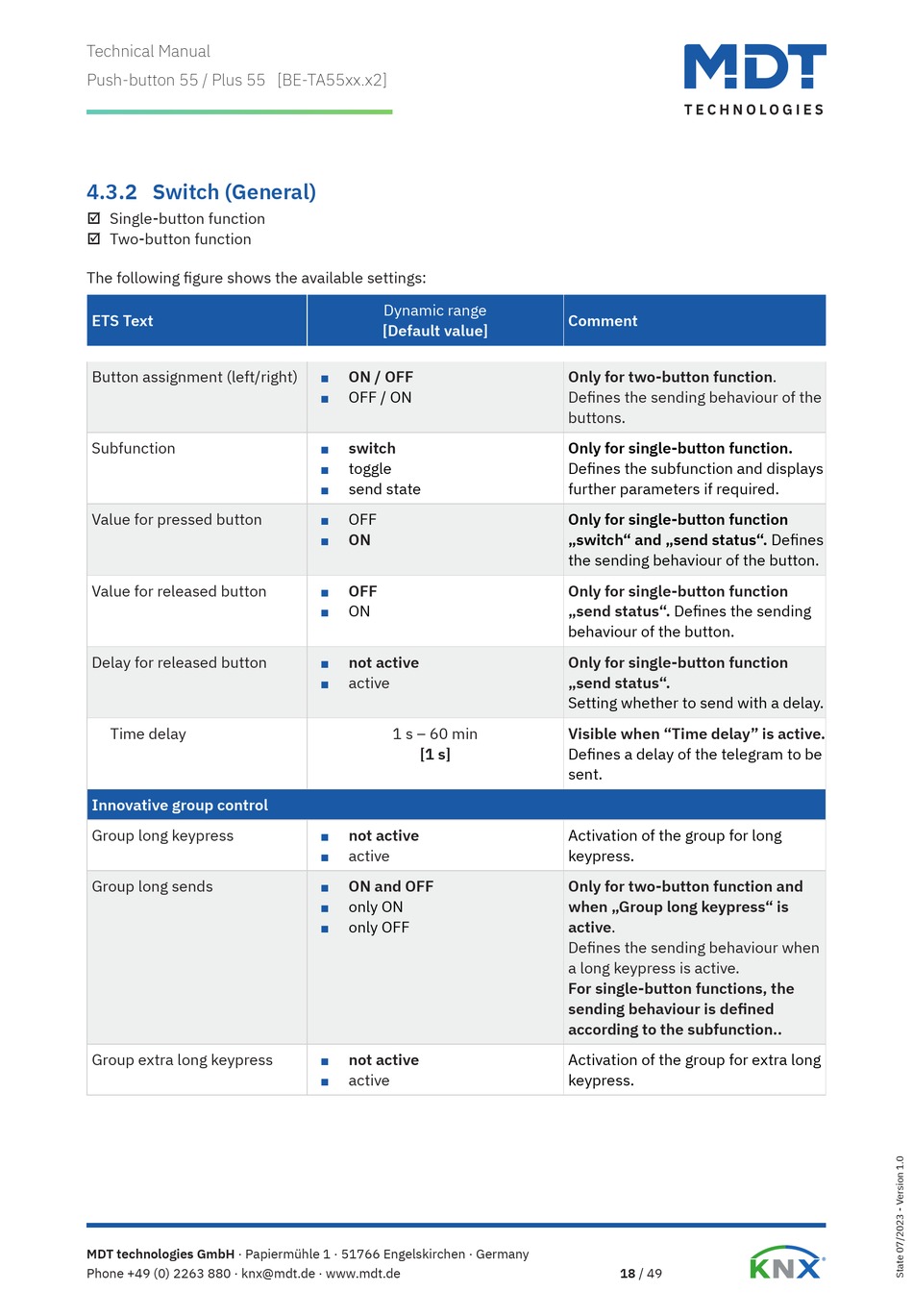

The following figure shows the available settings:
ETS Text
Button assignment (left/right)
Subfunction
Value for pressed button
Value for released button
Delay for released button
Time delay
Innovative group control
Group long keypress
Group long sends
Group extra long keypress
MDT technologies GmbH · Papiermühle 1 · 51766 Engelskirchen · Germany
Phone +49 (0) 2263 880 · knx@mdt.de · www.mdt.de
Dynamic range
[Default value]
ON / OFF
■
OFF / ON
■
switch
■
toggle
■
send state
■
OFF
■
ON
■
OFF
■
ON
■
not active
■
active
■
1 s – 60 min
[1 s]
not active
■
active
■
ON and OFF
■
only ON
■
only OFF
■
not active
■
active
■
Comment
Only for two-button function.
Defines the sending behaviour of the
buttons.
Only for single-button function.
Defines the subfunction and displays
further parameters if required.
Only for single-button function
„switch" and „send status". Defines
the sending behaviour of the button.
Only for single-button function
„send status".
Defines the sending
behaviour of the button.
Only for single-button function
„send status".
Setting whether to send with a delay.
Visible when "Time delay" is active.
Defines a delay of the telegram to be
sent.
Activation of the group for long
keypress.
Only for two-button function and
when „Group long keypress" is
active.
Defines the sending behaviour when
a long keypress is active.
For single-button functions, the
sending behaviour is defined
according to the subfunction..
Activation of the group for extra long
keypress.
18 / 49
