Installing The Adder Modules; Figure 6 Installation Of Adder Modules - Mircom FR-320 Series Installation And Operation Manual

4.3

Installing the Adder Modules

The FR-320 Series panel comes pre-assembled with all components and boards except for
adder modules. Module installation locations are shown below. Refer to Figure 7 on the next
page for Jumper or DIP Switch settings and see Wiring Tables and Information on page 30 for
wiring specifications.
•

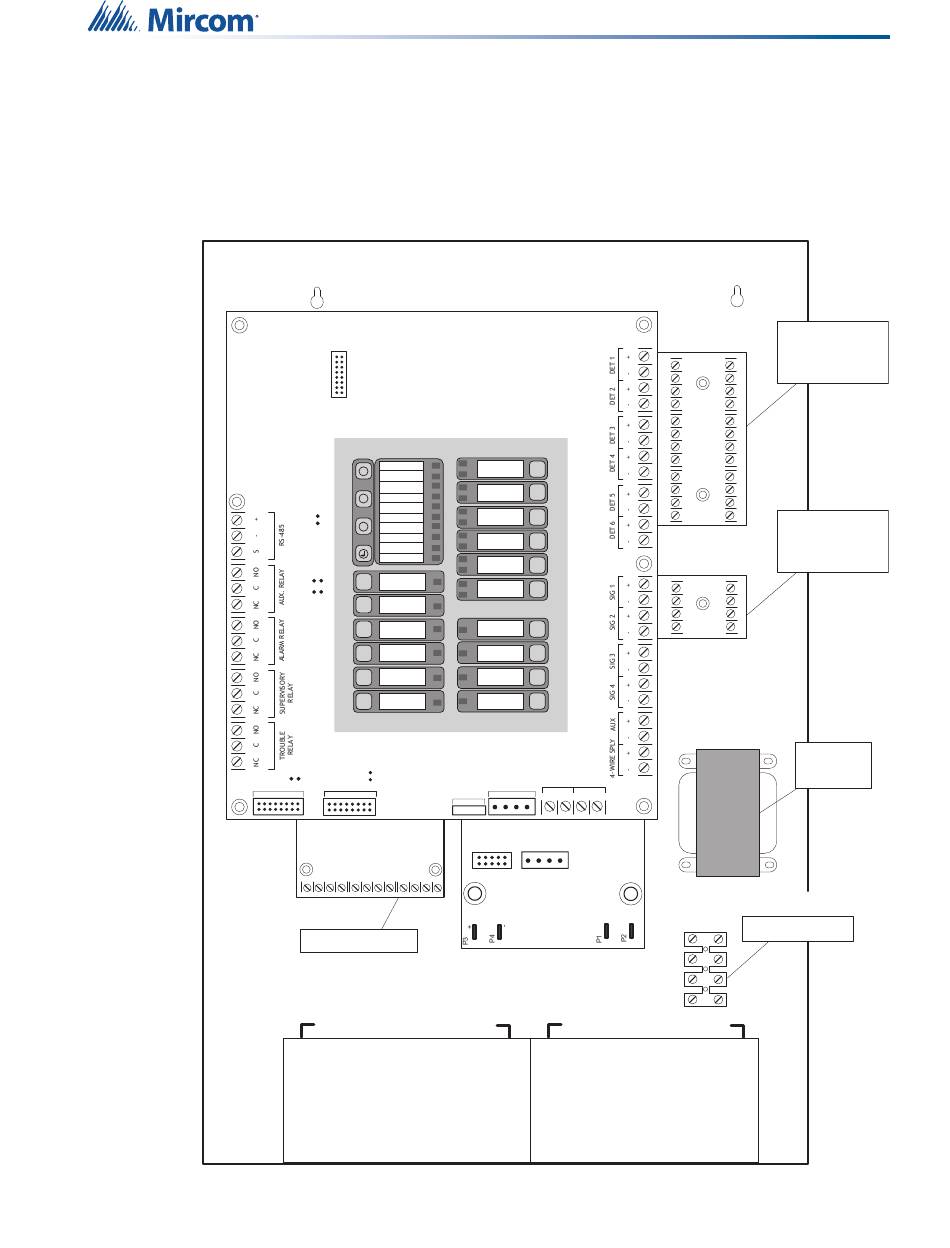

TO PR-300 MO DULE
Figure 6
AC ON
X
COMMON ALARM
COMMON SUPV
M COMMON TROUBLE
BATTERY TROUBLE
JW4 REMOTE TROUBLE
?
GROUND FAULT
CPU FAIL
ABORT
JW7
RELEASED
SYSTEM
JW5
RESET
JW6
SIGNAL
SILENCE
AUXILIARY
DISCONNECT
LAMP
TEST
ALM/SUP/TBL/
BLDG AUDIBLE SIL
PRE
RELEASE
JW2
JW1
TO RM-306 RELAY MOD ULE
P2
Relay Module RM-306
BATTERY
Installation of Adder Modules
IDC 1
IDC 2
IDC 3
IDC 4
IDC 5
IDC 6
NAC 1
NAC 2
RAC 3
RAC 4
RTI PORT UNFLTD SPLY
P1 POWER
SIGNAL
TRB TRL COM- COM+
P6 P5
SEC TX
BATTERY
BATTERY
CLASS-A converter
board for detection
circuits ICAC-306 (6
circuits )
CLASS-A converter
board for indicating
circuits OCAC-302
(2 circuits )
Transformer
AC wiring terminal
17
