4.2
BBX-1024DS and BBX-1024DSR Mechanical Installation
The BBX-1024DS and BBX-1024DSR are suitable for flush or surface mounting, and have a
built-in trim ring.
Dimensions of Enclosure (minus built in trim ring)
Distance between horizontal mounting screws
Distance between vertical mounting screws

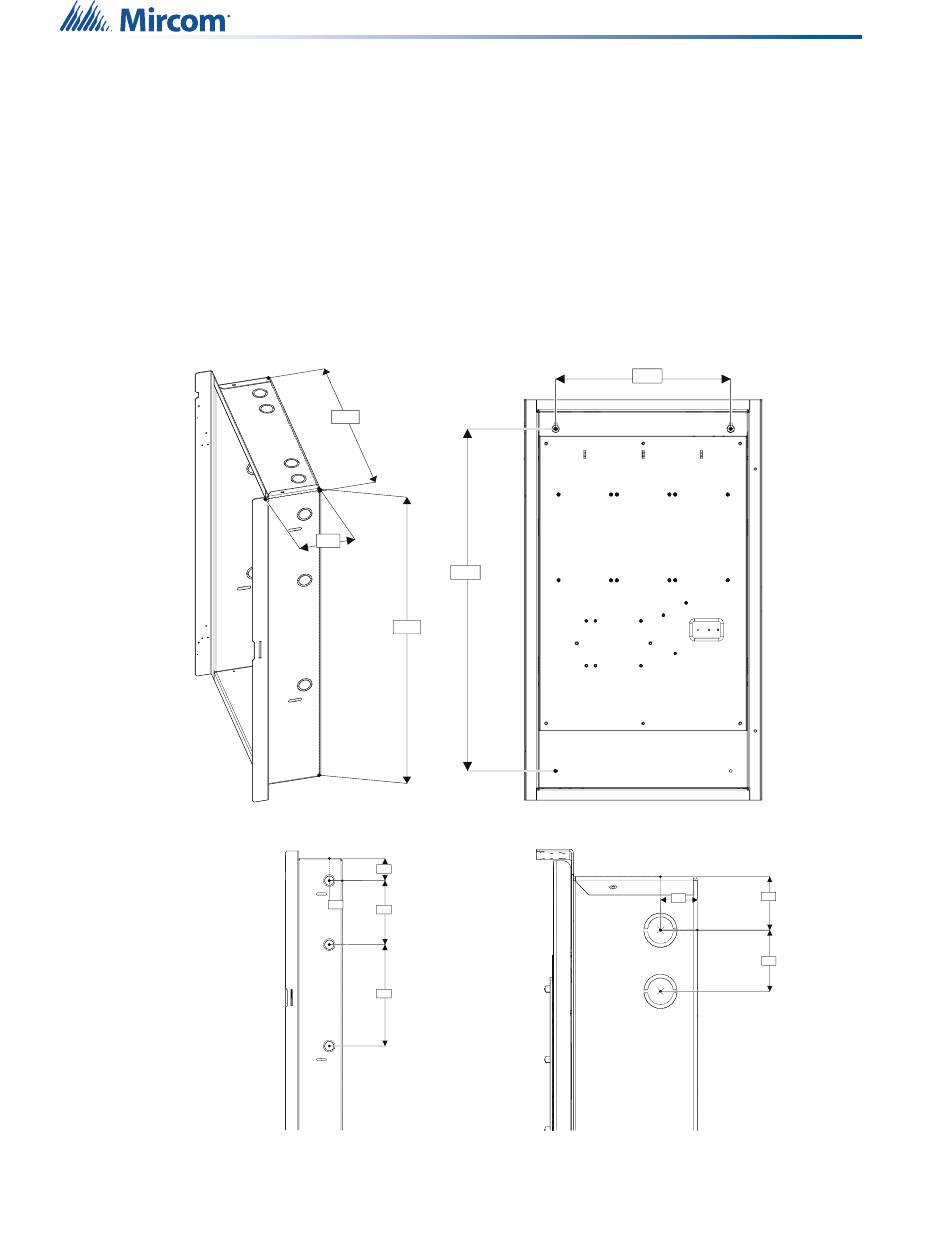

Complete Dimensions of Enclosures
•
External Dimensions
Figure 5
16
14.5 "
4.2 "
26.0 "
Side View
2.1 "
1.3 "
6.0 "
9.5 "
BBX-1024DS and BBX-1024DSR installation instructions and dimensions
Mounting Dimensions
23.5 "
Top View
14 1/2" x 4 1/4" x 26"
12"
23 1/2"
16 3/4" x 5 1/2" x 28"
12.0 "
1.7 "
1.3 "
2.0 "
