FA-1000 SERIES
Microprocessor-Based Fire Alarm Control Panel
Installation and Operation Manual
For the latest compatability information visit www.mircom.com/deviceguide
LT-600 Rev. 18
March 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA-1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mircom FA-1000 Series

Summary of Contents for Mircom FA-1000 Series

  • Page 1 FA-1000 SERIES Microprocessor-Based Fire Alarm Control Panel LT-600 Rev. 18 Installation and Operation Manual March 2016 For the latest compatability information visit www.mircom.com/deviceguide...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Introduction About this Manual ......................About the FA-1000 ......................1.2.1 Overall Features: ......................1.2.2 Controls and Indicators ....................Contact Us ........................1.3.1 General Inquiries ......................1.3.2 Customer Service ......................1.3.3 Technical Support ......................1.3.4 Website ..........................
  • Page 4 Table of Contents 5.1.1 Jumpers ......................... MCC-1024-6, MCC-1024-12 Main Display Module ............5.2.1 Connectors ........................Adder Display Module ....................5.3.1 Connectors ........................DM-1008A Detection Adder Module ................5.4.1 Jumpers ......................... SGM-1004A Signal Adder Module ................. 5.5.1 Jumpers ......................... 5.5.2 Components ........................5.5.3 Operation ........................
  • Page 5 Table of Contents 8.1.8 Automatic Alarm Signal Cancel LED (Acknowledge) ............. 8.1.9 General Alarm LED ......................8.1.10 Configuration / Test Mode LED ..................8.1.11 Auxiliary Disconnect LED ....................8.1.12 Signal Silence LED ......................8.1.13 Battery/Charger Trouble LED ..................8.1.14 Ground Fault LED ......................8.1.15 CPU Fault LED ......................
  • Page 6 Table of Contents Configuring Initiating and Indicating Circuits ..............9.10 Configuring Circuit Correlations ..................9.10.1 Correlation by Input Circuit ..................... 9.10.2 Correlation by Output Circuit ..................9.11 Display Configuration ..................... 10.0 Walk Test Operation 11.0 Appendix A: Compatible Receivers 12.0 Appendix B: RA-1000 Remote Annunciator Panels 12.1 RA-1000 Series ......................
  • Page 7 List of Figures List of Figures Figure 1 BB-1024 Flush or Surface Enclosure Installation and Dimensions ........ Figure 2 BB-1072 Flush or Surface Enclosure Installation and Dimensions ........ Figure 3 BBX-1024DS and BBX-1024DSR Installation Instructions and Dimensions ....Figure 4 Main Chassis Installation ....................
  • Page 8 List of Tables List of Tables Table 1 Main Fire Alarm Module Circuit Details ................Table 2 Cable Connectors and Miscellaneous ................Table 3 UDACT-300A List of LEDs and their Functions ............. Table 4 Jumpers ......................... Table 5 Settings permitted in CAN/ULCS527 ................Table 6 Wiring Table for Input Circuits ..................

  • Page 9: Introduction

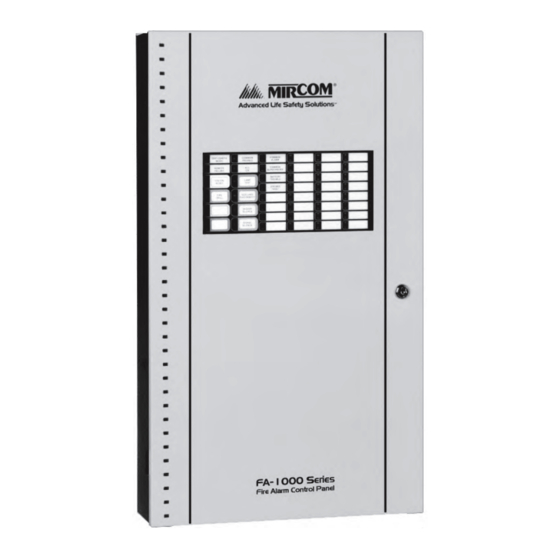

    Fire Alarm Control Panel. About the FA-1000 Mircom's FA-1000 Fire Alarm Control Units provide a large capacity of supervised Class A or B (Style D or B) initiating circuits and supervised Class A or B (Style Z or Y) indicating circuits.

  • Page 10: Contact Us

    For General Inquiries, Customer Service and Technical Support you can contact us Monday to Friday 8:00 A.M. to 5:00 P.M. E.S.T. 1.3.1 General Inquiries Toll Free 1-888-660-4655 (North America Only) Local 905-660-4655 Email mail@mircom.com 1.3.2 Customer Service Toll Free 1-888-MIRCOM5 (North America Only) Local 905-695-3535 Toll Free Fax 1-888-660-4113 (North America Only)

  • Page 11: System Components

    System Components System Components Chassis Model Description ECH-1048 48 zone extension chassis. Main Chassis with eight Style B / four Style D MCC-1024-6 initiating circuits, four Style Y or Z indicating (add suffix S for circuits, and a six ampere power supply. For more slide switch information see 13.0 Appendix C: model)

  • Page 12: Circuit Adder Modules

    System Components Circuit Adder Modules Model Description DM-1008A Eight detection circuit modules SGM-1004A Four signal circuit modules RM-1008A Eight relay circuit modules Auxiliary Models Model Description PR-300 Polarity Reversal and City Tie Module Enclosures Model Description BB-1024 (add suffix “R” for red Surface enclosure 24 circuits enclosure) BB-1072 (add...

  • Page 13: Flush Trim Rings

    System Components Model Description BBX-1024DS Universal Enclosure, white door. BBX-1024DSR Universal Enclosure, red door. Flush Trim Rings Model Description FA-UNIV-TRB (add suffix “R” Flush trim ring in Black for red enclosure) FA-1072TR (add another Flush trim ring suffix R for red enclosure) Batteries Model...

  • Page 14: Remote Annunciators

    System Components Remote Annunciators Model Description RA-1000 Series Remote multiplex annunciator panels UP TO UP TO UP TO 32 ZONES 80 ZONES 128 ZONES FA-1000 Fire Alarm Control Panel Kits For any other sizes, etc., components are ordered separately. Model Description Expandable kit for the Canadian market.
  • Page 15 System Components The "S" Version Chassis have slide switches instead of DIP switches for disconnects. The maximum number of each circuit adder module type is outlined in the following table. Module Description Maximum Total System Eight detection circuit modules (total of 64 DM-1008A initiating circuits in a system).

  • Page 16: Mechanical Installation And Dimensions

    Mechanical Installation and Dimensions Mechanical Installation and Dimensions Install the enclosure as shown for the BB-1024 in Figure 1, or for the BB-1072 in Figure 2 on page 17. BB-1024 Installation MATERIAL: 18GA (0.048") THICK COLD ROLLED STEEL FINISH: PAINTED “...

  • Page 17: Bb-1072 Installation

    Mechanical Installation and Dimensions BB-1072 Installation 7-9/16" BACKBOX 1-1/4" MATERIAL:16GA (0.059") THICK COLD ROLLED STEEL FINISH: PAINTED DOOR DOOR FLUSH TRIM BACKBOX WALL WALL SURFACE FLUSH (SIDE VIEW) (SIDE VIEW) 1-1/8" & 7/8" KNOCKOUTS 3-1/8" 22-1/4" 2" TYP. 16" 24-3/4" 22-13/16"...

  • Page 18: Bbx-1024Ds And Bbx-1024Dsr Mechanical Installation

    Mechanical Installation and Dimensions BBX-1024DS and BBX-1024DSR Mechanical Installation The BBX-1024DS and BBX-1024DSR are suitable for flush or surface mounting, and have a built-in trim ring. Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26” Distance between horizontal mounting screws 12”...

  • Page 19: Main Chassis Installation

    Mechanical Installation and Dimensions Main Chassis Installation To install the main chassis 1. Install the main chassis in the BB-1024 backbox as shown in Figure 4 below, using the supplied hex-nuts. 2. Group the incoming wires through the top of the enclosure to prepare them for wiring the modules.

  • Page 20: Main And Expander Chassis Installation

    Mechanical Installation and Dimensions Main and Expander Chassis Installation To install the expander chassis 1. Install the main and expander chassis into the BB-1072 enclosure, as shown in Figure 5, using the supplied hex-nuts. 2. Group the incoming wires through the top of the enclosure to prepare them for wiring the modules.

  • Page 21: Module Mounting Locations

    Module Mounting Locations Module Mounting Locations The main chassis in a BB-1024 or BB-1072 enclosure comes pre-assembled with all power supply, main panel, and display components and boards. The expander chassis is equipped with a pre-assembled display board. The PR-300 City Tie Module or the UDACT-300A Digital Communicator may be added on the left side, as shown in Figure 8 on page 24.

  • Page 22: Bb-1024 And Bb-1072 Main Chassis Mounting Locations

    Module Mounting Locations BB-1024 and BB-1072 Main Chassis Mounting Locations PR-300 city tie module (see Notes below) #6-32 x ” screw UDACT-300A Dialer Module (see Notes below) Other Circuit Adder Other Circuit Module Adder #6-32 x 1 ” M/F hex spacer BB-1024 and BB-1072 Main Chassis Mounting Locations Figure 6...

  • Page 23: Bb-1072 Expansion Chassis Mounting Locations

    Module Mounting Locations BB-1072 Expansion Chassis Mounting Locations The BB-1072 enclosure with an ECH-1048 expander chassis is equipped with two long extension cables: one for the 26-pin ribbon cable (MD-575) and one for the four-wire power cable (MD-580). Circuit adder modules are installed from right to left in two tiers (back then front).

  • Page 24: Circuit Adder Mounting Details

    Module Mounting Locations Circuit Adder Mounting Details Expander Chassis ECH-1048 Place continuity jumper on last Provision for Main Chassis board PR-300 or MCC-1024-6 or UDACT-300A MCC-1024-12 MD-575 MD-580 MD-575 MD-580 MD-579 MD-575 Long Ribbon Cable MD-579 Short Power Cable MD-580 Long Power Cable Figure 8 Circuit Adder Mounting Details...

  • Page 25: Module Settings

    Module Settings Module Settings Main Fire Alarm Module RS-485 connection FIELD WIRING TERMINALS for future expansion Connector for PR-300 Module or UDACT-300A Remove these jumpers to program Class B Connector for circuit adder modules MAIN FIRE ALARM BOARD Power connector for adder modules Factory connection to Connector for display module...

  • Page 26: Mcc-1024-6, Mcc-1024-12 Main Display Module

    Module Settings MCC-1024-6, MCC-1024-12 Main Display Module COMMON TEST/CONFIG COMMON ZON E ALARM MODE TROUBLE REMOTE COMMON A.C. ZON E FAILURE SUPERVISORY BATTERY/ ZON E CHARGER SYSTEM LAMP TROUBLE RESET TEST CPU FAULT ZON E GROUND FAULT FIRE AUXILIARY DRILL SIGNAL 1 ZON E DISCONNECT...

  • Page 27: Connectors

    Module Settings 5.2.1 Connectors Cable connects to of main fire alarm module. Connection to of ECH-1048 display Module if used. SW1 to See 9.0 System Configuration on page 60 and 8.0 Indicators, Controls, and Operation on page 49. Note: The main display module comes with a Label Sheet (NP-2854) including both English and French slide-in labels.

  • Page 28: Adder Display Module

    Module Settings Adder Display Module Zone 25 Zone 33 Zone 41 Zone 49 Zone 57 Zone 65 Zone 26 Zone 34 Zone 42 Zone 50 Zone 58 Zone 66 Zone 27 Zone 35 Zone 43 Zone 51 Zone 59 Zone 67 Zone 28 Zone 36 Zone 44...

  • Page 29: Dm-1008A Detection Adder Module

    Module Settings DM-1008A Detection Adder Module Data cable to P5 of main Power connector to P6 of fire alarm module or to main fire alarm module or previous adder module. to previous adder module. Data connector for Power connector for next adder module.

  • Page 30: Sgm-1004A Signal Adder Module

    Module Settings SGM-1004A Signal Adder Module ZONE 4 1 2 3 Power connector to Data cable to P5 of main P6 of main fire alarm fire alarm module or to module or to previous ZONE 3 previous adder module adder module ZONE 2 Power connector for Data connector for next...

  • Page 31: Operation

    Module Settings 5.5.3 Operation There are three modes of operation for this module. The basic mode of operation does not involve any bell cut relay or isolators connected to the signal zones. For this case, leave jumpers JW2, JW3, JW4 and JW5 as they come on pins 2 and 3, and do not make any connection to terminal block J11.

  • Page 32: Rm-1008A Relay Adder Module

    Module Settings RM-1008A Relay Adder Module Data cable to P5 of main Power connector to fire alarm module or to P6 of main fire alarm previous adder module module or to previous adder module Data connector for next Power connector for adder module next adder module Figure 15...

  • Page 33: Udact-300A Digital Communicator Module

    ALARM CONTROL PANEL Figure 16 Digital Communicator Module (Model UDACT-300A) Table 2 Cable Connectors and Miscellaneous Ribbon Cable for connecting to Mircom Fire Alarm Control Panel (FACP). RS-232C/RS-485 Connection for computer configuration. Connector for CFG-300 Configuration Tool. Lamp Test UDACT-300A Press and hold this button to test all the LEDs and LCD display.

  • Page 34: Figure 17 Polarity Reversal And City Tie Module (Model Pr-300)

    Module Settings Table 3 UDACT-300A List of LEDs and their Functions (Continued) CPU Fail Steady amber for any on board CPU trouble. Telephone Telephone status indicator LED; Red when the line is in use, Amber when there is a line Line 1 trouble.

  • Page 35: Jumper And Connector

    Module Settings 5.7.1 Jumper and connector Cable to P2 of main fire alarm module. Jumper on the main fire alarm module must be removed if a city tie module is installed. The alarm transmit signal to the PR-300 can be programmed to turn off when signal silence is active.

  • Page 36: Field Wiring

    Field Wiring Field Wiring Table 5 Settings permitted in CAN/ULCS527 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in CAN/ULCS527, Standard for Control Units for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 37: Figure 18 Main Fire Alarm Module Terminal Connections

    LEGEND: (POWER LIMITED) 3.9K 1/2W ELR LISTED S5434 MODEL MP-300 MANUFACTURED BY MIRCOM Figure 18 Main Fire Alarm Module Terminal Connections Attention: Do not exceed 5 amps total current for main chassis MCC-1024-6(S) indicating circuits, and 10 amps for main chassis MCC-1024-12(S).

  • Page 38: Figure 19 Main Fire Alarm Module Terminal Connections (Continued)

    Bell, horn, or strobe 3.9K 1/2W ELR listed S5434 model Pull Station MP-300 manufactured by Mircom Figure 19 Main Fire Alarm Module Terminal Connections (continued) Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.

  • Page 39: Detection Module (Dm-1008A) Terminal Connections

    Figure 20 Detection Module (DM-1008A) Terminal Connections Notes: Initiating circuits in an FA-1000 Series Fire Alarm Panel must all be either Class B (Style B) or Class A (Style D). If Class A (Style D) is selected, the number of circuits is cut in half.

  • Page 40: Signal Module (Sgm-1004A) Terminal Connections

    LEGEND: (SEE LT-1007 FOR COMPATIBLE DEVICES) BELL, HORN, OR STROBE 3.9K 1/2W ELR LISTED S5434 MODEL MP-300 MANUFACTURED BY MIRCOM Figure 21 Signal Module (SGM-1004A) Terminal Connections Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.

  • Page 41: Relay Module (Rm-1008A) Terminal Connections

    Field Wiring Relay Module (RM-1008A) Terminal Connections Wire devices to terminals as shown in Figure 22 below. For more information see 6.9 Wiring Tables and Information on page 46, 13.0 Appendix C: Specifications on page 75, and LT-1007, Conventional Device Compatibility Guide. AUX RELAY 5 AUX RELAY 1 CONTACTS...

  • Page 42: Udact-300A Main Board Terminal Connections

    Field Wiring UDACT-300A Main Board Terminal Connections Wire the two telephone line devices to terminals as shown below in Figure 23 below. The UDACT-300A terminals are located on the top left hand corner of the board. If using a cellular or wireless service, use the Line 2 interface connection only. RING Public switch Telephone company...

  • Page 43: Pr-300 Polarity Reversal And City Tie Module Terminal Connections

    Field Wiring PR-300 Polarity Reversal and City Tie Module Terminal Connections Wire as shown below in Figure 24 using proper wire gauges. For more information see Appendix C: Specifications on page 75. For use in the U.S.A., the installer must add an Atlantic Scientific (Tel. 407-725-8000) Model #24544 Protective Device, or similar UL-Listed QVRG Secondary Protector, as shown.

  • Page 44: Power Supply Connections

    Field Wiring Power Supply Connections The power supply is part of the main chassis. The ratings are outlined in the table below. Model Electrical Input Ratings Power Supply Battery Fuse on Main Total Current Module MCC-1024-6(S) 120 VAC, 60 Hz / 240 VAC, 50Hz 6 amps maximum ¼...

  • Page 45: Connecting To A Dcs Surguard Receiver

    Field Wiring Connecting to a DCS SurGuard Receiver A typical connection is shown in Figure 26. For information on Compatible DACR Receivers see 11.0 Appendix A: Compatible Receivers on page 73. To GSM/GPRS Telephone Telephone Line A Line B Connection Connection Internet Line 1...

  • Page 46: Wiring Tables And Information

    Field Wiring Wiring Tables and Information Table 6 Wiring Table for Input Circuits Wire Gauge Maximum Wiring Run to Last Device (ELR) (AWG) 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Note: Maximum loop resistance should not exceed 100 Ohms. Main board SGM-1004A indicating circuits are rated for 1.7 amps each.

  • Page 47: System Checkout

    System Checkout System Checkout Before Turning the Power On 1. To prevent sparking, do not connect the batteries. Connect the batteries after powering the system from the main AC supply. 2. Check that all modules are installed in the proper location with the proper connections. 3.
  • Page 48 System Checkout Message Description Configuration If the Test/Config Mode LED is illuminated steadily, the system is in either Mode configuration mode or walk test mode. If the LED is flashing, the configuration has been corrupted and has been reset to defaults; you must therefore review / re-enter your configuration.

  • Page 49: Indicators, Controls, And Operation

    The label paper for the main display includes English and French versions (Mircom #NP-2854, NP-680). Two slide-in labels are also included for single-stage and two-stage operation. For the adder display, the labels are blank (Mircom #NP-681).

  • Page 50: Common Indicators

    Indicators, Controls, and Operation Common Indicators 8.1.1 Buzzer The buzzer is activated by any of the following: • Fire alarm: steady • Supervisory alarm: fast flash rate • Trouble: trouble flash rate If the buzzer turns on in response to a non-latching trouble or supervisory, it will turn off if the condition causing it to sound goes away and there is no other reason for it to be on.

  • Page 51: General Alarm Led

    Indicators, Controls, and Operation 8.1.9 General Alarm LED The red General Alarm LED illuminates steadily after the General Alarm button is pressed, a general alarm initiating circuit is activated, or the Auto General Alarm timer times out. Once the General Alarm LED turns on, it will stay active until the panel is reset. 8.1.10 Configuration / Test Mode LED The amber Configuration / Test Mode LED illuminates steadily to indicate that the panel is in either walk test or configuration mode.

  • Page 52: Common Controls

    Indicators, Controls, and Operation Common Controls 8.2.1 System Reset Button (White) The System Reset button resets the fire alarm control panel and all circuits: • Resets all latching trouble • Resets all initiating circuits conditions • Resets four-wire smoke supply •...

  • Page 53: Alm/Sup/Tbl/Bldg Audible Sil Button (Blue)

    Indicators, Controls, and Operation 8.2.8 Alm/Sup/Tbl/Bldg Audible Sil Button (Blue) Activation of the Alm/Sup/Tbl/Bldg Audible Sil button while the buzzer is sounding silences the buzzer. The buzzer will resound if there is a subsequent event. Pressing the button when the buzzer is not sounding has no effect.

  • Page 54: Trouble-Only Circuit Indicators

    Indicators, Controls, and Operation • The Circuit Status LED turns on steady amber when the corresponding circuit is in alarm. This LED will also flash at the fast flash rate while an active circuit is being reconnected. 8.3.4 Trouble-Only Circuit Indicators The operation of trouble-only circuit indicators applies to initiating circuits configured as trouble-only circuits.

  • Page 55: Two Stage Operation

    Indicators, Controls, and Operation • The buzzer sounds steadily • If fire drill is active, it is cancelled • The Common Alarm LED turns on • The Common Alarm relay activates if Aux disconnect is not active • The Auto Signal Silence timer, if configured, starts. For Canadian installations, disable the Auto Signal Silence timer.

  • Page 56: Circuit Types

    Indicators, Controls, and Operation • Non-disconnected signal circuits programmed to that circuit are activated with the alert code (for more information see Indicating (Signal) Circuit Types on page 58) • The Auto General Alarm timer, if configured, starts Subsequent First Stage alarms when the panel is already in alarm, cause the following: •...

  • Page 57: Initiating (Detection) Circuit Types

    Indicators, Controls, and Operation 8.7.1 Initiating (Detection) Circuit Types Table 8 Initiating (Detection) Circuit Types Circuit Type Description Non-Verified This is a "normal" type of alarm which may have pull stations, smoke detectors, or heat Alarm detectors attached. Any activation of these devices will immediately result in an alarm condition in the fire alarm control panel.

  • Page 58: Indicating (Signal) Circuit Types

    (open-circuit). Trouble-Only This circuit is used for monitoring a trouble condition from an external device such as a Mircom Series 500 Audio System. Both open and short circuits generate a non- latching trouble condition. 8.7.2 Indicating (Signal) Circuit Types...

  • Page 59: Figure 28 Evacuation Codes

    Indicators, Controls, and Operation Continuous Temporal Code 0.5s 1.5s 0.5s 0.5s March Code 0.5s California Code 0.5s Alert Code 2.5s Figure 28 Evacuation Codes...

  • Page 60: System Configuration

    System Configuration System Configuration Table 10 Settings permitted in UL864 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in UL864, Control Units and Accessories for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 61: Three Buttons And Led Indicators Are Used In Configuration Mode

    System Configuration 9.1.1 Three buttons and LED indicators are used in configuration mode Automatic Alarm Signal This becomes a "Select Setting" button and the LED indicator may Cancel (yellow show the current status of a function. button) General Alarm This becomes a "Confirmation" button for some functions, used (red button) together with the Yellow Button.

  • Page 62: Configuration Dip Switch Functions

    System Configuration Configuration DIP Switch Functions Table 12 Configuration DIP Switch Functions DIP Switch Function Button Description Position (1-8) Number Operations 0000 0000 None Normal Operation (not in configuration mode) Features 0000 0001 Yellow Select Style D/B (Class A/B) Initiating Circuits 0000 0010 Yellow Manual Signal Silence Enable...

  • Page 63: Entering Configuration Mode

    System Configuration Table 12 Configuration DIP Switch Functions (Continued) DIP Switch Function Button Description Position (1-8) Number Operations 0010 1000 Yellow Trouble Only Indicating Circuits/Signal Zones 0011 0000 Yellow Silenceable 0011 0001 Yellow Non-Silenceable 0011 0010 Yellow Silenceable Strobes 0011 0011 Yellow Non-Silenceable Strobes Relays...

  • Page 64: Exiting Configuration Mode

    System Configuration that configuration changes take effect immediately as they are made, there is no "undo" function. Note: Write down the configuration changes that you make and store them with the panel, so that you can refer to them later. Exiting Configuration Mode To exit configuration mode after all desired changes are made, all configuration DIP switches must be returned to a "0"...

  • Page 65: Class B (Style B) Restore Defaults

    System Configuration 9.6.1 Class B (Style B) Restore Defaults 1. Set the Config DIP switch to 0111 1111 (restore defaults). Wait five seconds. 2. Press the yellow and red buttons together for five seconds. Wait five seconds. 3. Set the Config DIP switch to 0000 0001 (select Class/Style). Wait five seconds. 4.

  • Page 66: Configuration Features

    System Configuration Configuration Features There are two types of features: those that can be turned on and off, and those with multiple settings. For on and off features, press the yellow button to toggle the settings on or off. The yellow LED is illuminated for ON, and not illuminated for OFF.
  • Page 67 System Configuration Table 13 Configuration Features (Continued) DIP Switch Features Description Position (1-8) 0001 0010 Signal Circuit Isolator An illuminated yellow LED indicates that if a short circuit Option exists on any indicating circuit and an alarm condition follows, then those indicating circuits will be activated anyway.

  • Page 68: Configuring Initiating And Indicating Circuits

    System Configuration Table 13 Configuration Features (Continued) DIP Switch Features Description Position (1-8) 0000 1111 PR-300/DACT alarm An illuminated yellow LED indicates that the alarm transmit Transmit Silence signal from the PR-300 or DACT will be silenceable with the Option activation of the signal silence button.

  • Page 69: Configuring Circuit Correlations

    System Configuration Table 14 Configuring Initiating and Indicating Circuits Config DIP Switch Initiating Circuit (Detection Config DIP Switch Indicating Circuit (Signal Position (1-8) Zone) Type Position (1-8) Zone) Type 0010 0000 Normal (Non-Verified Alarm) 0011 0000 Silenceable Audible Signal 0010 0001 0011 0001 Non-Silenceable Audible Verified Alarm...

  • Page 70: Correlation By Input Circuit

    System Configuration With the factory default configuration, all outputs are configured to activate with any inputs configured as alarms. If output circuit correlations are enabled (see 9.8 Configuration Features on page 66), outputs must be configured to one or more inputs to activate at all. This configuration is referred to as a correlation.

  • Page 71: Display Configuration

    System Configuration Notes: The feature called “Output Circuit Correlations Enabled” must be ON for indicating circuit correlations to operate (see 9.8 Configuration Features on page 66), otherwise all indicating circuits will be common alarm. This means that they will all activate with any input circuits configured as alarms. Relay circuits are always enabled for correlations.

  • Page 72: Walk Test Operation

    Walk Test Operation 10.0 Walk Test Operation A walk test allows you to verify the initiating circuit wiring in a system. The walk test is a special configuration mode function (function 80 on the configuration DIP switches). Circuits to be tested are identified using the circuit disconnect switches. Activation of any initiating circuit that has been selected for the walk test will cause the audible indicating circuits (not strobes) to activate briefly for a number of short bursts corresponding to the selected circuit number.

  • Page 73: Appendix A: Compatible Receivers

    Appendix A: Compatible Receivers 11.0 Appendix A: Compatible Receivers The dialers that are built into select models of the FA-1000 Series Fire Alarm Control Panels are compatible with the following Digital Alarm Communicator Receivers (DACR): DACR Receiver Model Protocols SurGard MLR2 Multi-Line Receiver (ULC, ULI approved)

  • Page 74: Appendix B: Ra-1000 Remote Annunciator Panels

    12.1 RA-1000 Series The RA-1000 Series of remote annunciators are units with electrical modules and enclosures matching the configurations of the FA-1000 Series Fire Alarm Control Panels. For detailed information see Mircom Documents RA-1000 Manual LT-617, RAM-208 Manual LT-648, RAM- 216 Manual LT-658 and MGD-32 Manual LT-847.

  • Page 75: Appendix C: Specifications

    Appendix C: Specifications 13.0 Appendix C: Specifications 13.1 MCC-1024-6[SA] and MCC-1024-6ADS Specifications Table 15 MCC-1024-6[SA] and MCC-1024-6ADS Specifications MCC-1024-6[SA] and MCC-1024-6ADS Chassis General Micro-controller based design, fully configurable from front panel, full walk test function. Up to two circuit adder modules may be added. Displays and disconnect switches for up to 24 circuits.
  • Page 76 Table 15 MCC-1024-6[SA] and MCC-1024-6ADS Specifications (Continued) MCC-1024-6[SA] and MCC-1024-6ADS Chassis Compliance System Model FA-1000 Series Fire Alarm Control Panel System Type Local, auxiliary (using PR-300), remote protected premises station (using PR-300 or UDACT-300A), central station protected premises (using UDACT- 300A).

  • Page 77: Mcc-1024-12Sa And Mcc-1024-12Ads Specifications

    Appendix C: Specifications 13.2 MCC-1024-12SA and MCC-1024-12ADS Specifications Table 16 MCC-1024-12[SA] and MCC-1024-12ADS Specifications MCC-1024-12[SA] and MCC-1024-12ADS Chassis General Micro-controller based design, fully configurable from front panel, full walk test function. Up to two circuit adder modules may be added. Displays and disconnect switches for up to 24 circuits.

  • Page 78: Fa-1000 Expander Chassis And System Modules

    Table 16 MCC-1024-12[SA] and MCC-1024-12ADS Specifications (Continued) MCC-1024-12[SA] and MCC-1024-12ADS Chassis Compliance System Model FA-1000 Series Fire Alarm Control Panel System Type Local, auxiliary (using PR-300), remote protected premises station (using PR-300 or UDACT-300A), central station protected premises (using UDACT- 300A).
  • Page 79 Appendix C: Specifications Table 17 FA-1000 Expander Chassis and System Modules (Continued) FA-1000 System Modules and Annunciators PR-300 Polarity Reversal and City Tie Module Supervised city tie--not power limited 24VDC unfiltered, 210 mA max., Trip coil: 14 ohms. Terminals are labelled "City Tie". Polarity reversal power limited Terminals are labelled "Polarity Reversal".

  • Page 80: Appendix D: Power Supply And Battery Calculations

    Appendix D: Power Supply and Battery Calculations 14.0 Appendix D: Power Supply and Battery Calculations Use the form below to determine the required main chassis and secondary power supply (batteries). IMPORTANT NOTICEIMPORTANT NOTICE The main AC branch circuit connection for Fire Alarm Control Unit must provide a dedicated continuous power without provision of any disconnect devices.

  • Page 81: Warranty & Warning Information

    Warranty & Warning Information 15.0 Warranty & Warning Information Warning Please Read Carefully Note to End Users: This equipment is subject to terms and conditions of sale as follows: Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system.
  • Page 82 Warranty & Warning Information alarm initiating device, such as when the fire is in a chimney, walls or roofs, or on the other side of closed doors; and, smoke and heat detectors may not detect smoke or heat from fires on another level of the residence or building.
  • Page 83 Limited Warranty Mircom Technologies Ltd., MGC Systems Corp. and MGC System International Ltd. together with their subsidiaries and affiliates (collectively, MGC) warrants the original purchaser that for a period of three years from the date of shipment, proprietary manufactured product shall be free of defects in materials and workmanship, under normal use.
  • Page 84 Warranty & Warning Information Note: MGC’s liability for failure to repair the product under this warranty after a reasonable number of attempts will be limited to a replacement of the product, as the exclusive remedy for breach of warranty. Disclaimer of Warranties This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose) and of all other obligations or liabilities.
  • Page 88 CANADA - Main Office U.S.A TECHNICAL SUPPORT © Mircom 2016 25 Interchange Way 4575 Witmer Industrial Estates North America Printed in Canada Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: (888) Mircom5 Subject to change without prior notice Tel: (888) 660-4655...
