Figure 21 Power Supply Connection - Mircom FR-320 Series Installation And Operation Manual

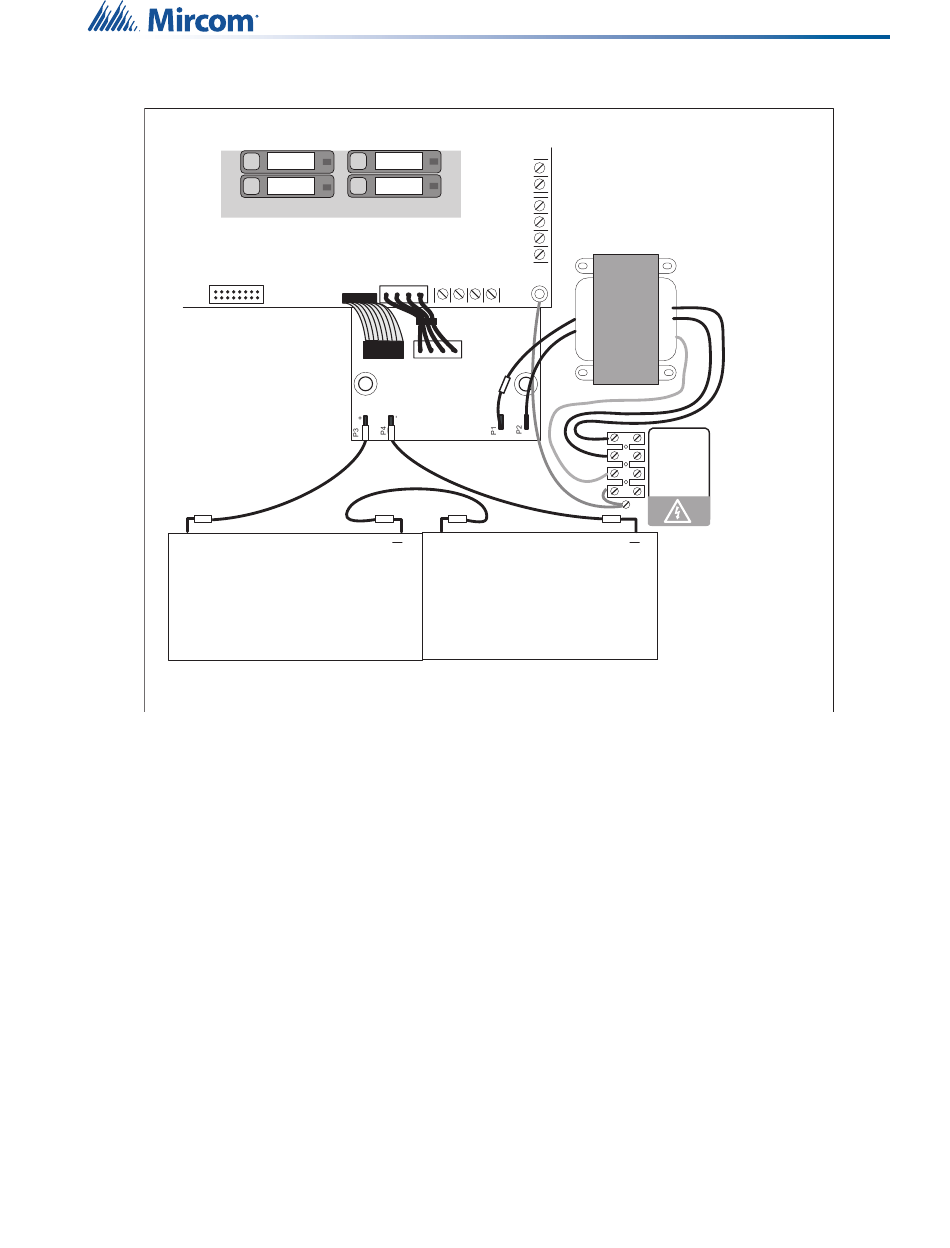

Wire the power supply as shown below using the proper wire gauge.
Deluge Panel Control Board
ALM/SUP/TBL/
BLDG AUDIBLE SIL
SPARE
P2
Power Supply Control Board
red
+
BATTERY
NOTE: TO PREVENT SPARKING, CONNECT BATTERIES AFTER THE
SYSTEM MAIN A.C. POWER IS TURNED ON

Figure 21 Power supply connection

RAC1
(ZONE 3)
RAC2
(ZONE 4)
P1
blue
P6 P5
10A
slow blow
BATTERY
green
red
+
BATTERY
red
brown
240 VAC 50Hz
blk
120 VAC 60Hz
blue on
white
N
GND
blk
