Configure Tera Term
1. Start the Tera Term application.
The New connection window appears.

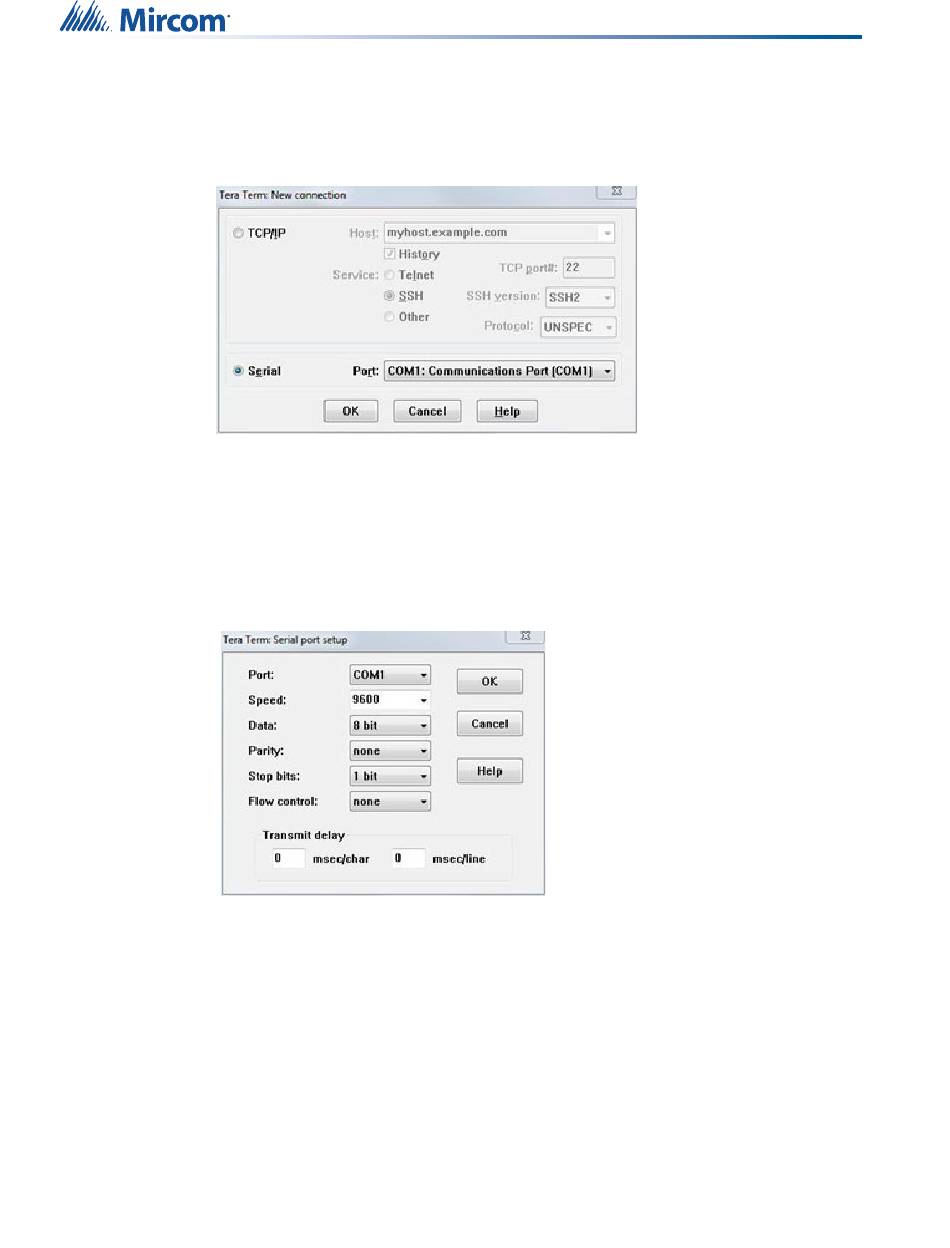

Figure 28 Tera Term New connection

2. Select Serial.
3. In the Port menu, select the COM port that the USB cable is using.
4. Click OK.
5. Click Setup, and then click Serial port.
The Serial Port Setup window appears.

Figure 29 Tera Term Serial port setup

6. Select the correct COM port.
7. Select 9600 as the Speed.
8. Click OK.
Print the alarm log or general log
1. On the CFG-300 display, access the Menu and select Print Event Log.
2. Select Alarm Log or General Log, then press the Enter key.
