Mircom FA-300-3DR Installation Instructions

Mechanical Installation for the FX-350, FA-300 and FR-320 Series Backboxes
and Chassis
All the FX-350, FA-300 Series Fire Alarm Panels including the FR-320 Series have a new chassis. See the following dia-
grams; Figure 1 for the small panel versions of all the series and Figure 2 for the larger panel version of the FX-350 and
FA-300 series.

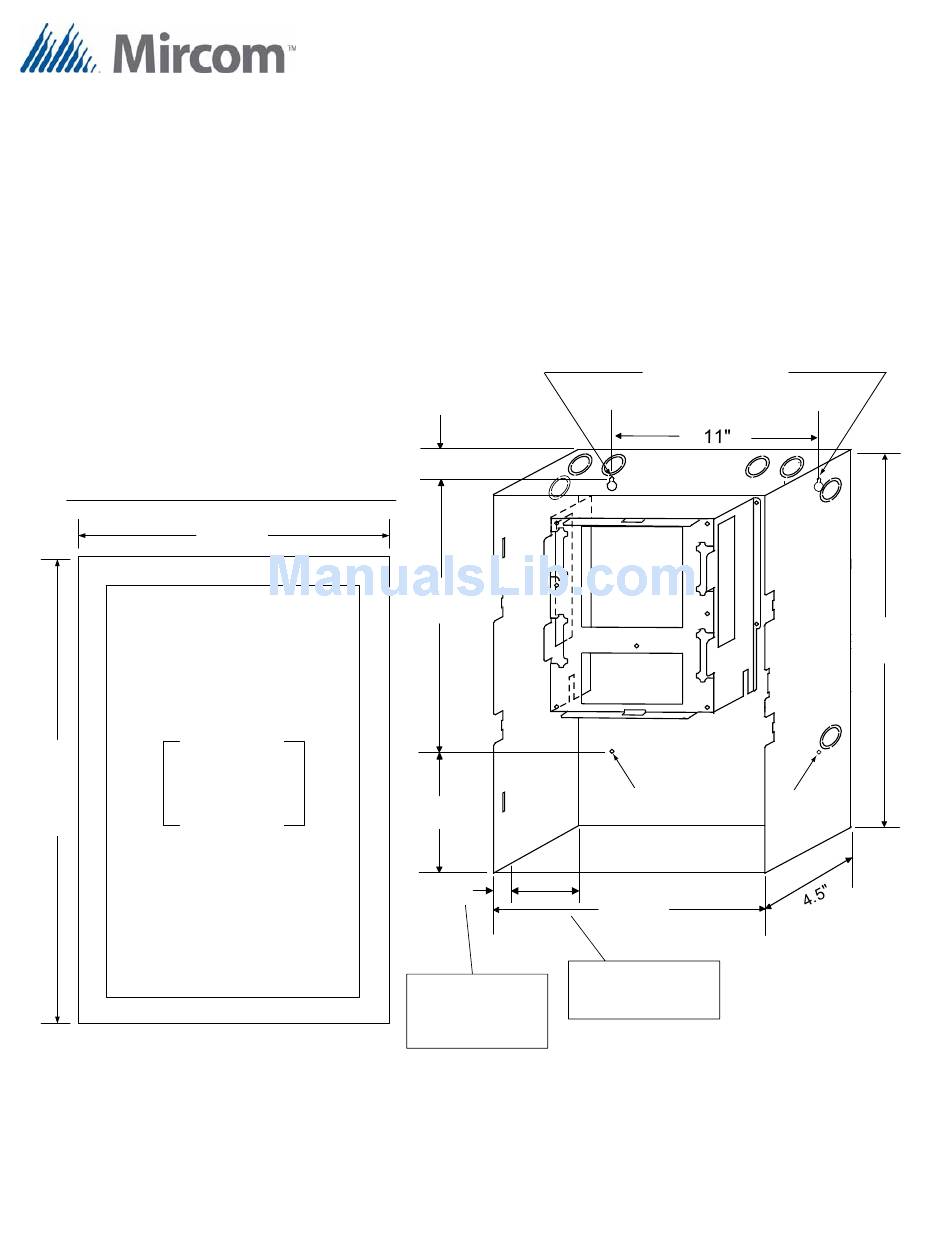

Figure 1: Backbox and Trim Ring Dimensions for Models FA-300-3DR/-3DDR,
FA-300-6DDR, FX-350-60-DR and FR-320-R/-W, FR-320-DR/-DW
PLACE FA-300-TRB TRIM RING OVER BACKBOX
Adhere trim ring to
wall surface around
22.5"
the FA-300 or FR-320
17"
backbox.
FX-350, FA-300 and FR-320 Series
1.5"
14.5"
4.0"
3.5"
1"
3.5" is the maximum depth
1" is the minimum depth
for semi-flush mounting
above the wall required
using the flush trim ring
for semi-flush mounting
using the flush trim ring
LT- 1087 Rev. 0
Addendum for New Chassis

Installation Instructions

Mounting Holes for
Surface Mounting
Mounting Holes for
Surface Mounting
14.5"
Nov 2010 Page 1 of 2
20.0"
