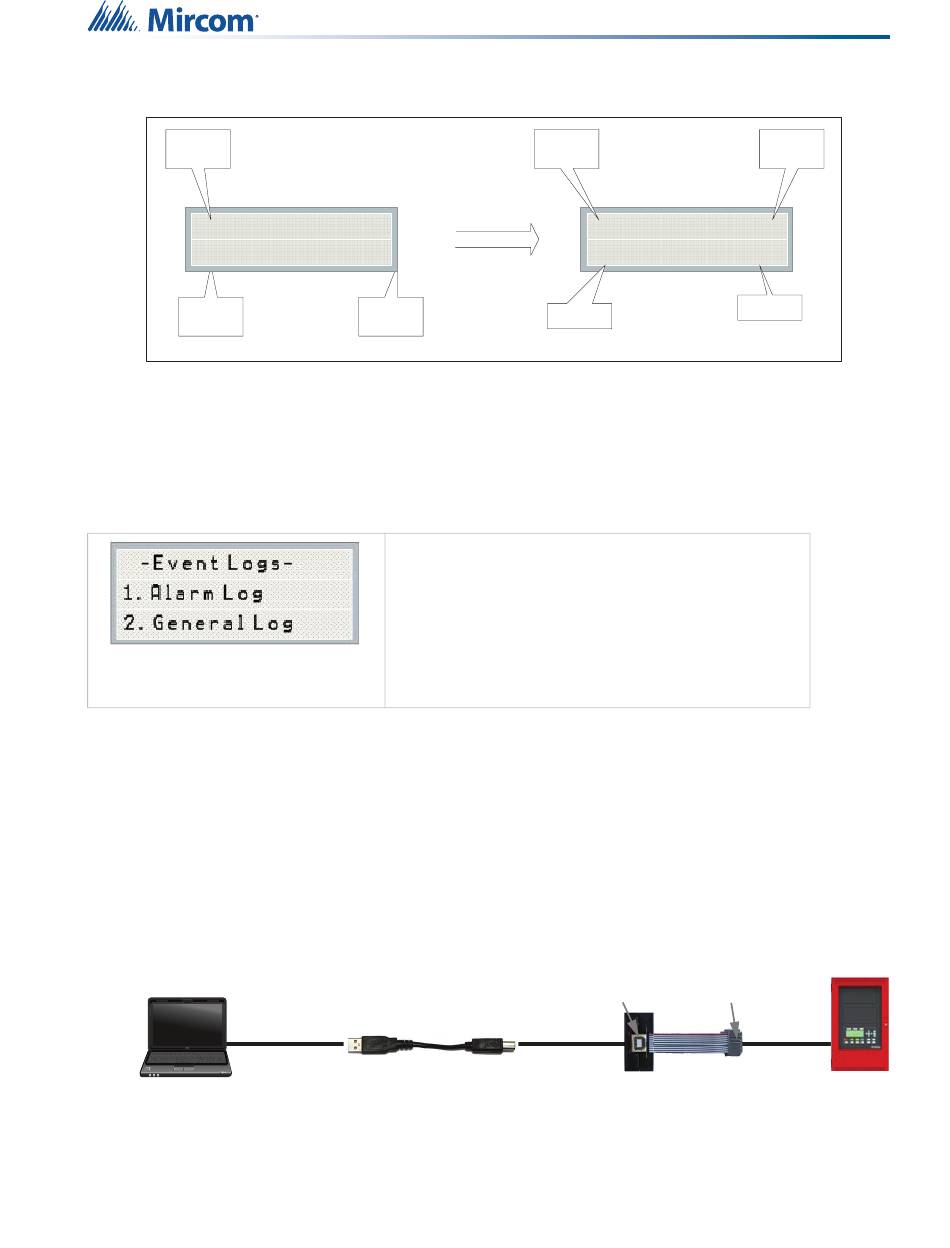

Print Event Log; Figure 26 Event Log; Figure 27 Connect The Computer To The P7 Connector On The Main Fr-320 Board - Mircom FR-320 Series Installation And Operation Manual

the "INFO" key works and shows the CFG-300 LCD Configuration tool display.
ZONE
Message
Zone-1
OPEN TRB
EVENT
type

Figure 26 Event log

There are a maximum of 200 recent events saved in the event log. If the number of events
goes beyond 200, the oldest event is overwritten by the most recent one.
9.9

5. Print Event Log

Select the type of log to print. Press the
"ENTER" key. The system will then print
the requested log
9.9.1 Print the alarm log
You need:
• Windows 7, 10 or 11
• Tera Term software application
• Mircom's MGC-CONFIG-KIT4
Connect the computer to FR-320
• Connect the computer to the P7 connector on the main FR-320 board.
Computer

Figure 27 Connect the computer to the P7 connector on the main FR-320 board

"INFO" Key
01/09
EVENT
01 of 09
Use this function to print the Alarm or General log.
USB A to B male cable
Process
Type
NVERIF ALARM
11:45 THU 2005-3-31
DATE
USB connector 10 pin connector
UIMA4 interface
Physical
Zone No.
Z-01
TIME
FACP
55
