Installing The Adder Modules; Figure 5 Installation Of Adder Modules - Mircom FR-320 Series Installation And Operation Manual

5.3

Installing the Adder Modules

The FR-320 Series panel comes pre-assembled with all components and boards except for
adder modules. Module installation locations are shown below. Refer to Figure 6 on the next
page for Jumper or DIP Switch settings and see 7.8 Wiring Tables and Information on page 35
for wiring specifications.
JW1
TO PR-300 MO DULE
Reverse polarity and city
tie module PR-300.
Mounted on hex spacer
with two screws provided

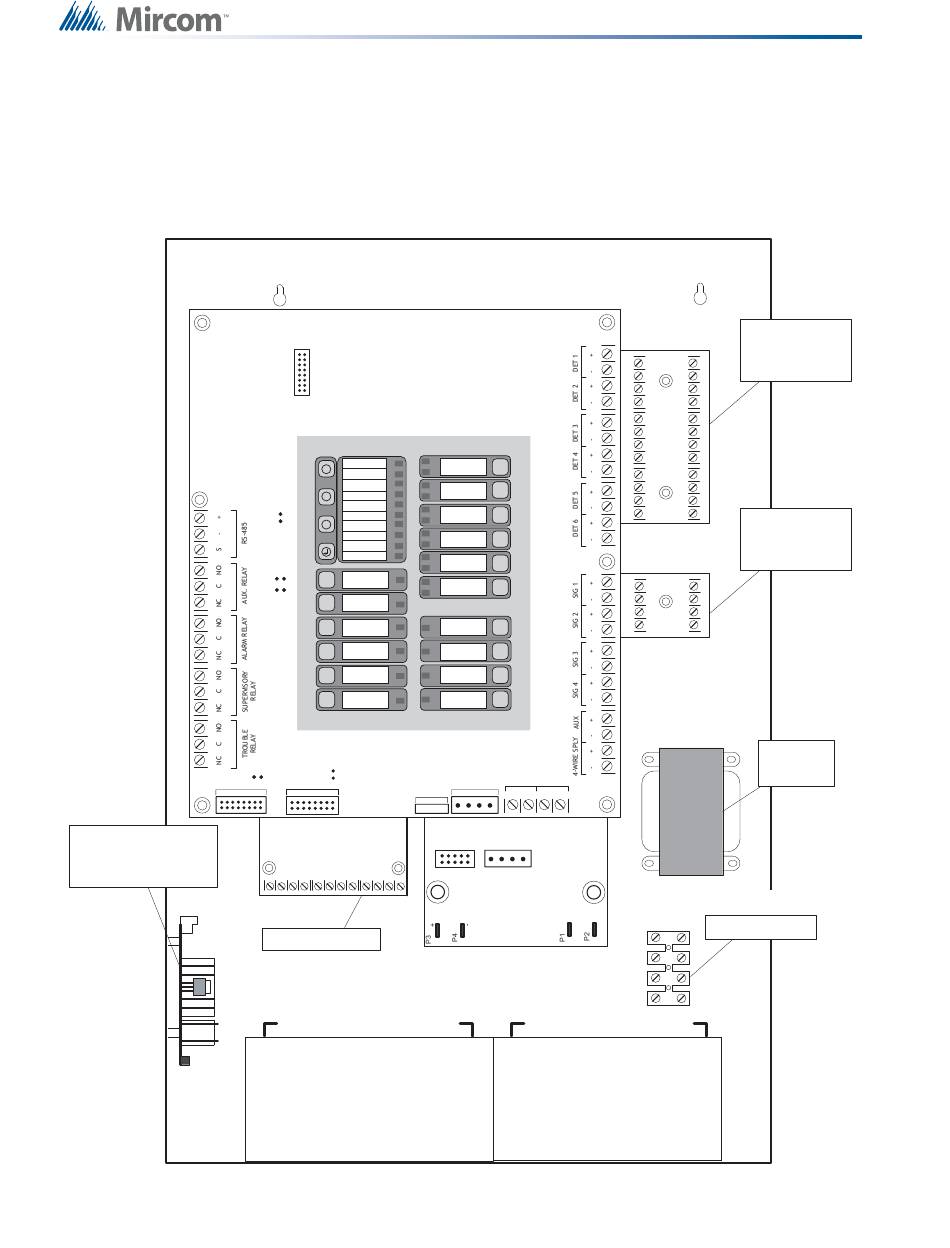

Figure 5
22
AC ON
X
COMMON ALARM
COMMON SUPV
M COMMON TROUBLE
BATTERY TROUBLE
JW4
REMOTE TROUBLE
?
GROUND FAULT
CPU FAIL
ABORT
JW7
RELEASED
SYSTEM
JW5
RESET
JW6
SIGNAL
SILENCE
AUXILIARY
DISCONNECT
LAMP
TEST
ALM/SUP/TBL/
BLDG AUDIBLE SIL
PRE
RELEASE
JW2
TO RM-306 RELAY MOD ULE
P6
Relay Module RM-306
BATTERY
Installation of Adder Modules
IAC1
(ZONE 1)
IAC2
(ZONE 2)
IAC3
(ZONE 3)
IAC4
(ZONE 4)
IAC5
(ZONE 5)
IAC6
(ZONE 1)
NAC1
(ZONE 1)
NAC2
(ZONE 2)
RAC1
(ZONE 3)
RAC2
(ZONE 4)
RTI PORT UNFLTD SPLY
POWER
SIGNAL
TRB TRL COM- COM+
P6 P5
SEC TX
BATTERY
BATTERY
Mechanical Installation
CLASS-A converter
board for detection
circuits ICAC-306 (6
circuits )
CLASS-A converter
board for indicating
circuits OCAC-302
(2 circuits )
Transformer
AC wiring terminal
