Alinx AC7010C User Manual page 9

development board is shown in Figure 3-1
Power input: The core board supply voltage is DC5V. When the core board
works alone, connect the USB cable to the USB port of the computer to supply
power to the core board. When working with carrier board together, the core
board can also
AC7010C/AC7020C core board is powered by the carrier board, remove the
0Ω resistor (R161) on the board. Please do not use other specifications of the
power supply to avoid damage to the core board.
the core board is as follows:
The development board is powered by +5V, and is converted into +1.5V,
+1.8V, +1.0V three-way power supply through three DC/DC power supply chip
TLV62130RGT. Each output current can be up to 3A. The 3.3V, VCCIO34 and
www.alinx.com
be powered through

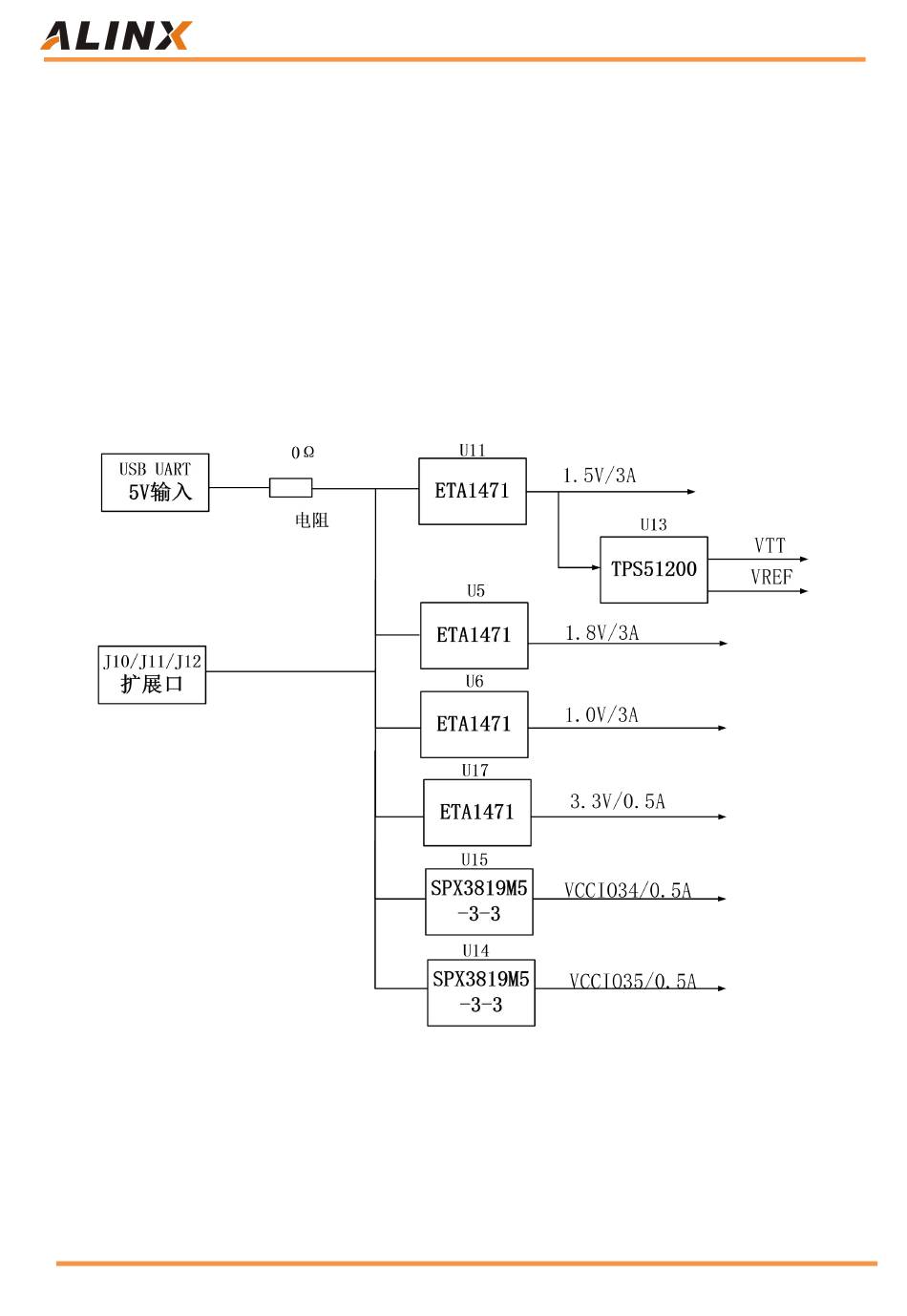

Figure 3-1: Power Supply Schematic
AC7010C / AC7020C User Manual
the carrier
The power supply design on
board. If the
9 / 40
