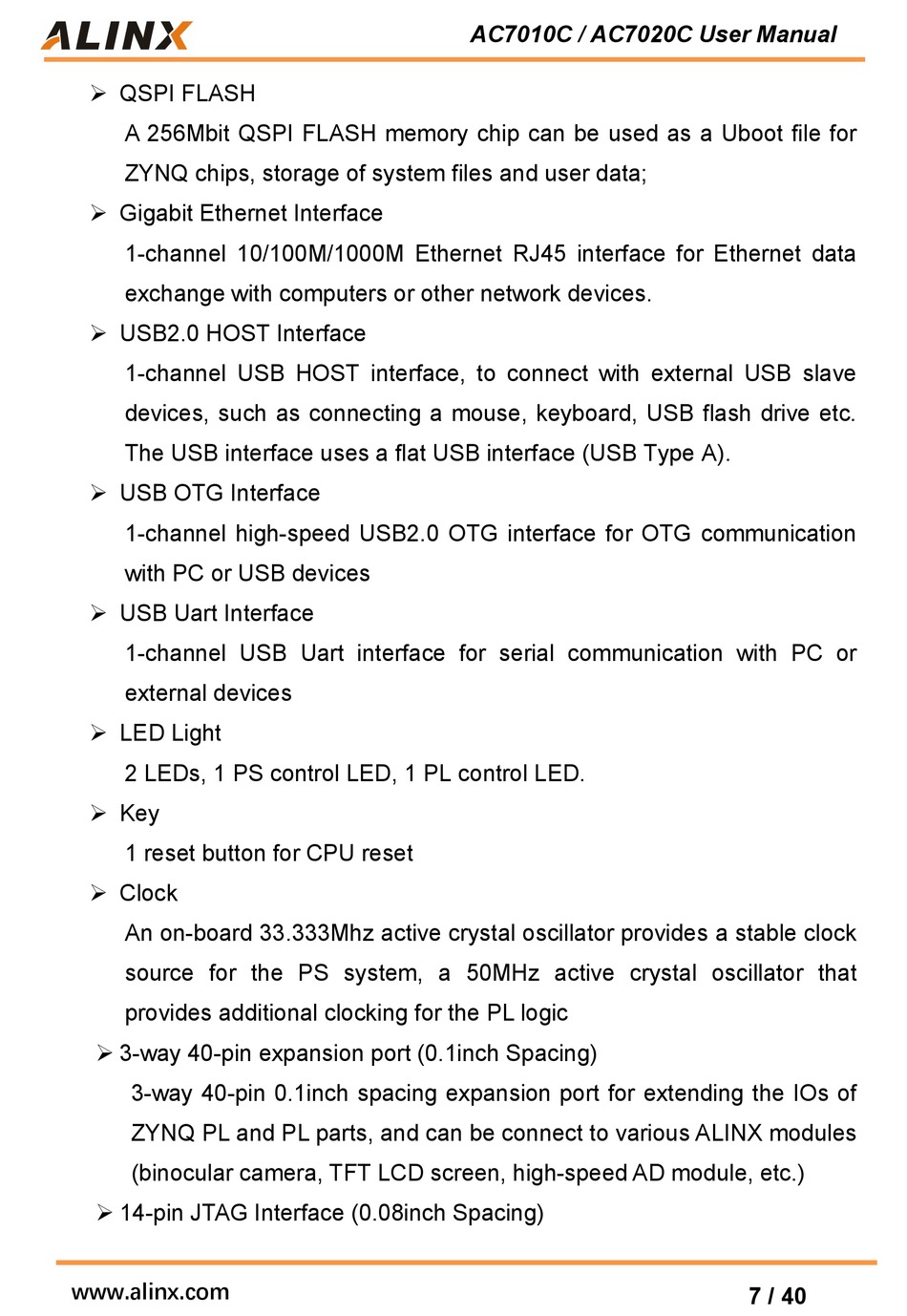

 QSPI FLASH
A 256Mbit QSPI FLASH memory chip can be used as a Uboot file for
ZYNQ chips, storage of system files and user data;
 Gigabit Ethernet Interface
1-channel 10/100M/1000M Ethernet RJ45 interface for Ethernet data
exchange with computers or other network devices.
 USB2.0 HOST Interface
1-channel USB HOST interface, to connect with external USB slave
devices, such as connecting a mouse, keyboard, USB flash drive etc.
The USB interface uses a flat USB interface (USB Type A).
 USB OTG Interface
1-channel high-speed USB2.0 OTG interface for OTG communication
with PC or USB devices
 USB Uart Interface
1-channel USB Uart interface for serial communication with PC or
external devices
 LED Light
2 LEDs, 1 PS control LED, 1 PL control LED.
 Key
1 reset button for CPU reset
 Clock
An on-board 33.333Mhz active crystal oscillator provides a stable clock
source for the PS system, a 50MHz active crystal oscillator that
provides additional clocking for the PL logic
 3-way 40-pin expansion port (0.1inch Spacing)
3-way 40-pin 0.1inch spacing expansion port for extending the IOs of
ZYNQ PL and PL parts, and can be connect to various ALINX modules
(binocular camera, TFT LCD screen, high-speed AD module, etc.)
 14-pin JTAG Interface (0.08inch Spacing)
