AC7010C / AC7020C User Manual
Figure 6-12: Zynq-7000 and LED connection diagram

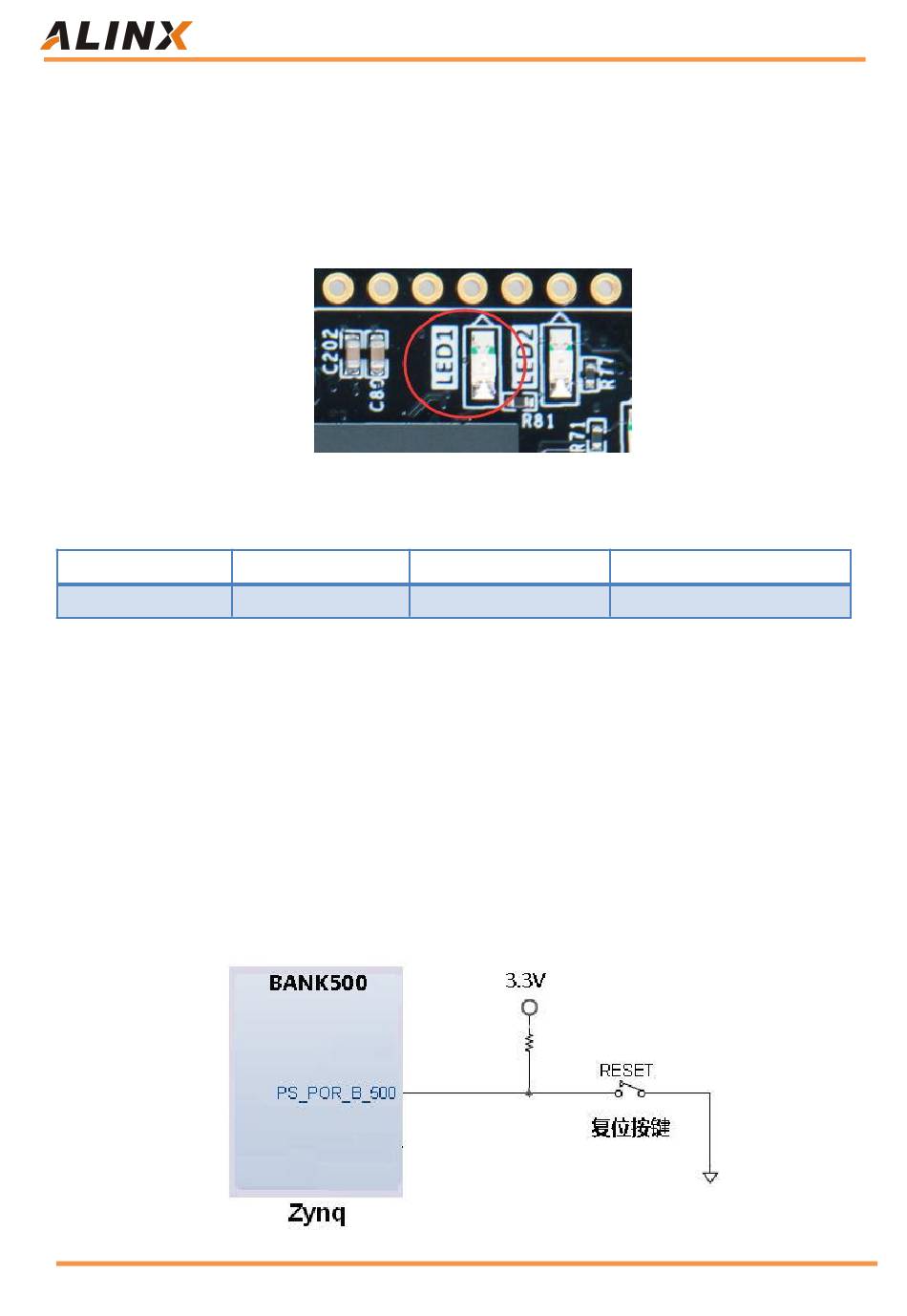

Figure 6-13: PS User LEDs on the FPGA Core Board
PS User LEDs pin assignment:
Signal Name ZYNQ Pin Name ZYNQ Pin Number Description
MIO0_LED PS_MIO0_500 E6 PS User LED LED1

Part 6.8: Reset Key

On the AC7010C/AC7020C core board, the entire ZYNQ system is reset
by a RESET key, and the reset signal is connected to the PS pin's reset pin
PS_POR_B_500. The user can use this user key to manually reset. In the
design, when the reset key is pressed, the reset signal is low, and the ZYNQ
chip is reset. When the key is released, the ZYNQ chip starts to work normally.
Figure 6-16 shows the reset key connection:
www.alinx.com
30 / 40
