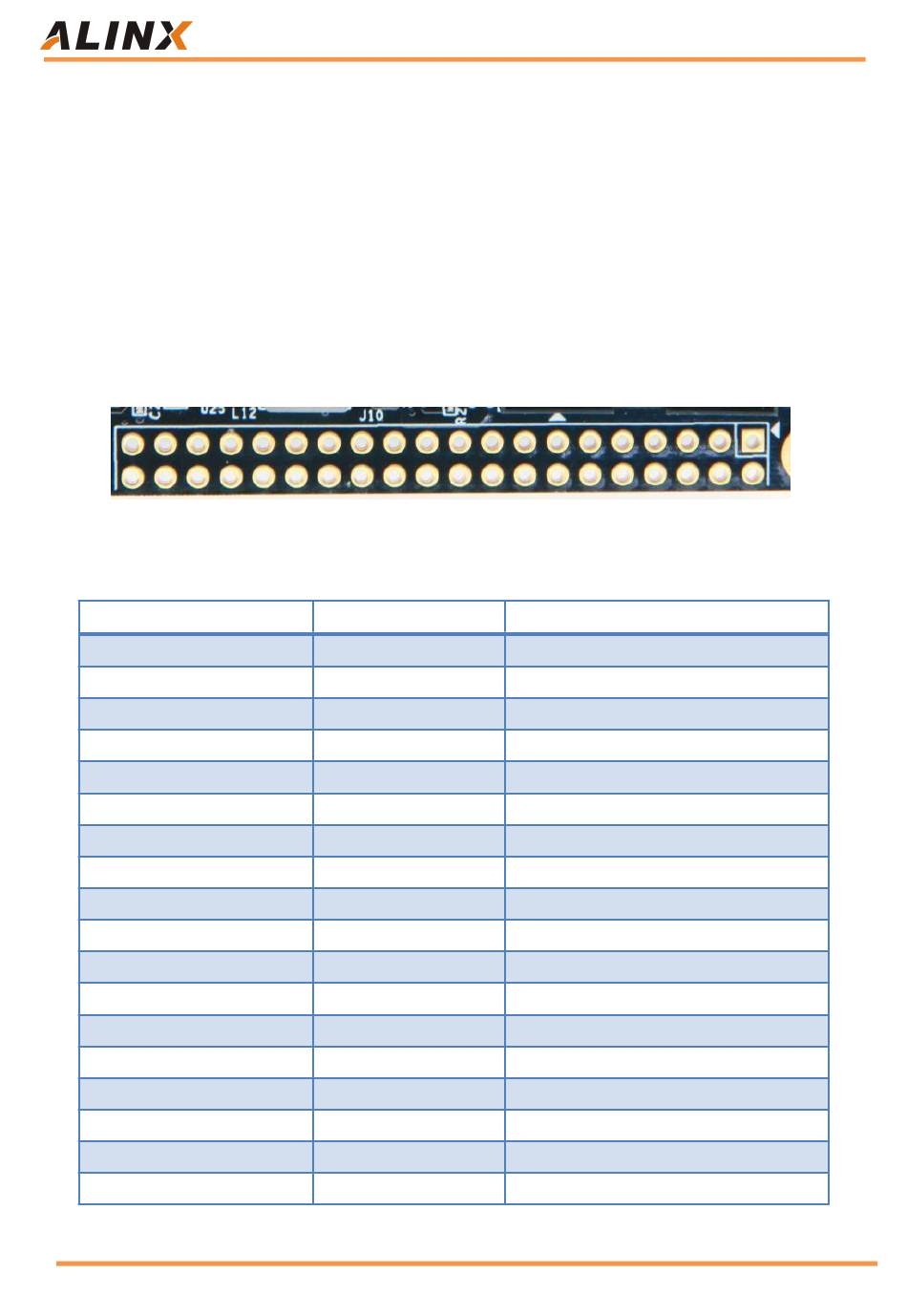

Figure 7-4: Expansion header J10 on the FPGA Board
J10 Expansion Header Pin Assignment
J10 Pin
PIN1
PIN2
PIN3
PIN4
PIN5
PIN6
PIN7
PIN8
PIN9
PIN10
PIN11
PIN12
PIN13
PIN14
PIN15
PIN16
PIN17
PIN18
www.alinx.com
Figure 7-3: Expansion header J10 schematic
Signal Name
GND
+5V
IO34_L14N
IO34_L14P
IO34_L9N
IO34_L9P
IO34_L13P
IO34_L13N
IO34_L7P
IO34_L7N
IO34_L10N
IO34_L10P
IO34_L8P
IO34_L8N
IO34_L11P
IO34_L11N
IO34_L6P
IO34_L6N
AC7010C / AC7020C User Manual
ZYNQ Pin Number
-
-
P20
N20
U17
T16
N18
P19
Y16
Y17
W15
V15
W14
Y14
U14
U15
P14
R14
