Used to debug and download the ZYNQ system
 Micro SD card holder
1-channel Micro SD card holder, to insert SD card for stores operating
system images and file systems.

Part 2: Dimensional structure

The size of the development board is 2.95 inch x 2.52 inch, and the PCB is
designed with an 8-layer board. There are 4 screw positioning holes around the
board for fixing the development board. The holes diameter of the positioning
hole is 0.09 inch, and the dxf structure diagram is provided in the documents.

Part 3: Power Supply

The power input voltage of the development board is DC5V, The
schematic diagram of the power supply design on the AX7010 FPGA
www.alinx.com

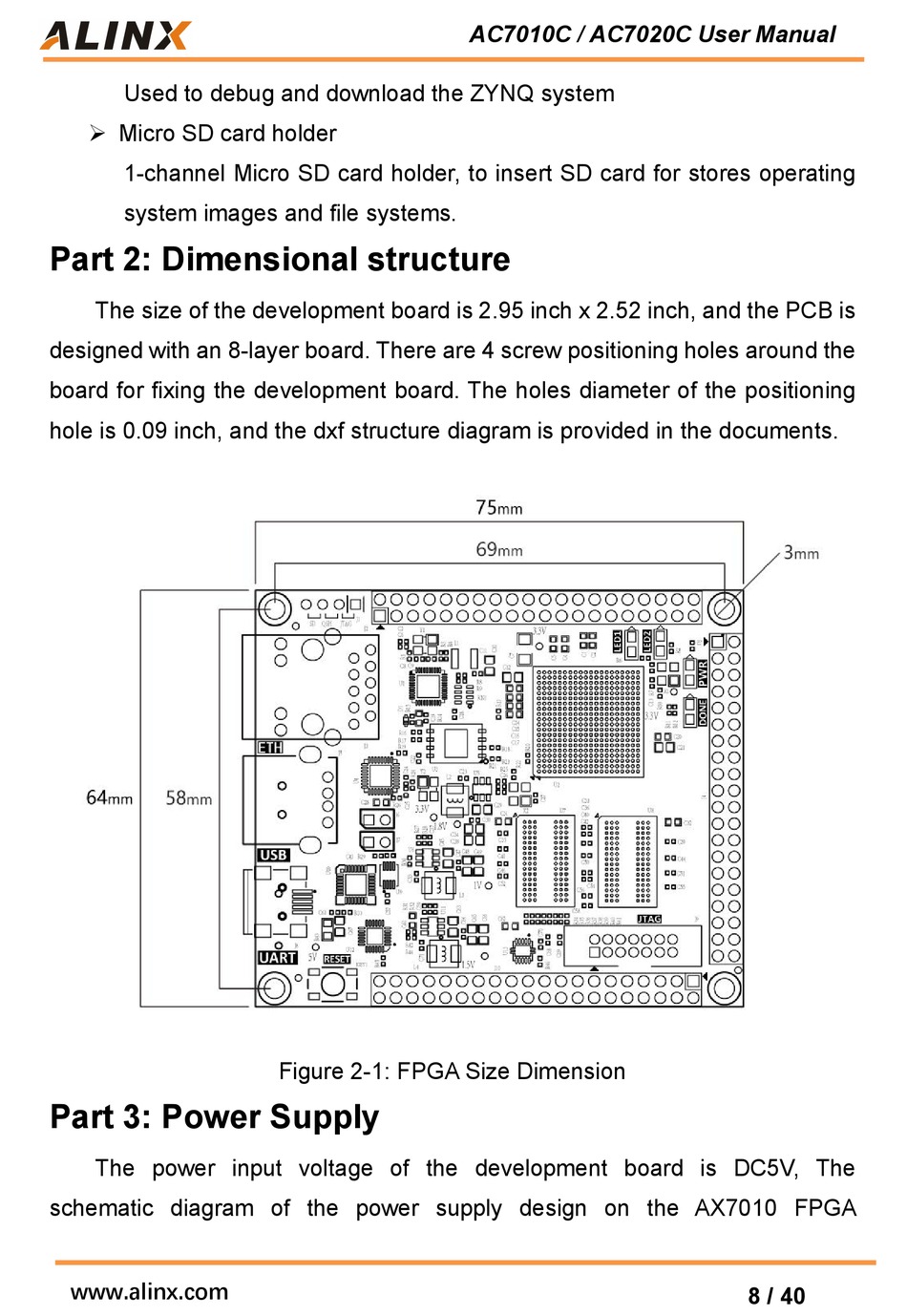

Figure 2-1: FPGA Size Dimension
